Field oF view (SvS)
The PFD field of view can be represented on the Navigation Map Page. Two dashed lines forming a V-shape
in front of the aircraft symbol on the map, represent the forward viewing area shown on the PFD.

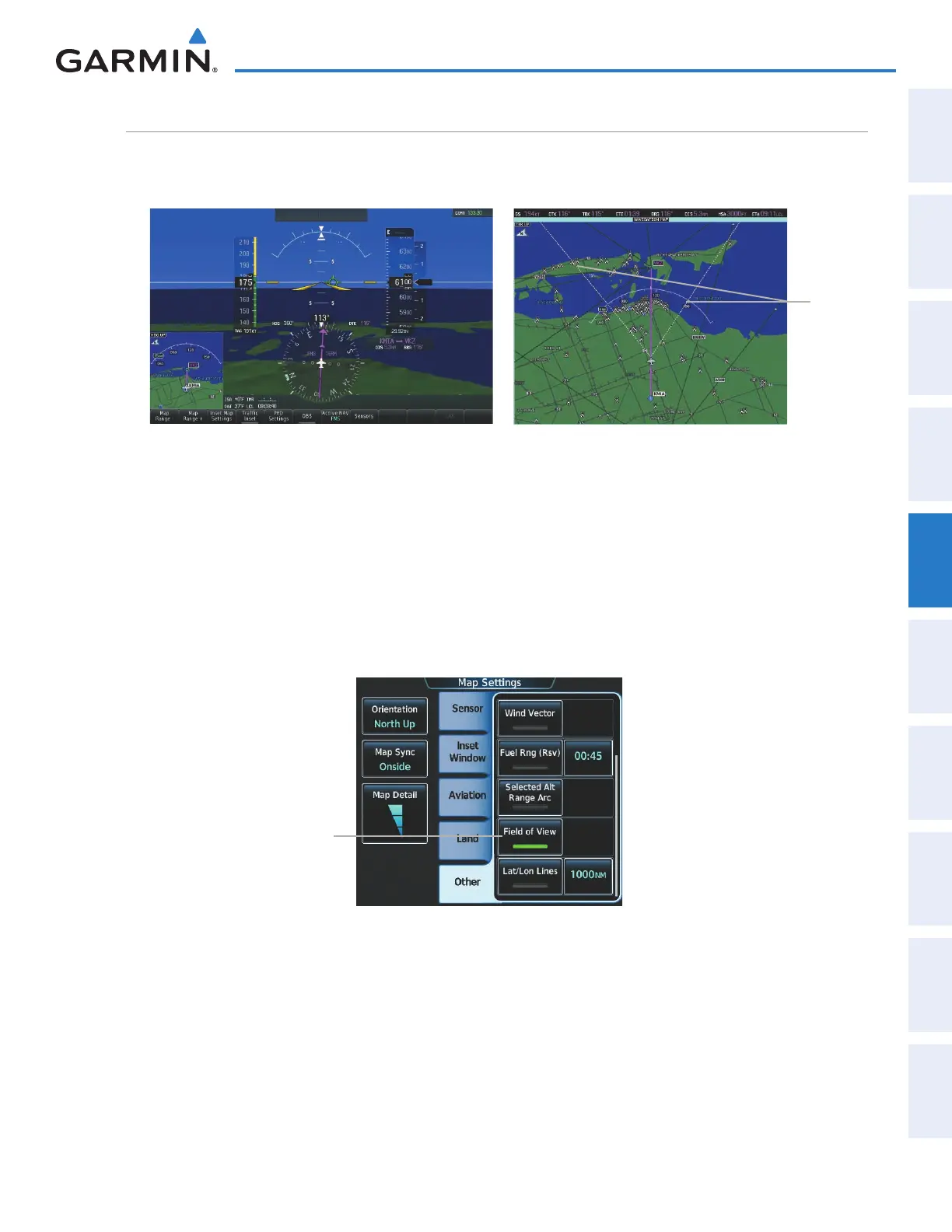

Figure 5-29 PFD and Navigation Map Field of View Comparison
Lines
Depict
PFD Field
of View
SVT View on the PFD
Field of View on the MFD
Displaying/removing the field of view:
1) From Home, touch Map > Map Settings.
2) Touch the Other Tab, if necessary.
3) Scroll to display the Field of View Button.
4) Touch the Field of View Button to display/remove the field of view.
Field of
View
Button
Figure 5-30 Map Settings Screen - Field of View Setup
