3.1 eiS diSplay
note: When engine speed is less than 500 rpm, no warning occurs for manifold pressure and oil pressure
values outside the acceptable operating range.

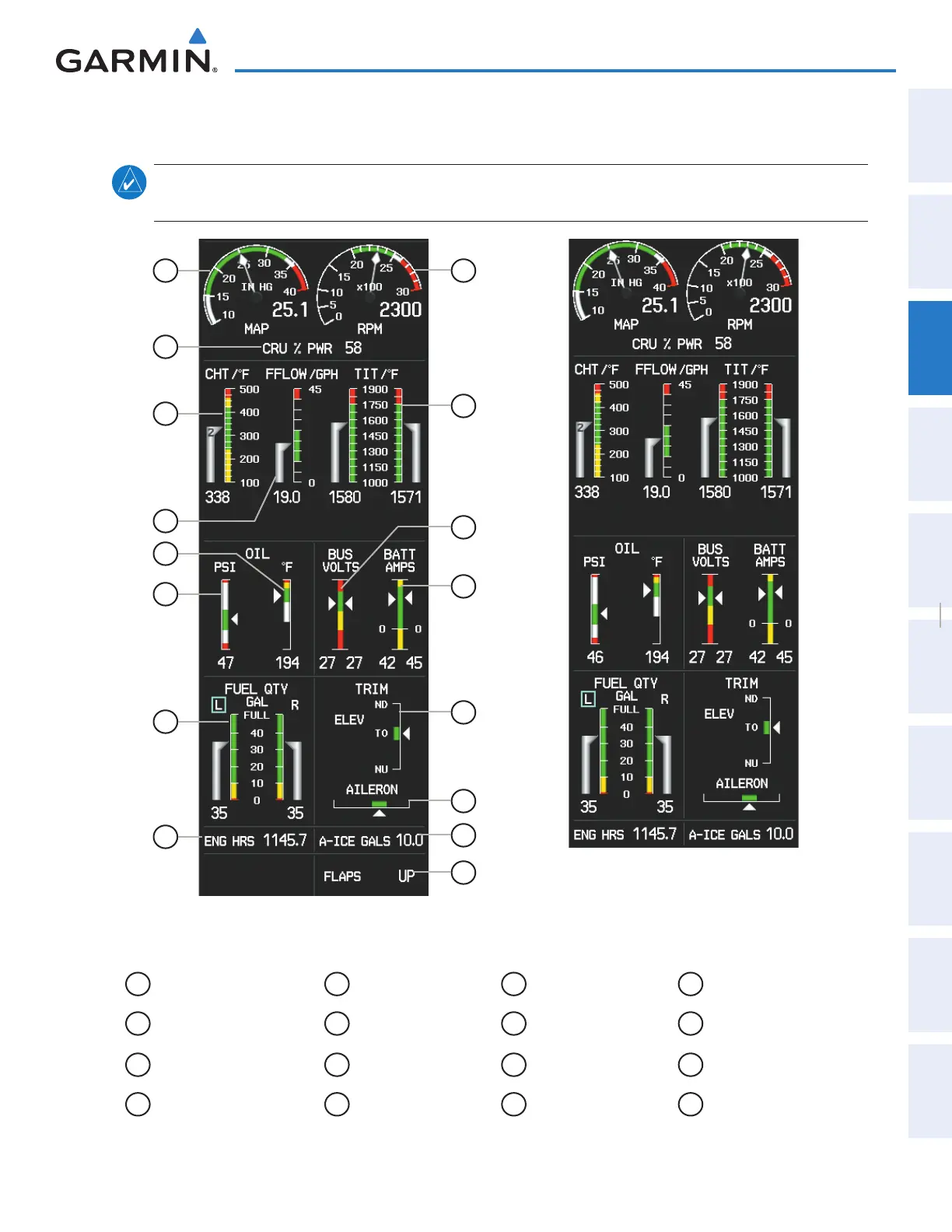

Figure 3-5 EIS Display (Reversionary Mode)
Figure 3-4 EIS Display (Normal Mode)
1
2
3
4
6
7
8
9
10
11
12
13
14
15
16
5
1
Manifold Pressure
5
Oil Temperature
9
Tachometer
13
Elevator Trim
2
Cruise Power Display
6
Oil Pressure
10
Turbo Inlet
Temperature
14
Aileron Trim
3
Cylinder Head Temperature
7
Fuel Quantity/Tank
Selection
11
Dual Voltmeter
15
Anti-Ice Fluid Quantity
(Optional)
4
Fuel Flow
8
Engine Hours Display
12
Dual Ammeter
16
Flaps Position Indicator
