engine indication SyStem
SyStem
oVerVieW
fligHt
inStrUmentS
eiS
aUdio panel
& cnS
fligHt
management
HaZard
aVoidance
afcS
additional
featUreS
appendiceS indeX

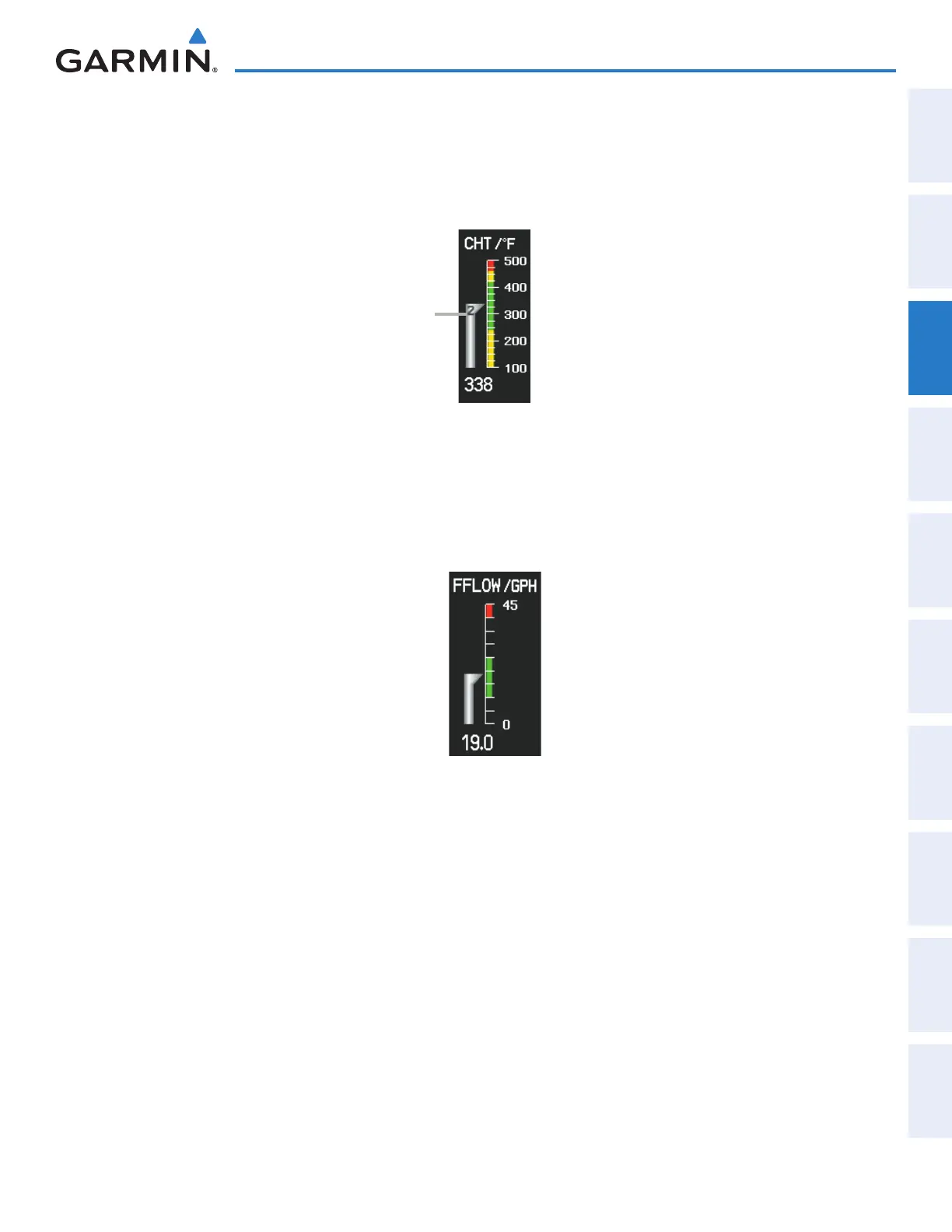

CHT GAUGE
The Cylinder Head Temperature (CHT) Gauge displays the temperature of the hottest cylinder in degrees
Fahrenheit. A number inside the gauge pointer indicates the corresponding cylinder number for which CHT
is currently displayed.
Figure 3-9 Cylinder Head
Temperature Gauge
Number
identifi es
hottest
cylinder
FUEL FLOW GAUGE
The Fuel Flow Gauge displays the fuel fl ow rate in gallons per hour (GPH) from zero to 45.
Figure 3-10 Fuel Flow Gauge
