Garmin G2000 Pilot’s Guide for the Cessna T240
190-01263-01 Rev. A
342
Hazard avoidance
SYSTeM
overvieW
FLiGHT
inSTrUMenTS
eiS
aUdio & cnS
FLiGHT
ManaGeMenT
Hazard
avoidance
aFcS
addiTionaL
FeaTUreS
aPPendiceSindeX
The SiriusXM Settings Screen on the Touchscreen Controller can display a legend for each weather product
currently enabled on the SiriusXM Weather Pane.
Viewing legends for weather products enabled on the SiriusXM Weather Pane:
1) From Home, touch Weather > Weather Selection > SiriusXM Weather > SiriusXM Settings.
2) Touch the Legend Button. The Weather Legends Window appears on the Touchscreen Controller.
3) Scroll as needed to view the weather legends in the Weather Legends Window, then touch Back or Home.
The system displays additional information about the following weather products by panning over the product
on the map with the map pointer.
• Echo Tops
• Storm Cell Movement
• SIGMETs
• AIRMETs
• METARs
• County Warnings
• TFRs
• PIREPSs
• AIREPs
To enable the Map Pointer for panning, press the Joystick, then move the Joystick to position the Map
Pointer over the desired product. To stop panning, press the Joystick again, or touch the Back Button on the
Touchscreen Controller. Turn the Joystick clockwise to increase map range, counter-clockwise to decrease
map range. If the map range is adjusted while panning is enabled, the map is re-centered on the Map Pointer.

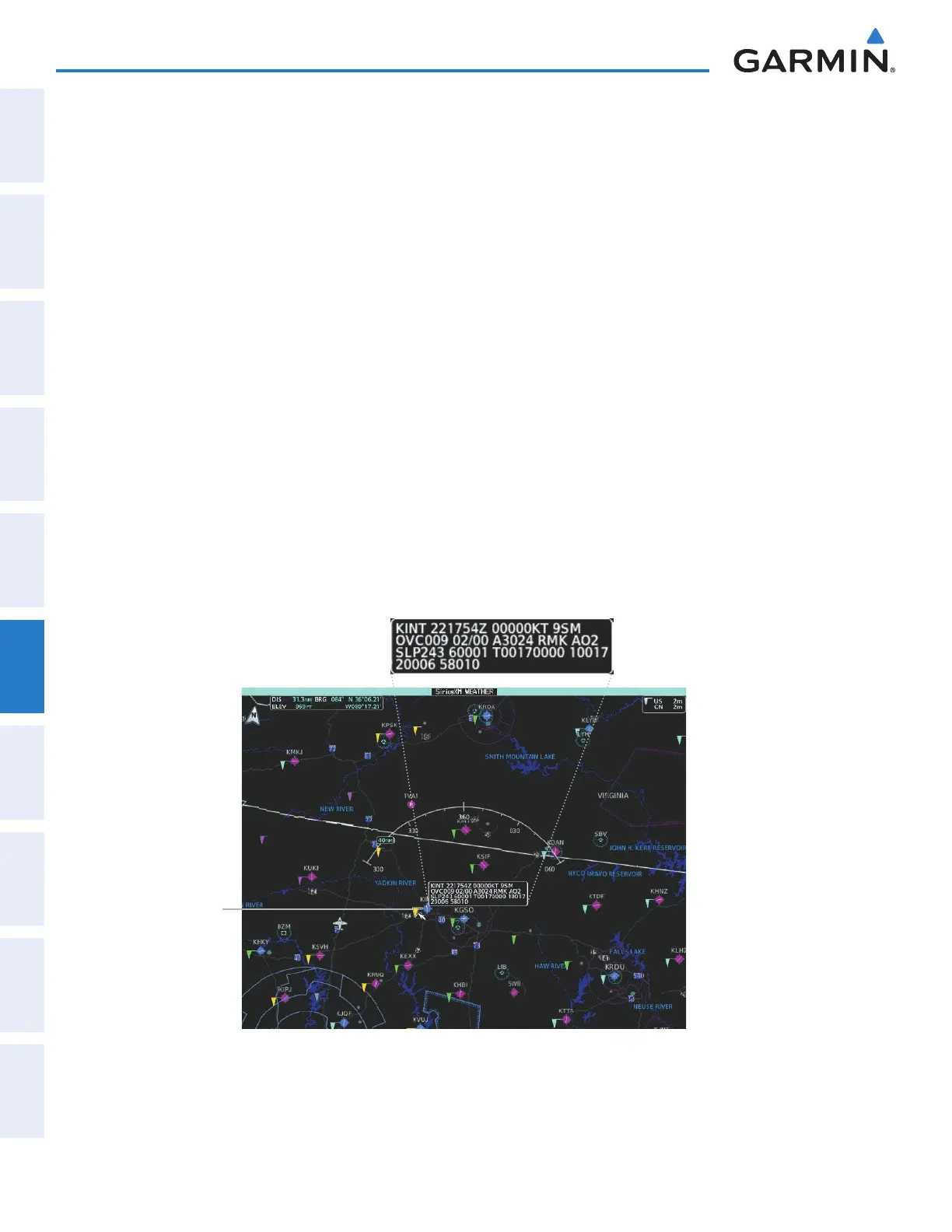

Figure 6-4 Panning on the SiriusXM Weather Pane
Airport with
METAR Flag
Selected with
Map Pointer
Original METAR Text
