Hazard avoidance
SYSTeM
overvieW
FLiGHT
inSTrUMenTS
eiS
aUdio & cnS
FLiGHT
ManaGeMenT
Hazard
avoidance
aFcS
addiTionaL
FeaTUreS
aPPendiceSindeX
0
100
200
300
400
500
600
700
800
0 5 10 15 20 25 30
Required Terrain Clearance (FT)
Level (FT) Descending (FT)

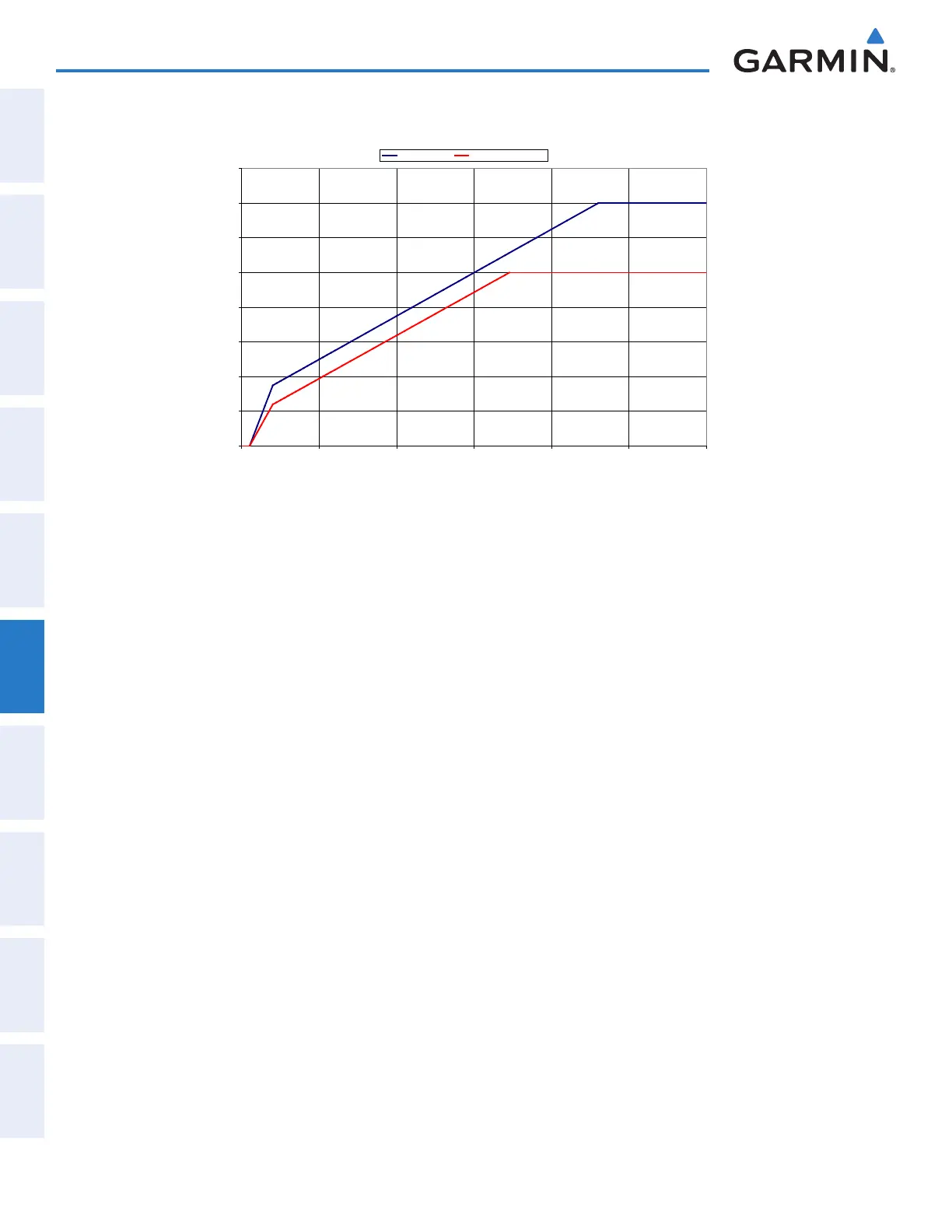

Figure 6-87 FLTA Alert Minimum Terrain and Obstacle Clearance Values
Distance From Runway (NM)
Required Clearance (FT)
The system automatically inhibits FLTA alerts when the aircraft is less than 200 feet above the destination
runway elevation while within 0.5 nm of the approach runway or the aircraft is between runway ends. When
Terrain SVT alerting is manually inhibited, the system displays the status annunciation ‘TER INH’ on the PFD
and in the lower-left corner of the Terrain SVT Pane
