190-01263-01 Rev. A
Garmin G2000 Pilot’s Guide for the Cessna T240
455
AutomAtic Flight control SyStem
SyStem
oVerVieW
Flight
inStrumentS
eiS
AuDio PAnel
& cnS
Flight
mAnAgement
hAZArD
AVoiDAnce
AFcS
ADDitionAl
FeAtureS
APPenDiceS inDeX
note: Some RNAV (FMS) approaches provide a vertical descent angle as an aid in flying a stabilized
approach. These approaches are NOT considered Approaches with Vertical Guidance (APV). Approaches
that are annunciated on the HSI as LNAV or LNAV+V are considered Nonprecision Approaches (NPA) and
are flown to an MDA even though vertical glidepath (GP) information may be provided.
WArning: When flying an LNAV approach (with vertical descent angle) with the autopilot coupled, the
aircraft will not level off at the MDA even if the MDA is set in the altitude preselect.
Upon reaching the glidepath, the flight director transitions to Glidepath Mode and begins to capture and
track the glidepath.

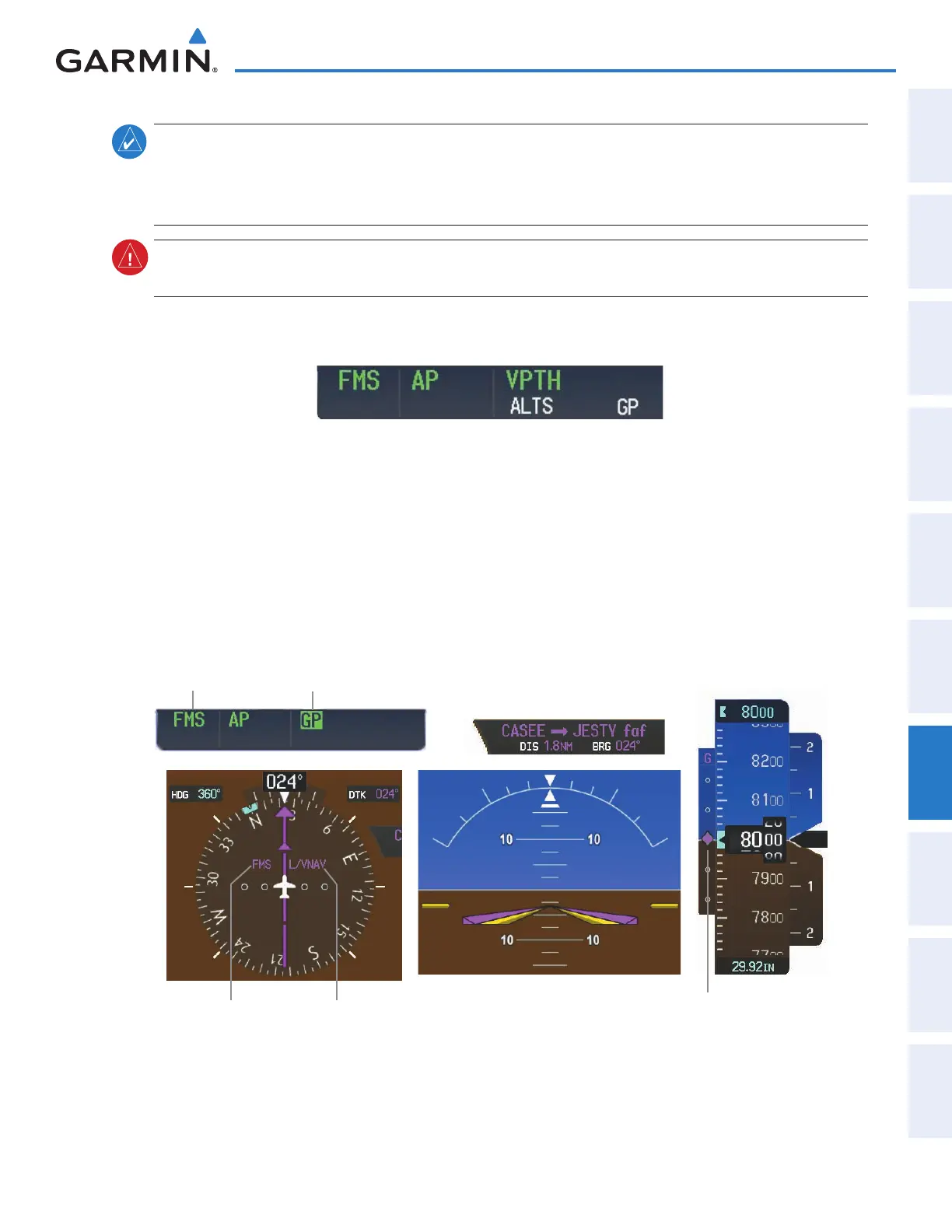

Figure 7-15 Glidepath Mode Armed
Once the following conditions have been met, the glidepath can be captured:
• A GPS approach with vertical guidance (LPV, LNAV/VNAV, LNAV+V) is loaded into the active flight plan.
• The active waypoint is at or after the final approach fix (FAF).
• Vertical deviation is valid.
• The CDI is at less than full scale deviation
• Automatic sequencing of waypoints has not been suspended (no ‘SUSP’ annunciation on the HSI)
Figure 7-16 Glidepath Mode
Command Bars Indicate
Descent on Glidepath
Glidepath
Mode Active
Glidepath
Indicator
LNAV/VNAV
Approach
Active
FMS is Selected
Navigation
Source
FMS Approach
Mode Active
