Appendix e

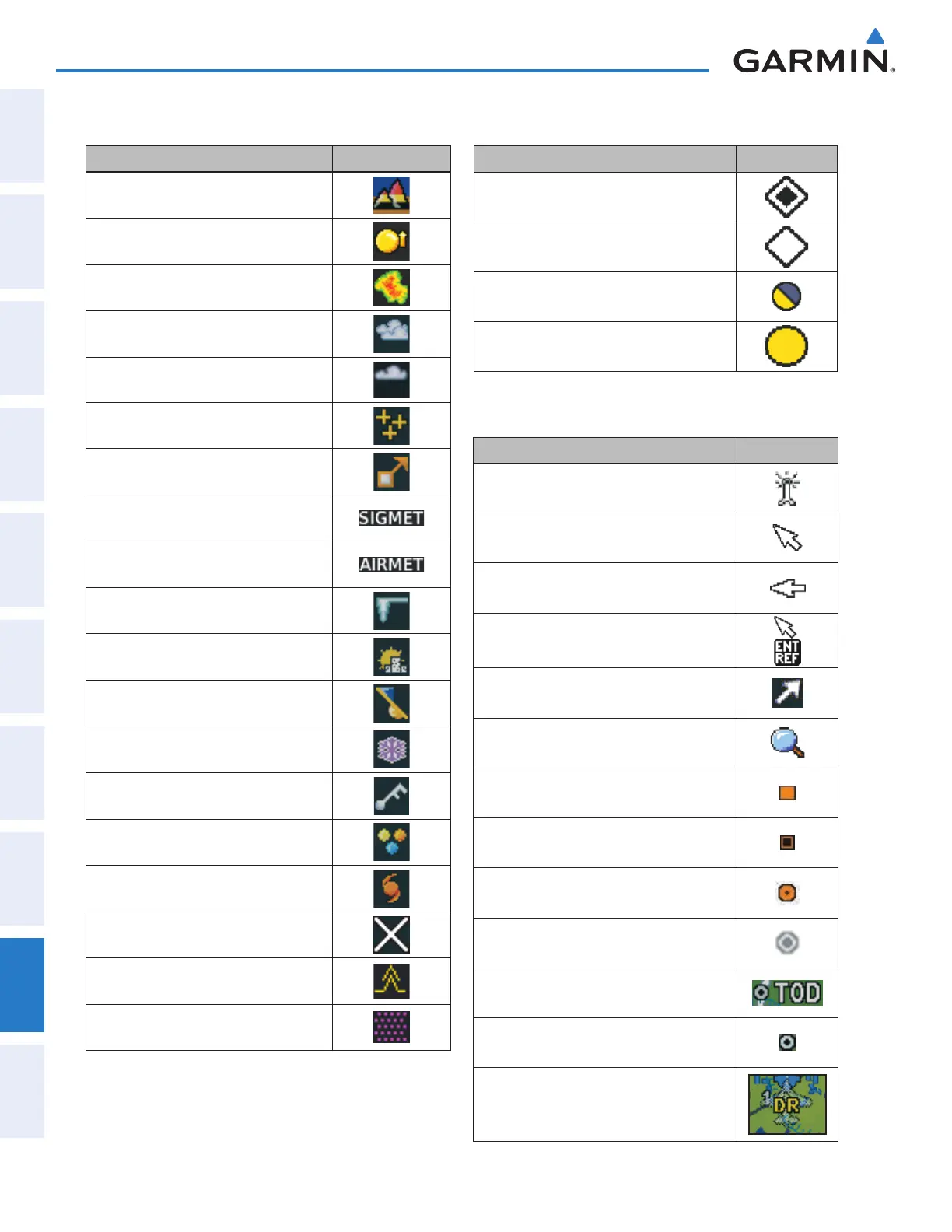

HAZARD AVOIDANCE FEATURES
Feature Symbol
Terrain map overlay display enabled
Traffic map overlay enabled
NEXRAD/Connext Radar display enabled
Cloud Top display enabled
Echo Top display enabled
SiriusXM or Connext Lightning display
enabled
Cell Movement display enabled
SIGMET display enabled
AIRMET display enabled
METARs display enabled
City Forecast display enabled
Surface Analysis display enabled
Freezing Levels display enabled
Winds Aloft display enabled
County Warnings display enabled
Cyclone Warnings display enabled
Loss of hazard avoidance feature
(loss of GPS position)
Turbulence display enabled
Current Icing Potential display enabled
TRAFFIC
Item Symbol
Non-threat Traffic
Proximity Advisory
Traffic Advisory, Out of Range
Traffic Advisory
MISCELLANEOUS
Item Symbol
ARTCC Frequency or FSS Frequency
Map Pointer (when panning)
Elevation Pointer
(on Topography Scale when panning)
Measuring Pointer
Wind Vector
Overzoom Indicator
User Waypoint
Vertical Navigation Along Track Waypoint
Parallel Track Waypoint
Unanchored Flight Path Waypoint
Top of Descent (TOD)
Bottom of Descent (BOD)
Navigating using Dead Reckoning
