Airspeed Indicator
2
Indicated Airspeed
3
Current Heading
4
True Airspeed
5
Horizontal Situation Indicator ( HSI)
6
Timer
7
ISA Temperature Deviation
8
Outside Air Temperature (OAT)
9
Softkeys
10
System Time
11
Selected Heading Bug
12
Turn Rate Indicator
13
Navigation Status Box
14
Altimeter Barometric Setting
15
Vertical Speed Indicator (VSI)
16
Selected Altitude Bug
17
Altimeter
18
Selected Altitude
19
COM Frequency Box
20
AFCS Status Box
21
Slip/Skid Indicator
22
Attitude Indicator

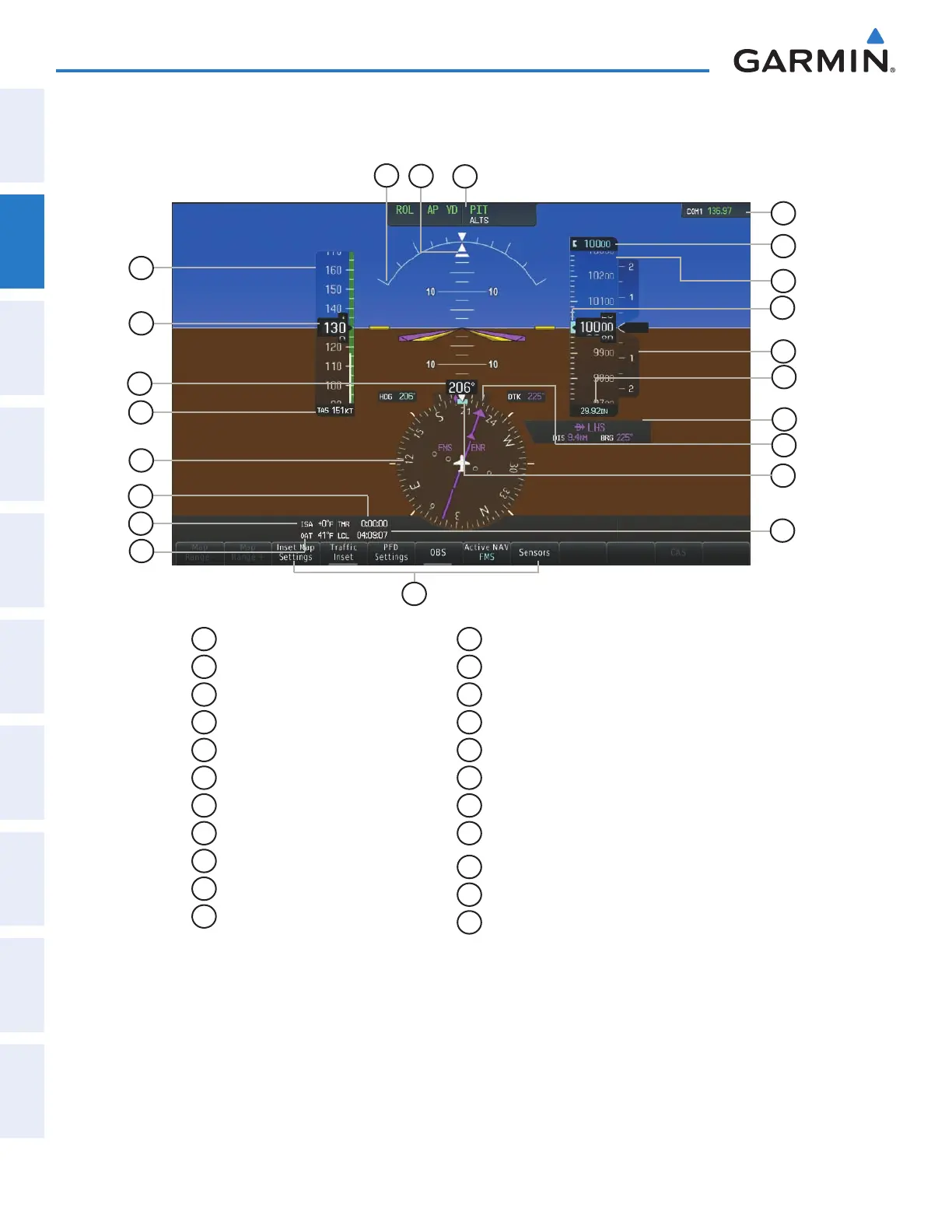

Figure 2-1 Primary Flight Display (Default)
