Garmin G2000 Pilot’s Guide for the Cessna T240
190-01263-01 Rev. A82
Flight instruments
sYstem
OVerVieW
Flight
instruments
eis
AuDiO PAnel
& Cns
Flight
mAnAgement
hAZArD
AVOiDAnCe
AFCs
ADDitiOnAl
FeAtures
APPenDiCesinDeX

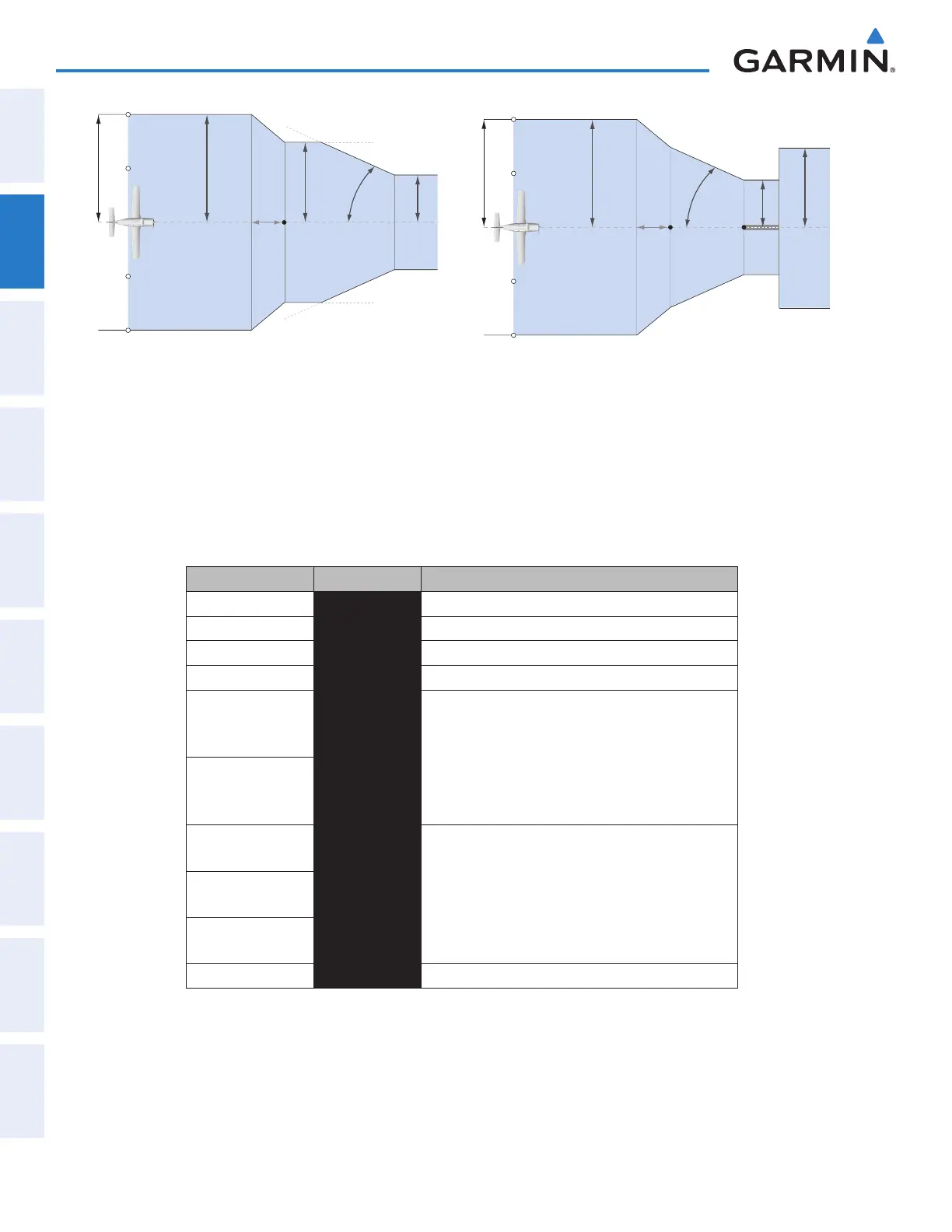

Figure 2-27 Typical LNAV and LNAV+V Approach CDI Scaling
1.0 nm
2 nm
350 ft
angle set
by system
0.3 nm
FAF
CDI Full-scale Deflection
CDI scale is set to the smaller of 0.3 nm
or an angle set by the system
CDI scale varies if VTF is activated
Figure 2-28 Typical LNAV/VNAV, LPV, and LP Approach CDI Scaling
1.0 nm
2 nm
FAF
0.3 nm
course width
Landing
Threshold
CDI Full-scale Deflection
angle based
on database
information
CDI scale varies if VTF is activated
• When a missed approach is activated, the CDI scale changes to 0.3 nm.
• The system automatically switches back to terminal scaling under the following conditions:
- The next leg in the missed approach procedure is not aligned with the final approach path
-
The next leg in the missed approach procedure is not CA, CD, CF, CI, CR, DF, FA, FC, FD, FM, IF, or TF
- After any leg in the missed approach procedure that is not CA or FA
Flight Phase Annunciation Automatic CDI Full-scale Deflection
Departure DPRT 0.3 nm
Terminal TERM 1.0 nm
Enroute ENR 2.0 nm
Oceanic OCN 4.0 nm
Approach
(Non-precision)
LNAV
1.0 nm decreasing to 350 feet depending on
variables (see Figure 2-27)
Approach
(Non-precision with
Vertical Guidance)
LNAV + V
Approach
(LNAV/VNAV)
L/VNAV
1.0 nm decreasing to a specified course width, then
0.3 nm, depending on variables (see Figure 2-28)
Approach
(LPV)
LPV
Approach
(LP)
LP
Missed Approach MAPR 0.3 nm
Table 2-1 Automatic GPS CDI Scaling
