GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 4-3 - General Procedure 4-23
4-3-11-4 Archiving Images
To export an exam(s) to a compatible Ultrasound system:
1.) Format the removable media (CD-ROM/DVD-R). Label the removable media. Answer Yes/OK
to the messages.Press Patient. Deselect any selected patient(s) in the search portion of the
Patient screen. Press Exam Data Transfer (located at the upper, left-hand corner of the Patient
menu).
2.) Select Export task Button.
3.) The [From] combo box is not active. It displays Local Archive. The [To] combo box is active.
Select the type of removable media CD R/DVD-R. Then please wait until the patient list is
visible.

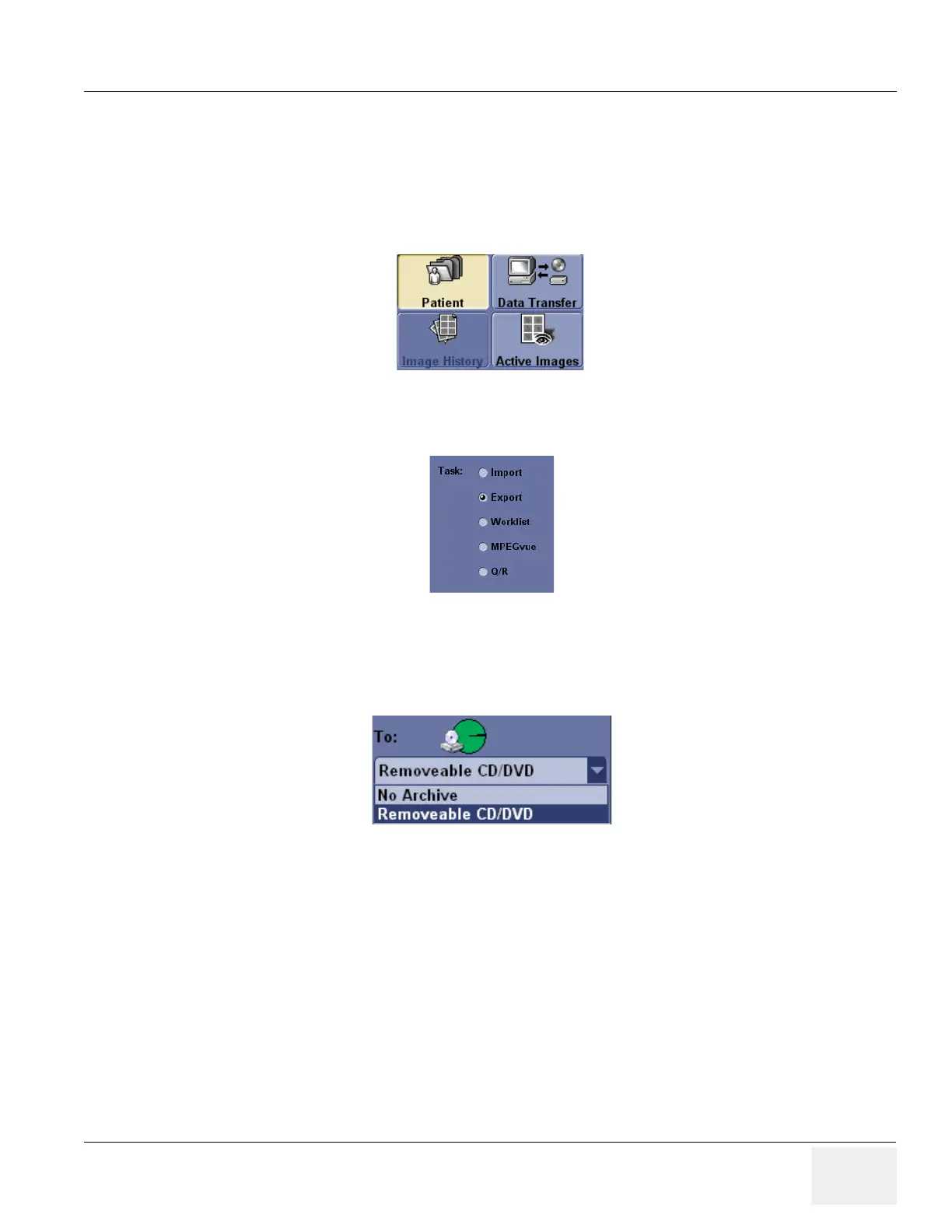

Figure 4-18 Exam Data Transfer
Figure 4-19 Task button
Figure 4-20 To Combo Box

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
