5-20 Section 5-4 - Main Board Detail
5-4-4-1 PM SOM and CM SOM
The difference on both module is BIOS boot screen and label on the module. The label include FRU
number.
• PM SOM FRU number is 5178410 and CM SOM FRU number is 5178834
• BIOS display screen are different. The BIOS boot screen come up when power on the system. The
number on the screen is FRU number of each SOM assy. The system with PM SOM assy show
5178410 and the system with CM SOM assy shows 5178834.

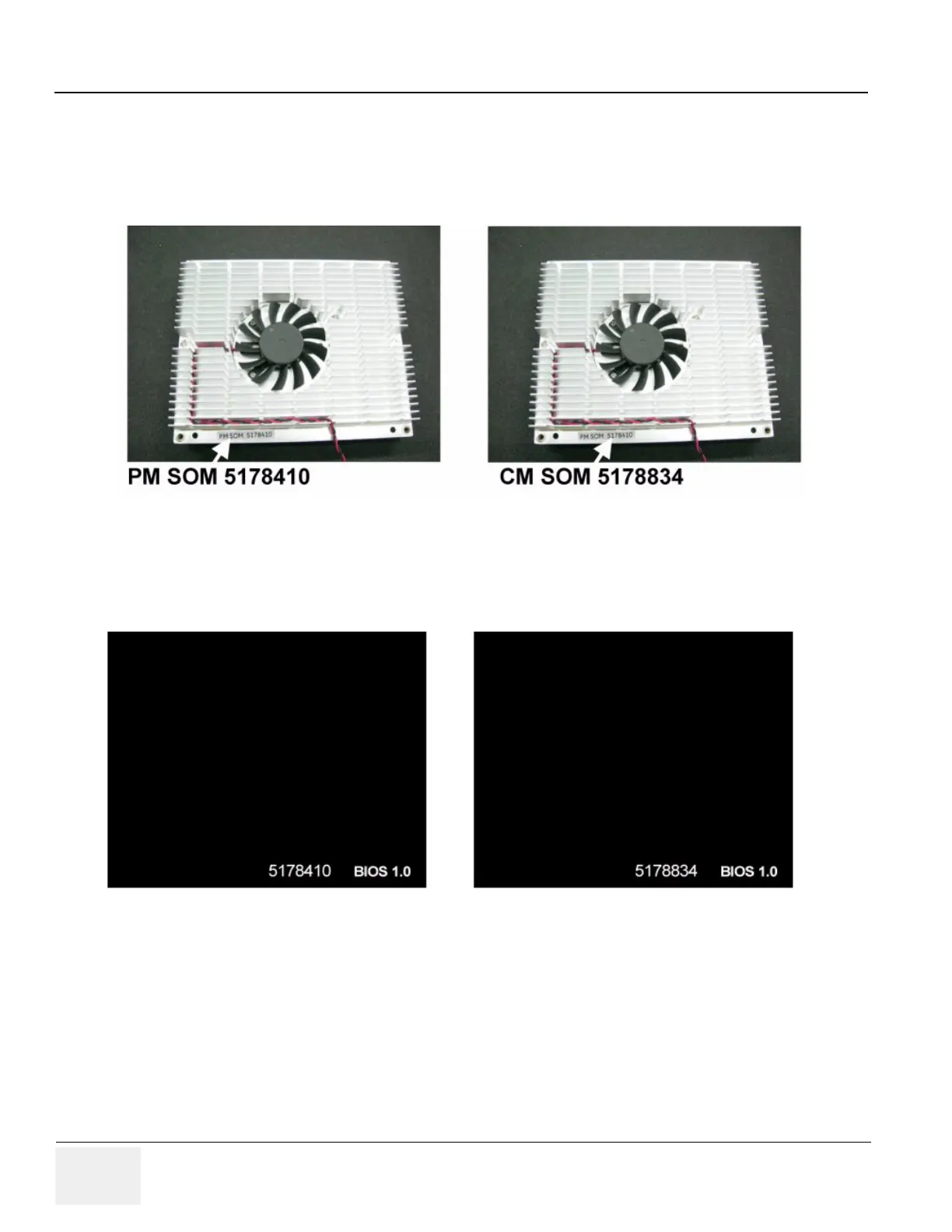

Figure 5-17 Different Label on PM SOM and CM SOM
Figure 5-18 BIOS Boot Screen of PM SOM and CM SOM

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
