Section 7-5 - Common Diagnostics 7-15
7-5-3-3 Mouse Test
1.) Click Mouse Test from the PC Diagnostic interactive tests menu.
The Mouse test dialog box presents you like Figure 7-8.
2.) The Mouse coordinates are displayed when the trackball is moved.
3.) Press the right Button (Set B/Pause Button) on the front panel, the Mouse which is turned to Yellow
on the right side is shown on the monitor.

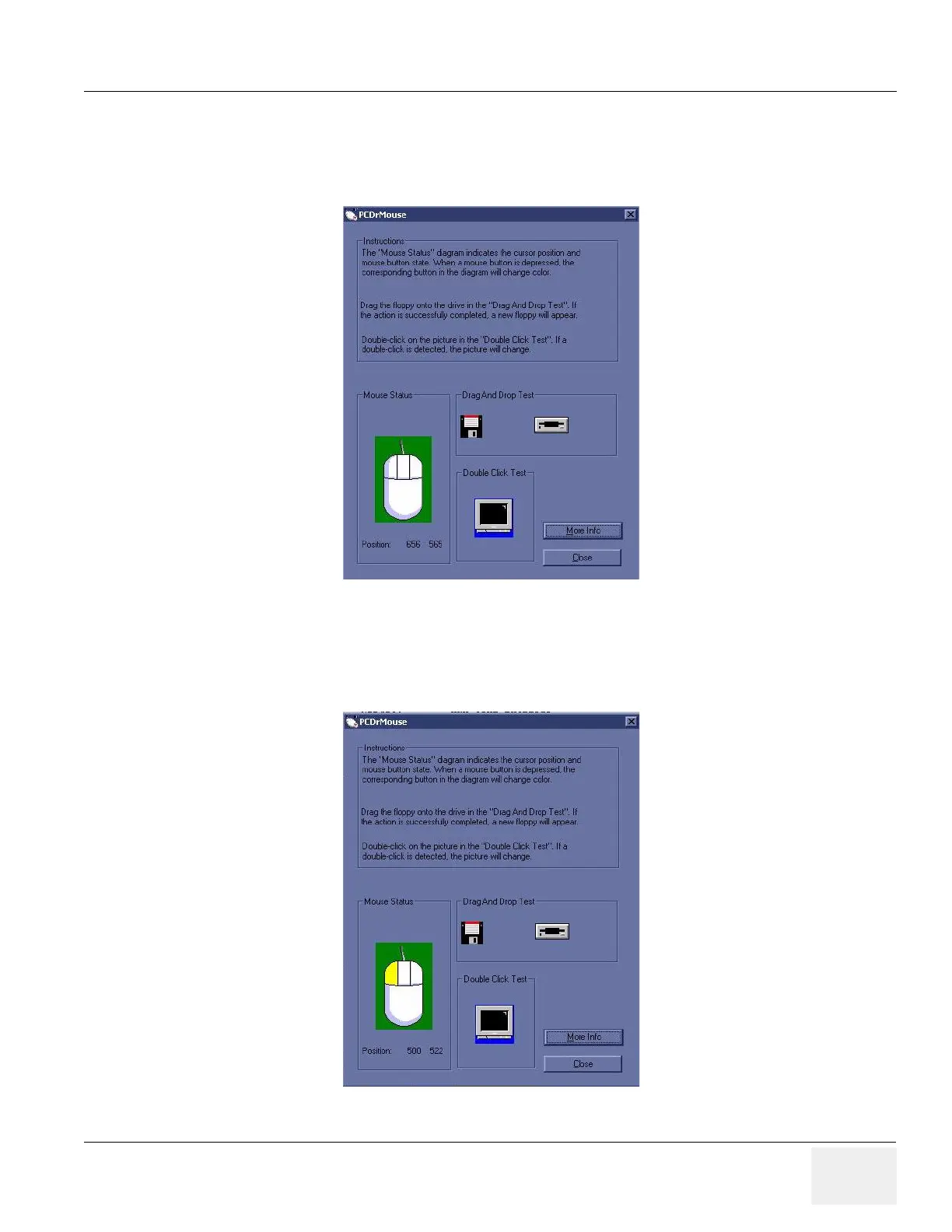

Figure 7-8 Mouse Test
Figure 7-9

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
