GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8-19
8-2-6-3 Removal procedure (cont’d)

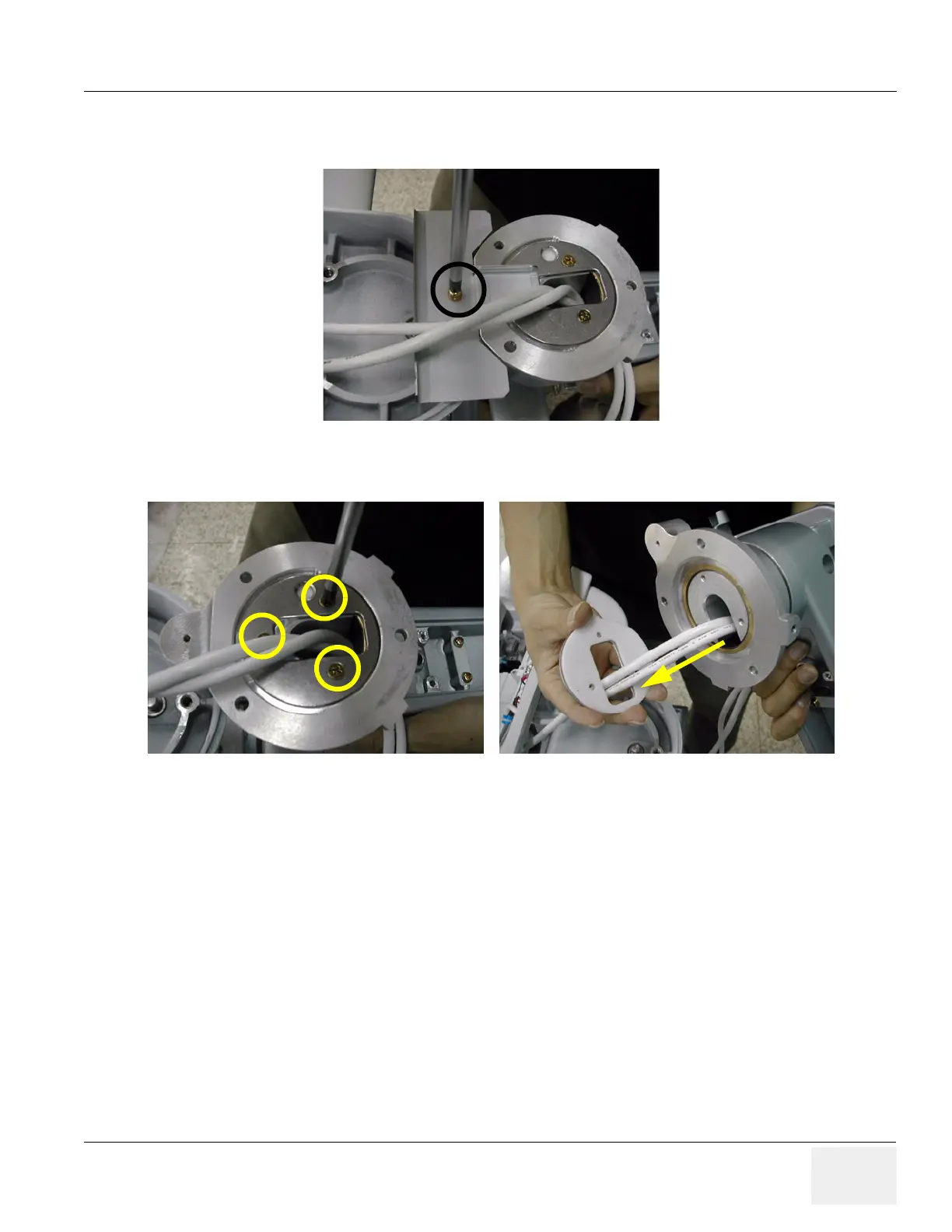

17.)Unscrew 1 screw (2159625, PH M4x8 W/SP) to remove the OP bracket.
18.) Unscrew 3 screws (2373562, FH M4x10 YEL) to separate the Flexible arm stopper (A+B).
Figure 8-32 Removing OP bracket
Figure 8-33 Separating the flexible arm stopper
To Next Page
