8-18 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-6-3 Removal procedure (cont’d)
15.)Unscrew 3 screws (2159634, BH M4x10 WHT) after removing the rubber caps to remove neck front
cover, neck rear cover.
16.)Unscrew 3 screws(5327646, HSH M6X16 WHT) to separate the flexible arm neck pipe.

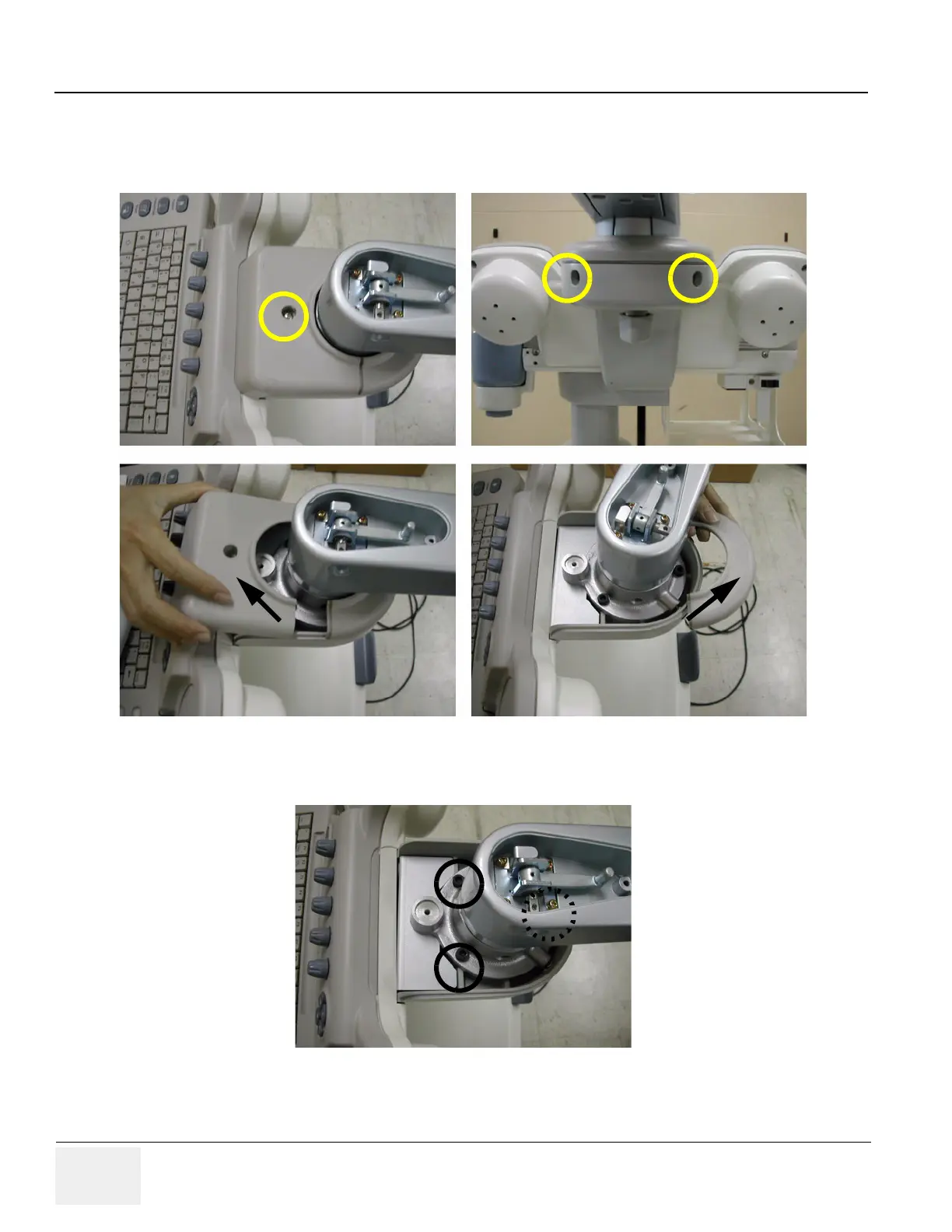

Figure 8-30 Unscrewing 3 screws and removing the neck front cover & neck rear cover
Figure 8-31 Separating the neck pipe
