8-34 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-6-4 Assembly procedure (cont’d)
24.)Screw 2 screws (2159632, BH M4X6 WHT) to assemble the Cam Cover L & R.
25.)Screw 1 screw (2329677, TAP M4X16) to assemble the Fold Cover.

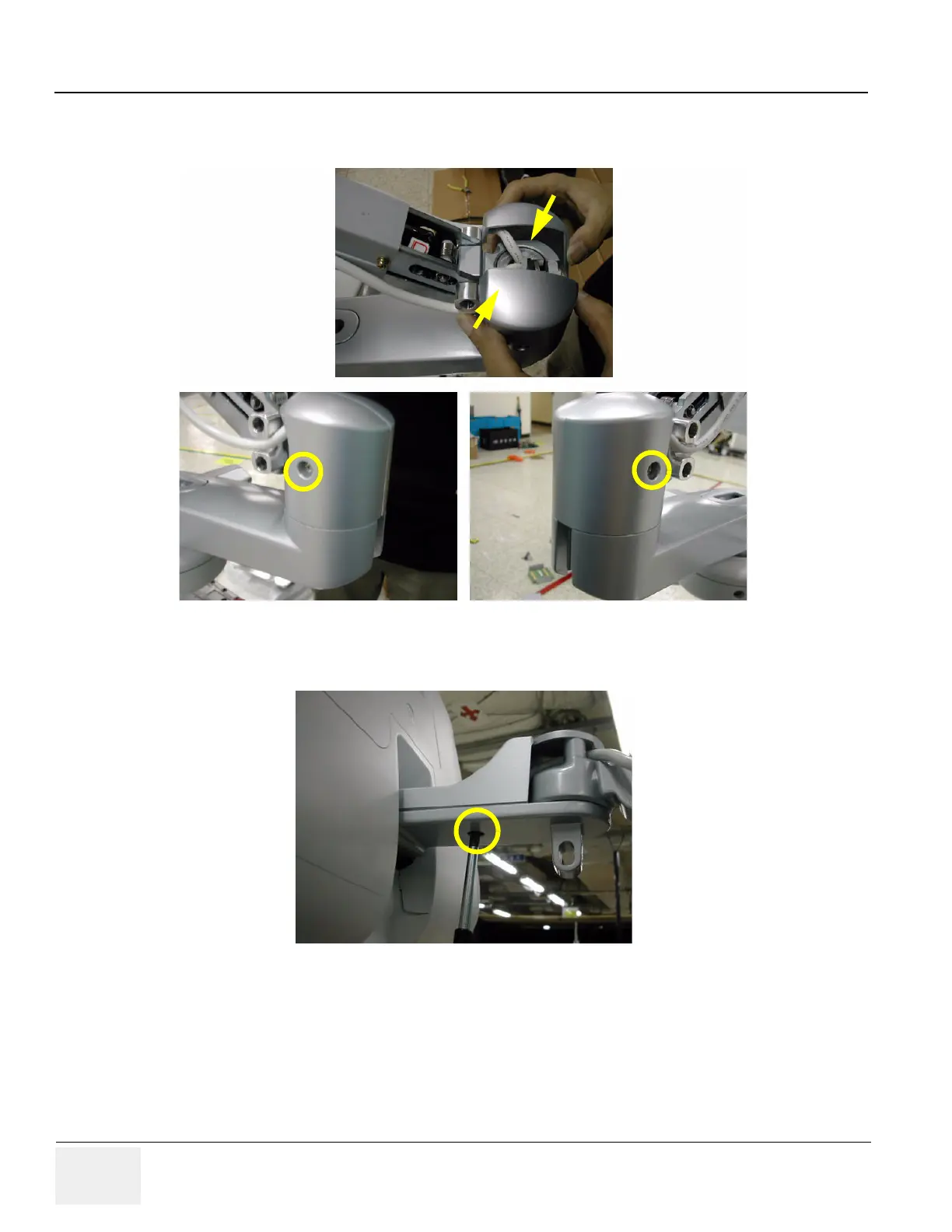

Figure 8-61 Assembling the Cam Cover L & R
Figure 8-62 Assembling the Fold Cover
