8-2-6-4 Assembly procedure (cont’d)
26.)Screw 2 screws (2337572, FH M3X6 WHT) to assemble the Arm cover L & R.
27.)Screw 4 screws (2159634, BH M4X10 WHT) to assemble the Arm bottom Cover.

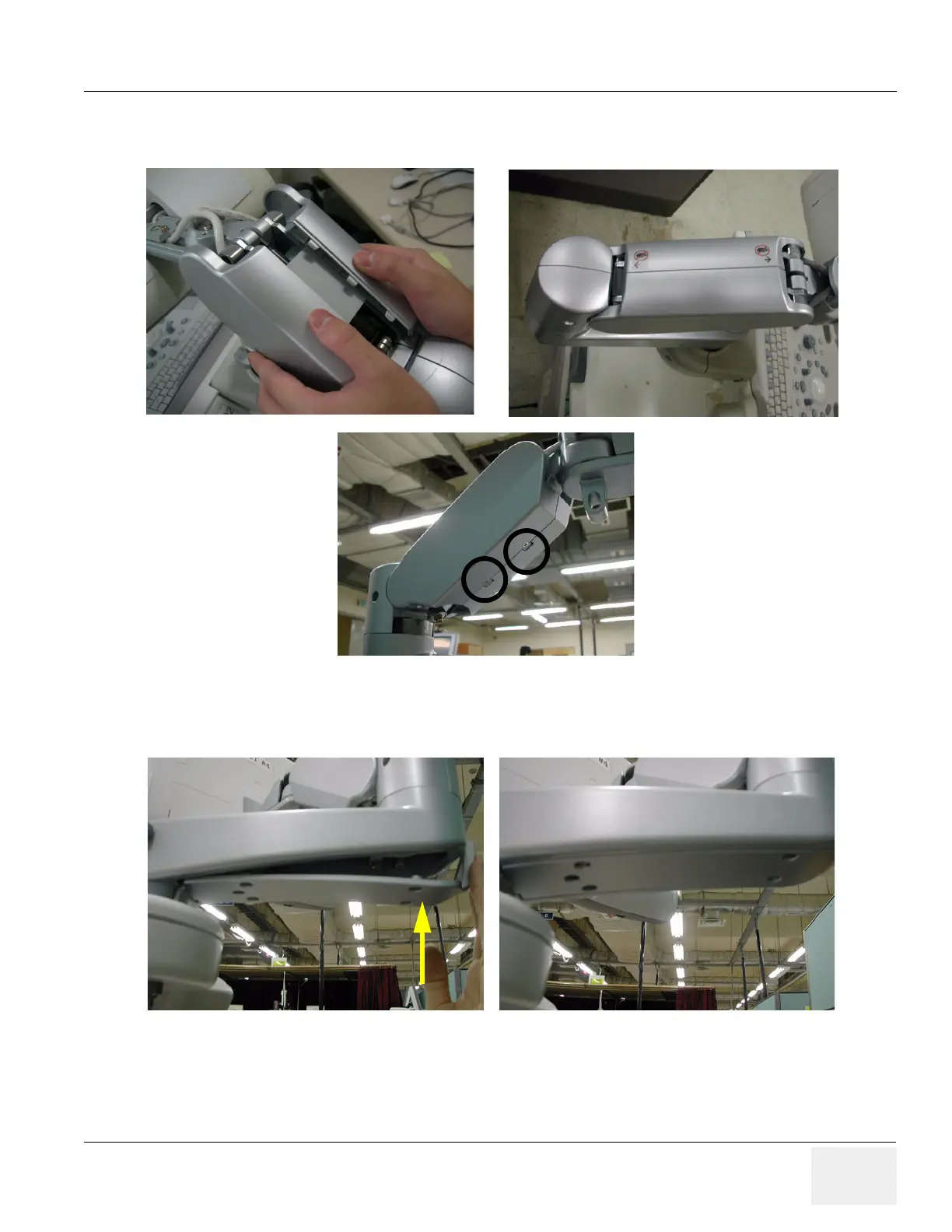

Figure 8-63 Assembling the Arm Cover L & R
Figure 8-64 Assembling the Arm bottom cover
