GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-4 - Software Installation 8-153
8-4-4-4 Functional Checks for Service Platform (Diagnostic Program)
The Service platform uses a web-based user interface (UI) to provide access to common service
components.
NOTE: After perform diagnostics, shut down and restart to make the system working properly.
1.) Go to Utility and press Service to launch Service Platform. It will take some seconds for activating.
2.) Make sure that
CAPS is not selected (should be dimmed) for password entry performed later.
3.) The Service Login window for Service Platform will be shown on the monitor display.

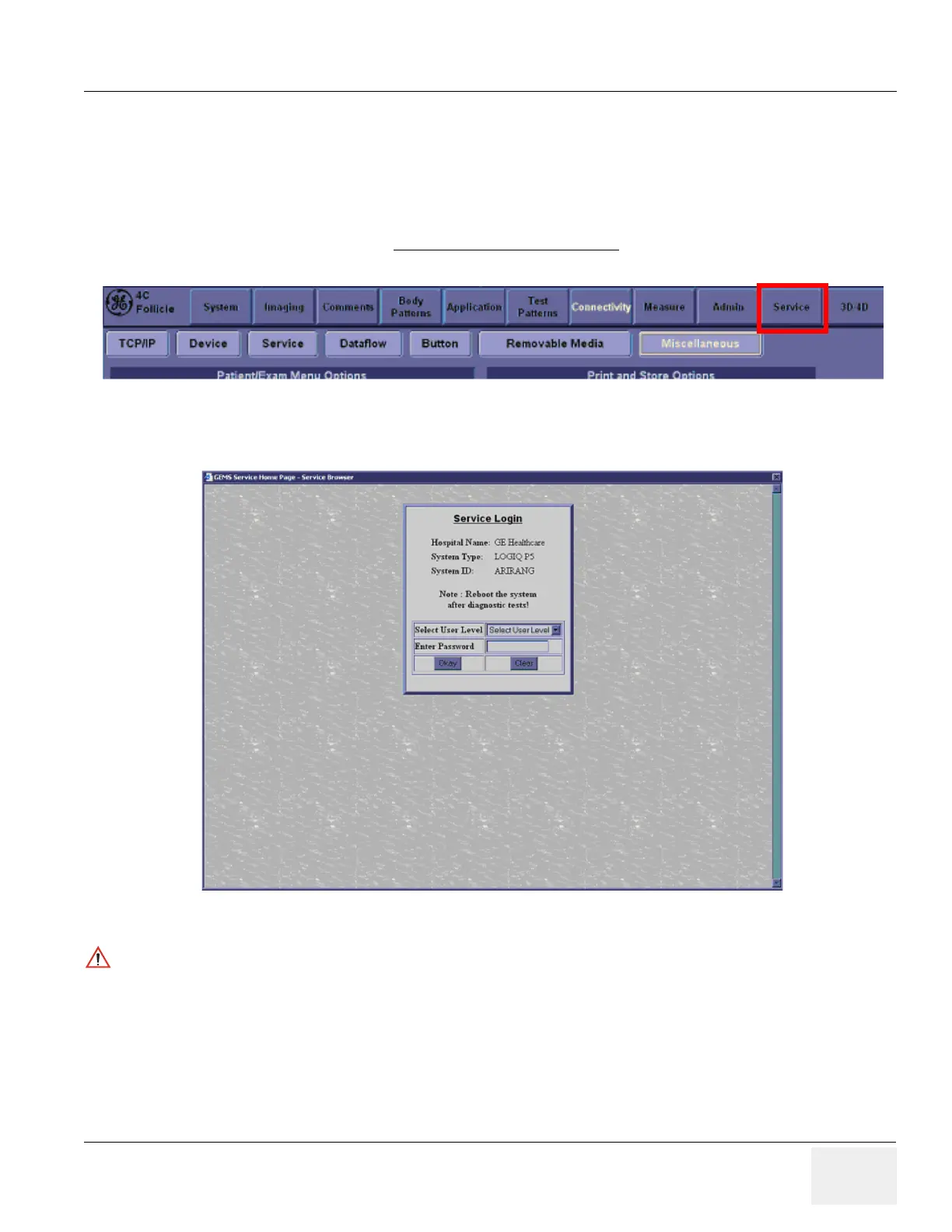

Figure 8-209 Utility -> Service
Figure 8-210 Log in screen
CAUTION
If the Login window for Service Platform is not displayed on the monitor, the installation of the
Service Platform has failed. Reload the application software or Base System Software (OS) +
application software. Contact a Technical Support for details.

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
