Section 8-4 - Software Installation 8-155
Platform and return to the scan panel.
8-4-4-5 Setting the VCR (if necessary)
1.) Select Utility > System > Peripheral tab.
2.) Under Video Settings, PAL or NTSC.
3.) Under VCR, select Composite or S-Video.
4.) Under VCR, select Panasonic LQ-MD800 or Mitsubishi MD3000, as appropriate.
5.) Click on Save.
6.) Shut down the scanner, then restart the scanner.
7.) Verify that the VCR can be properly operated.

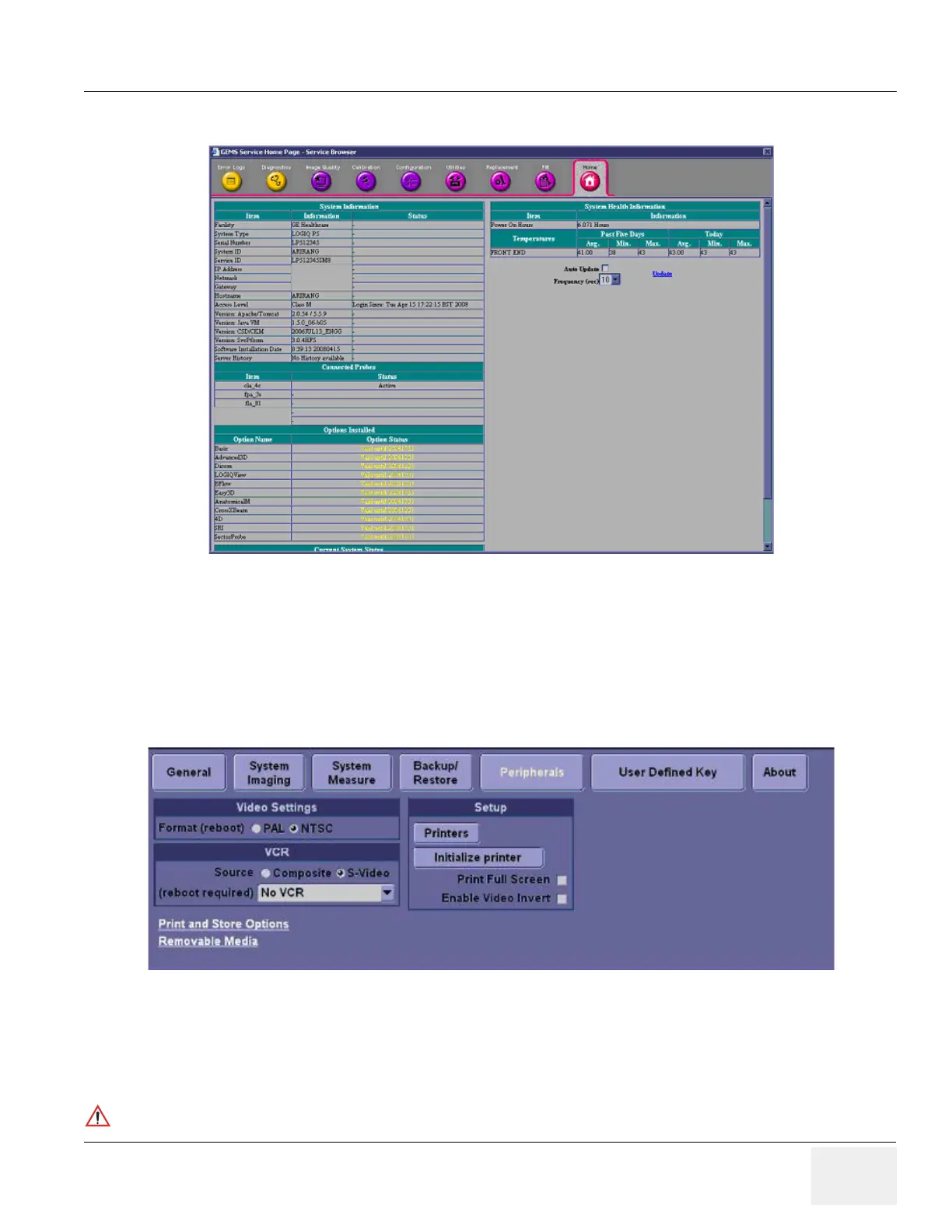

Figure 8-212 Service Platform screen
Figure 8-213 Utility > System>Peripherals
NOTICE
Be sure to connect the converter and cable before booting up the system. Otherwise the LOGIQ™ P5
system does not recognize the peripheral devices

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
