GE MAC 5 A4 User Manual

Configure Settings
Name No. of
Leads
Lead
Format
Leads Default Auto-
rhythm
Digital
Rhythm
Swedish standard:
CH1 to CH12: aVL, I, -aVR, II, aVF, III,
V1, V2, V3, V4, V5, V6
3 Leads 3 1x3 CH1 to CH3: V1, II, V5 No Yes No
CH1 to CH6: I, II, III, aVR, aVL, aVF6 Lead
Group 1
6 1x6
Swedish standard:
CH1 to CH6: aVL, I, -aVR, II, aVF, III
No No No
6 Lead
Group 2
6 1x6 CH1 to CH6: V1, V2, V3, V4, V5, V6 No No No
The All Leads and 6 Lead Group 1 lead formats for all default lead sets are
automatically set to the lead channel sequence mentioned in Table 35: Default Lead
Formats for Each Lead Set on page 137 when the device language is set as Swedish,
and the device is restored to factory default settings.
You can add, edit, and delete user-defined ECG lead formats, except the All Leads
format.

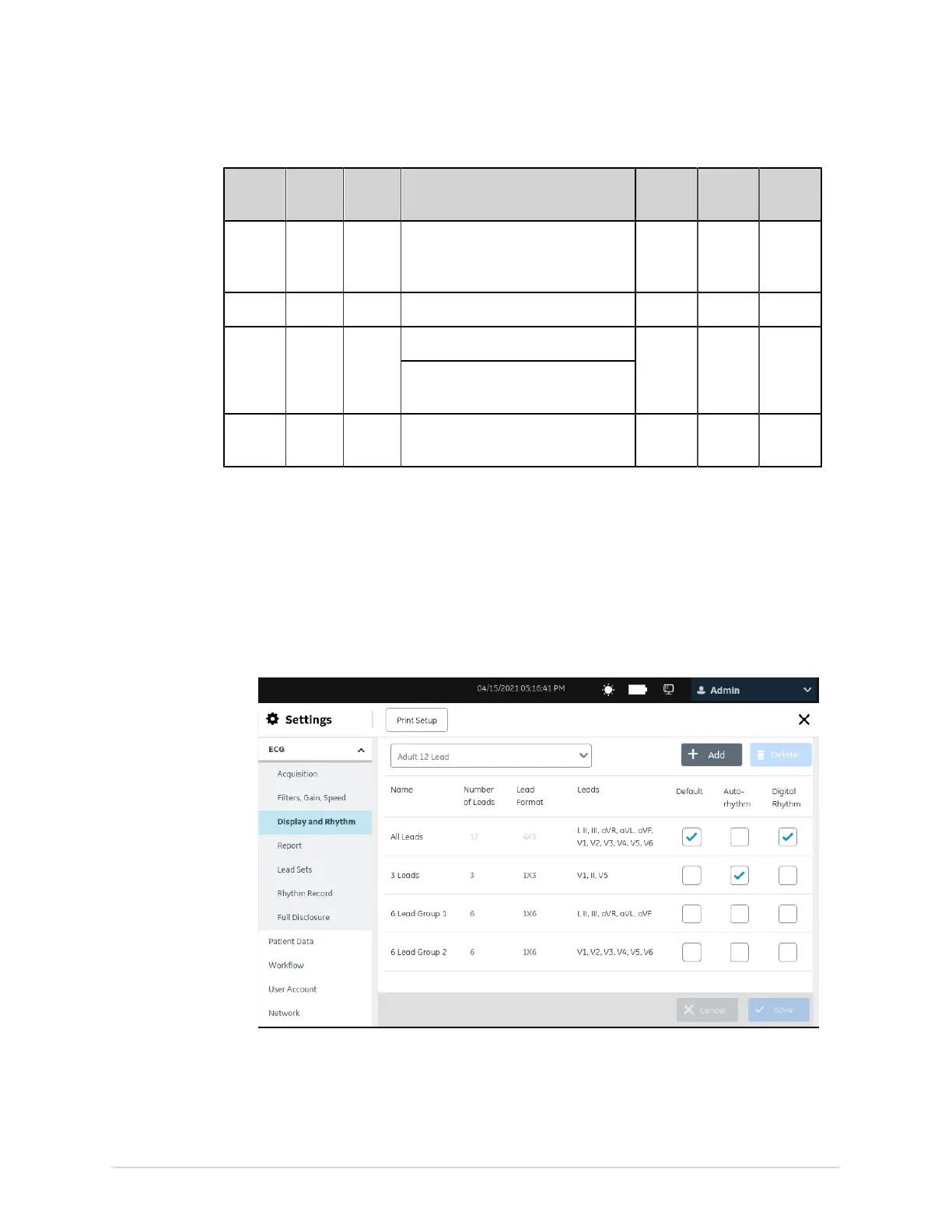

1. Select Settings > ECG > Display and Rhythm.
The Display and Rhythm formats screen displays.
2. To configure a lead format for a selected lead:
• To add a user-defined lead format, perform step 3 to step 6.
• To edit a user-defined lead format, perform step 7.
• To delete a user-defined lead format, perform step 8.
138  MAC
™
5 A4/MAC
™
5 A5/MAC
™
5 Lite 5864335-001-1
