Configure Settings

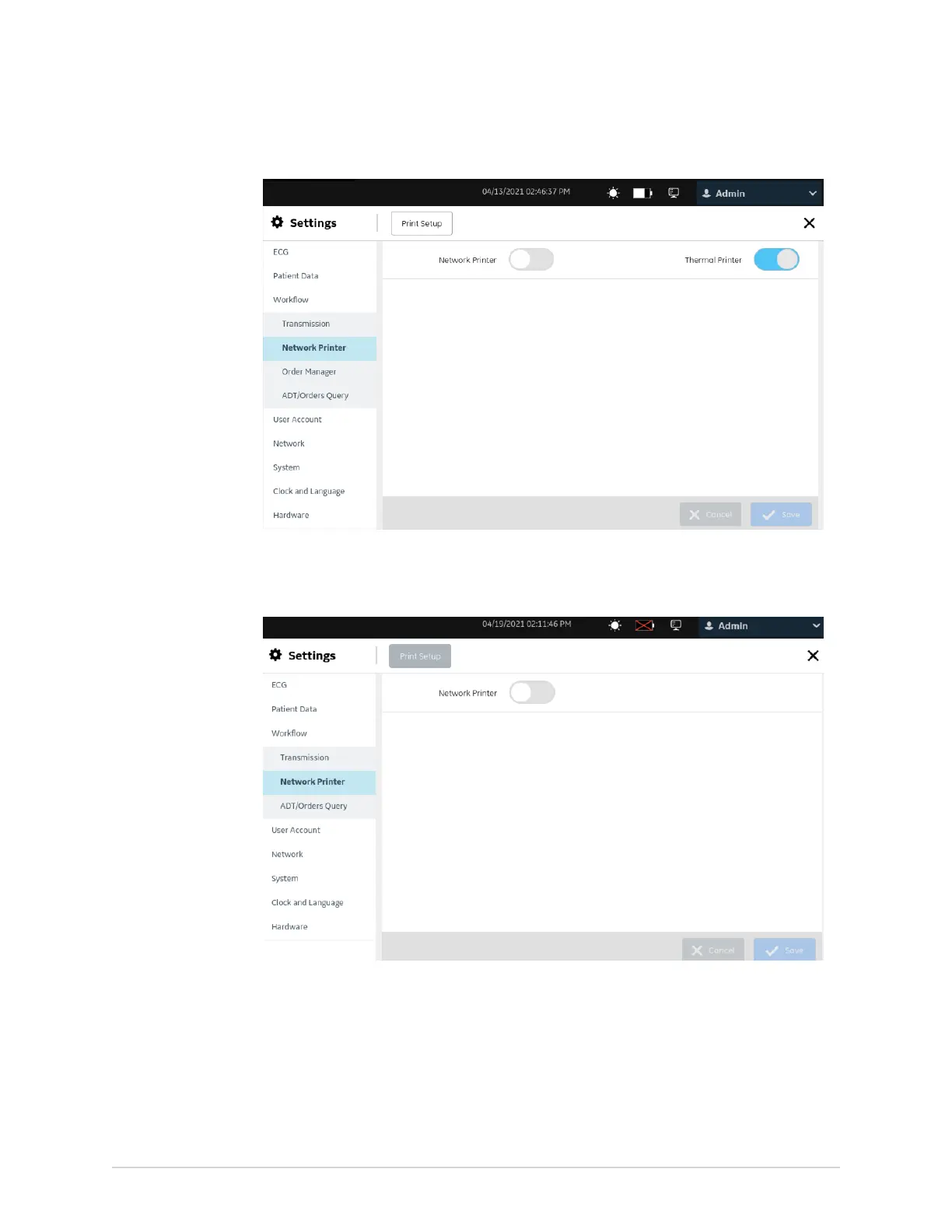

User Interface on Lite device
For MAC 5 devices with printer
, the default printer is thermal printer
.
For MAC 5 Lite device, the network printer is disabled by default
.
2.
Enable network printer
, and configure the network printer per the information in
the table below:
184

MAC
â„¢
5 A4/MAC
â„¢
5 A5/MAC
â„¢
5 Lite

5864335-001-1
183
185
Table of Contents
