Configure Settings

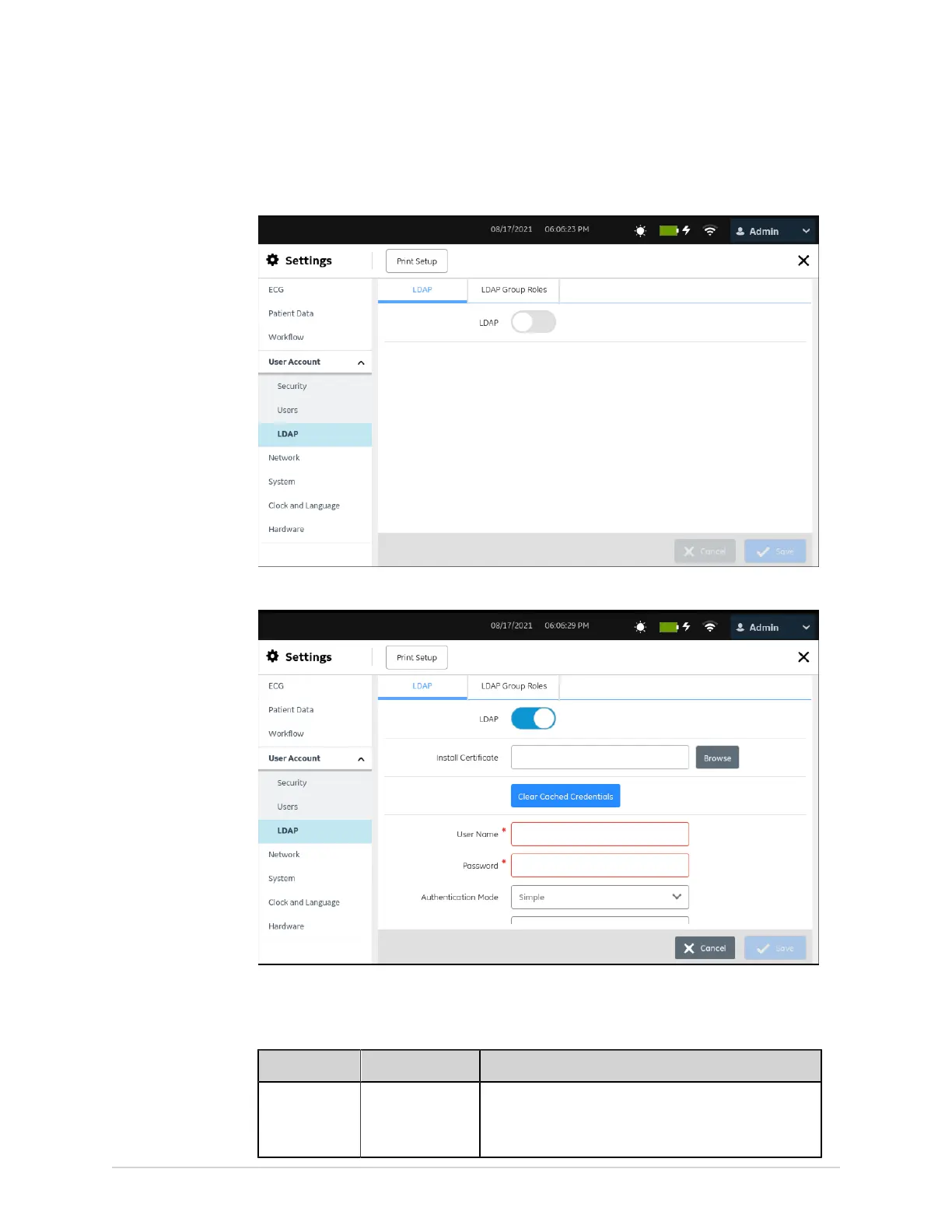

2.
Select
LDAP
to view the LDAP settings.
The
LDAP
scr
een displays.
3.
Enable
LDAP
setting.
4.
Configure
LDAP
as per the information in the table.
Table 68: Configur
e LDAP
Field
Action
Description
LDAP
Enable or disable
this option.
If this option is enabled, technicians can log in to the
device remotely using their network cr
edentials.
Default value: Disabled
5864335-001-1

MAC
â„¢
5 A4/MAC
â„¢
5 A5/MAC
â„¢
5 Lite

217
216
218
