GRASS VALLEY KAYENNE - V2.0 User Manual

304 KAYENNE — User Manual
Section 3 — System Operation
Parallel Bus Links
Parallel Links allow the controlling bus to control more than one linked bus.
In the example in
Figure 204, PGM A is the controlling bus and Aux 1,
Aux 2, and ME1 Key1, are all linked in parallel to PGM A.

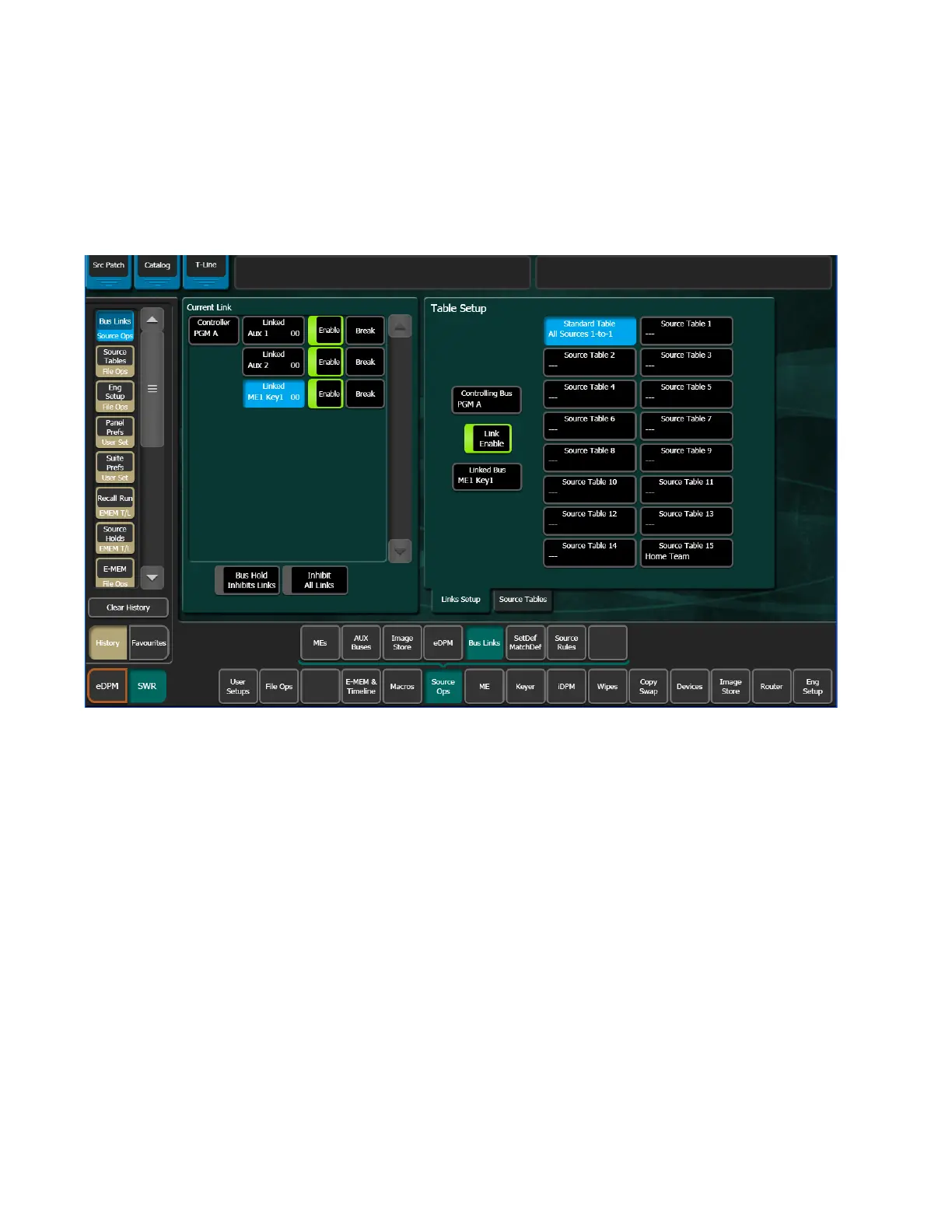

Figure 204. Parallel Links
To create parallel links:
1. Touch the Controlling Bus data pad in the Table Setup pane; the
Controlling Bus selection menu is displayed.
2. Touch the ME busses, Aux Busses, or eDPM Inputs tab and touch the desired
bus. The menu closes and returns to the Bus Links menu. The selected
bus is displayed in the
Controlling Bus data pad (in the example in
Figure 204, the selected bus is PGM A).
3. Touch the Linked Bus data pad in the Table Setup pane; the Linked Bus
selection menu is displayed.
4. Touch the ME busses, Aux Busses, or eDPM Inputs tab and touch the desired
bus. The menu closes and returns to the Bus Links menu. The selected
bus is displayed in the
Linked Bus data pad.
