Display
Display format
MGCplus A0534-30.0 HBM: public 225

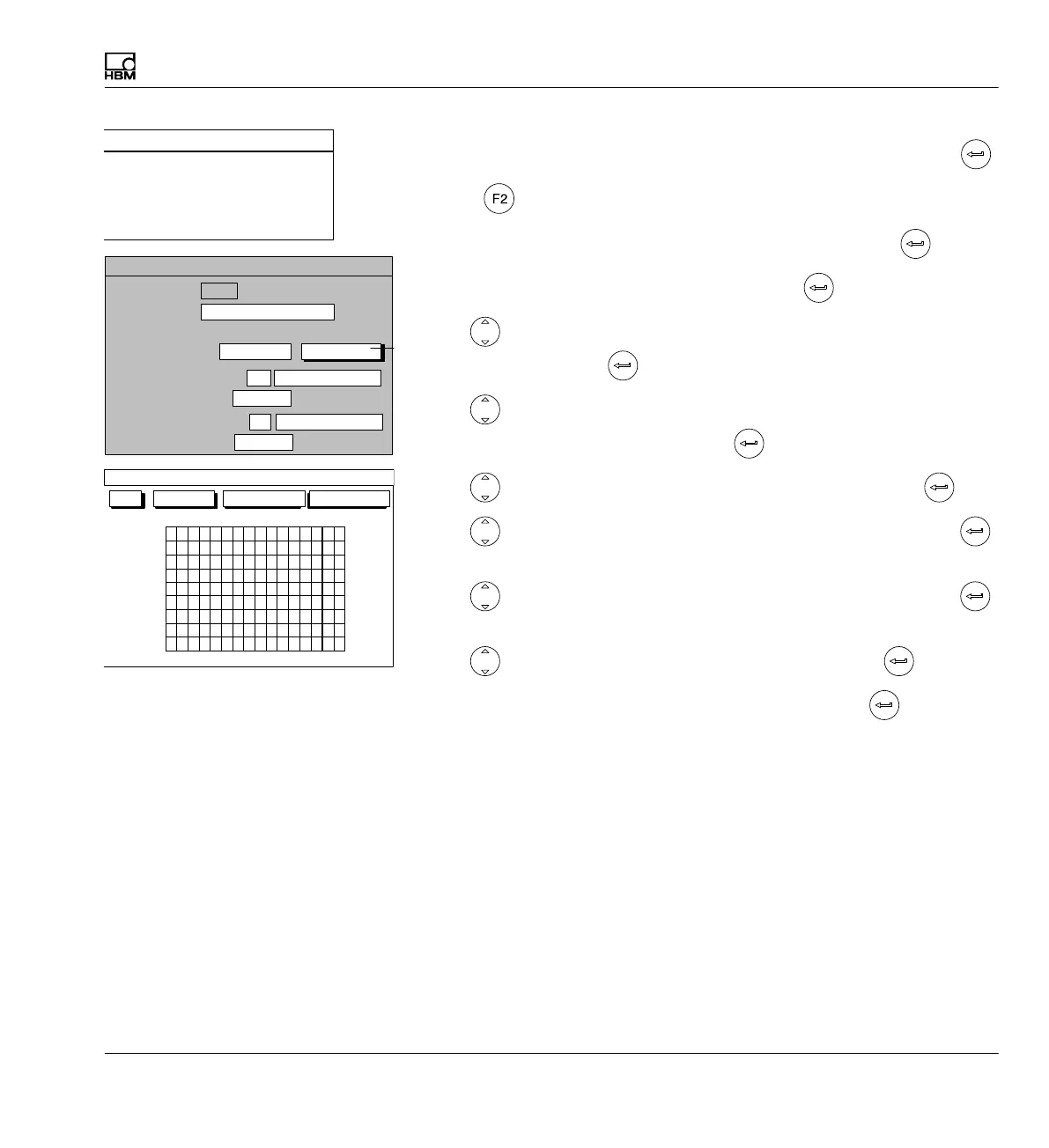

7. In edit field Channel 4 enter DISPLACEMENT P2 and confirm with .
8. Press
.
9. In the pull-up menu select Display format and confirm with
.
10. In edit field Image no. enter 1 and confirm with
.
11. Use
in the Image type selection field to select 3 MEASURED VAL
UES and confirm with
.
12. Use
in the Display value 1: Channels/signals selection field to
choose SELECTION and confirm with
.
13. Use
to select the define... button symbol and confirm with .
14. Use
to select the Channel 2/PV1 control field and confirm with
(a n appears in the control field).
15. Use
to select the Channel 4/PV1 control field and confirm with
(a n appears in the control field).
16. Use
to select the OK button symbol and confirm with .
17. In edit field Value 2: Channel enter -1 and confirm with
.
Channel
Gross
Net
PV1
PV2
PV12
LV1
LV2
LV3
LV4
101112
Channel 1: Force P1
Channel 2: Displacement P1
Channel 3: Force P1
Channel 4: Displacement P2
1314
CHANNEL NAMES
15161

2

3

4

5

6

7

8

9

Display value 1 (basic value):
1
3 measured values 
Image no.:
Image type:
Display value 2: Channel
DISPLAY FORMAT 3 measured values
Signal
Display value 3: Channel
Signal
Channels/signals:
Selection
define...
2 Absolute 
Net 
3 Absolute 
Net 
OK Cancel All channels All signals
CHANNEL/SIGNAL SELECTION
44
