System
Recording series of tests
252 A0534-30.0 HBM: public MGCplus

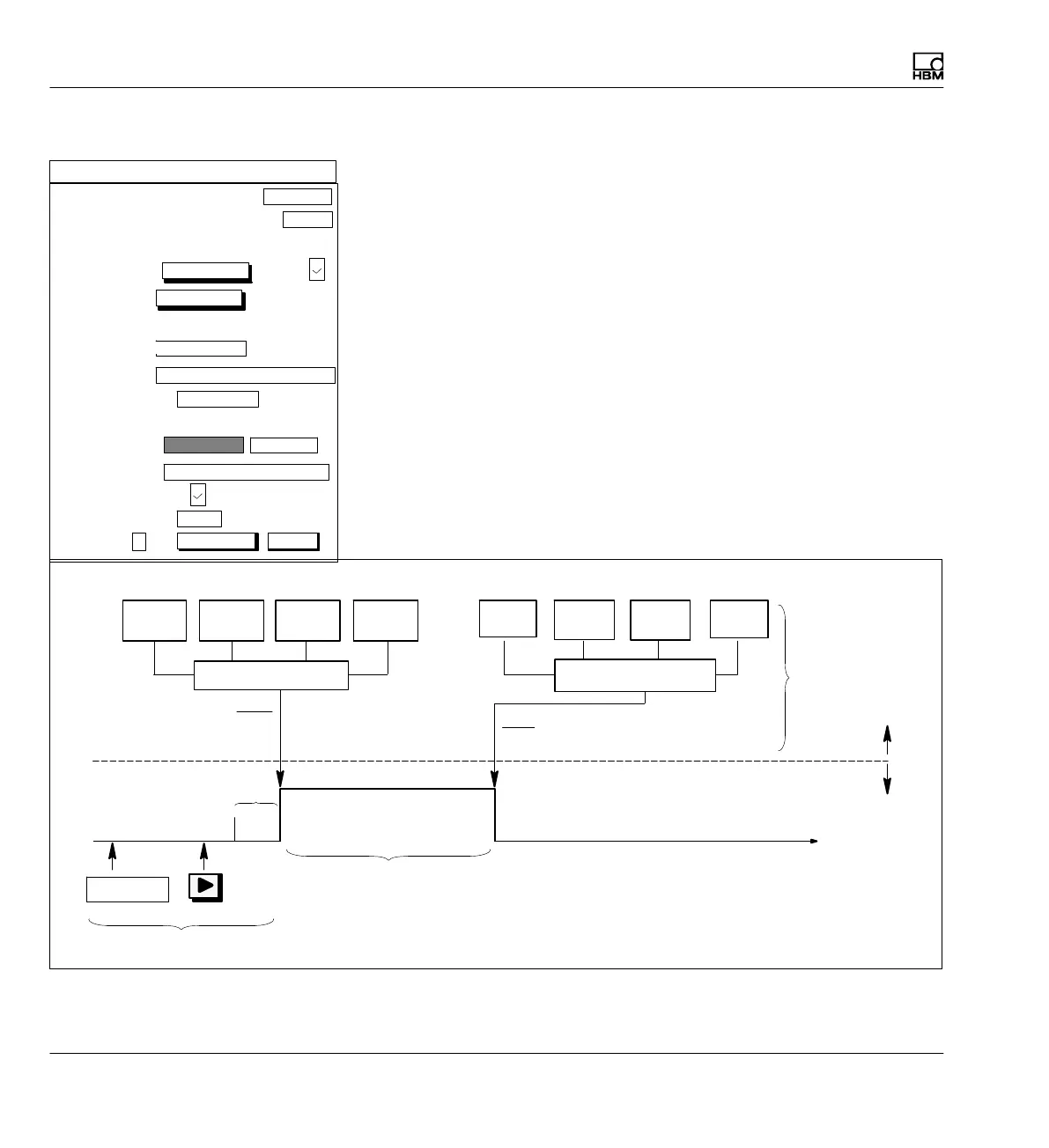

Trigger function
To use the trigger function you must first define the trigger conditions.
There are three trigger types available:
1. Start trigger (with maximum four trigger conditions)
2. Stop trigger (with maximum four trigger conditions)
3. Sampling rate trigger (with start and stop)
One start condition and one stop condition (trigger condition) can be:
S a measured value level
S a limit switch
S a measured value band
S an external input signal
These start/stop conditions can be defined independently of each other and
can be combined with each other. The AND function and OR function are
available for this purpose (
è see also page 254):
START
tr. 1
START
tr. 2
START
tr. 3
START
tr. 4
STOP
tr. 1
STOP
tr. 2
STOP
tr. 3
STOP
tr. 4
OR AND
Recording of a
measurement period
Time
Load AP
Start AP
Pre-trigger
Specify trigger
conditions
AP= Recording program
Preparation for trigger measurement
OR combination
defines Start trigger
event
AND combination defines Stop
trigger event
Example
Setting
measure
(F−key)
save load
Number:
RECORDING PARAMETERS
Measuring interval/sampling rate:
300Hz 
Duration: 4.0
Measurement periods:
Channels/signals:
define...
Time
channel:
define...
Trigger:
PreTrigger:
Immediately 
Start condition:
20.00 % ...
Number of measured values 
Stop condition:
Recording to:
a file 
Recording information file:
MGCP0000.MEA ...
Recording format:
4−byte integer LSB.. MSB 
Autostart:
No
Param.set:
1
1200 ...
1 ...
s... 
Rec. Comments:
change 
Compression factor:
480
