HBM MGCplus - Page 255

System
Recording series of tests
MGCplus A0534-30.0 HBM: public 255

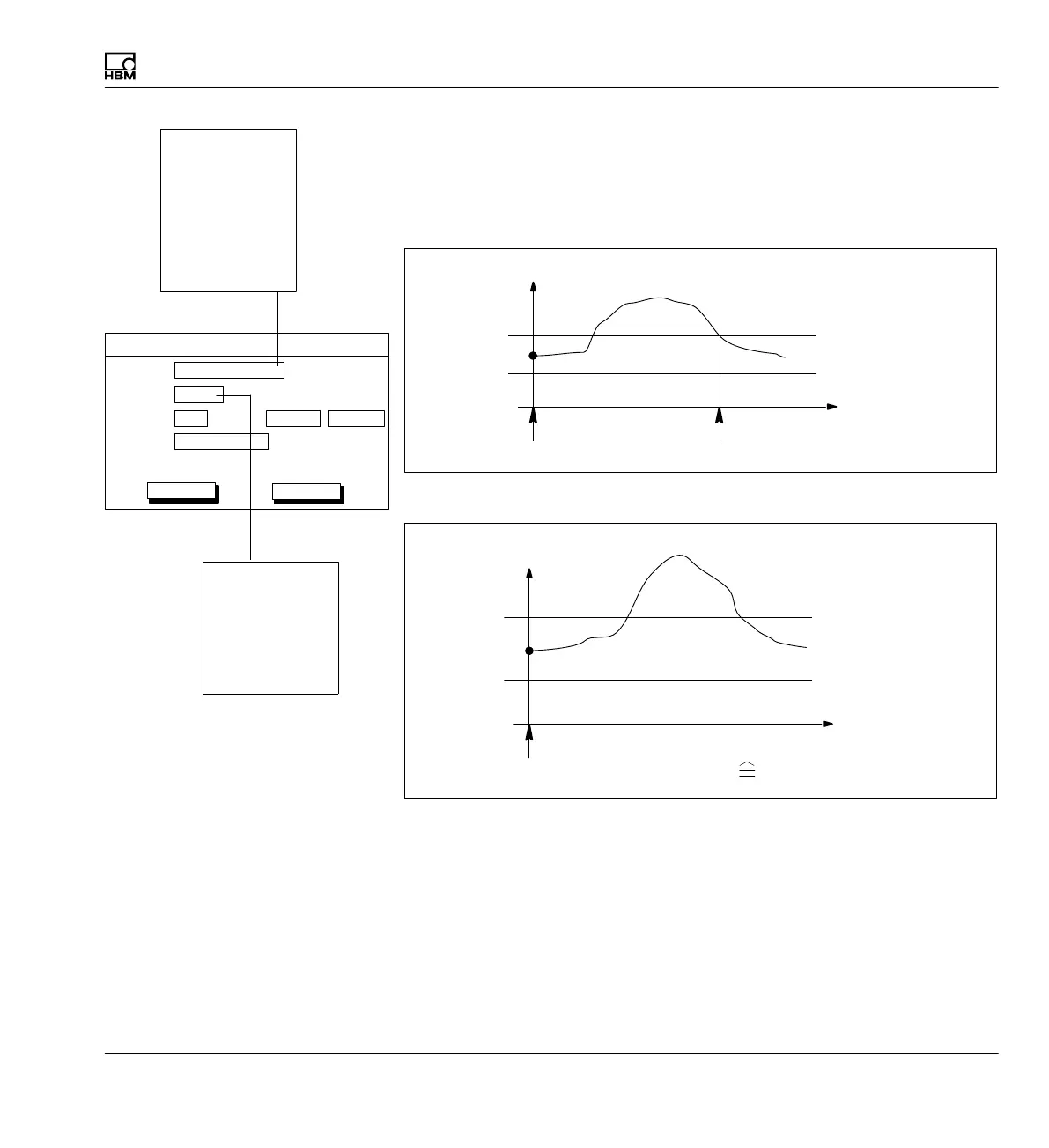

Measured value band: The trigger condition is triggered when the
measurement signal exceeds/undershoots the band limits. The band lies
between "Level 1" and "Level 2".
Example:
Measured value band: outside → inside
Time
Level 2
Start of the recording program
Level 1
Condition met
Example:
Measured value band: within
Time
Level 1
Start of the recording program
Level 2
Condition met
Trigger:
OK
Cancel
Start Trigger 1
Type:
Channel:
Mode:
Level:
Start Trigger 1 
Off 
1 
greater than 
0.000000% ... 0.000000% ...
Gross Signal:
Define trigger
Start Trigger 1
Start Trigger 2
Start Trigger 3
Start Trigger 4
Stop Trigger 1
Stop Trigger 2
Stop Trigger 3
Stop Trigger 4
Start sampling rate trg.
Stop sampling rate trg.
Off
Measured value level
Measured value band
LV1
LV2
LV3
LV4
External trigger
