System
Recording series of tests
MGCplus A0534-30.0 HBM: public 257

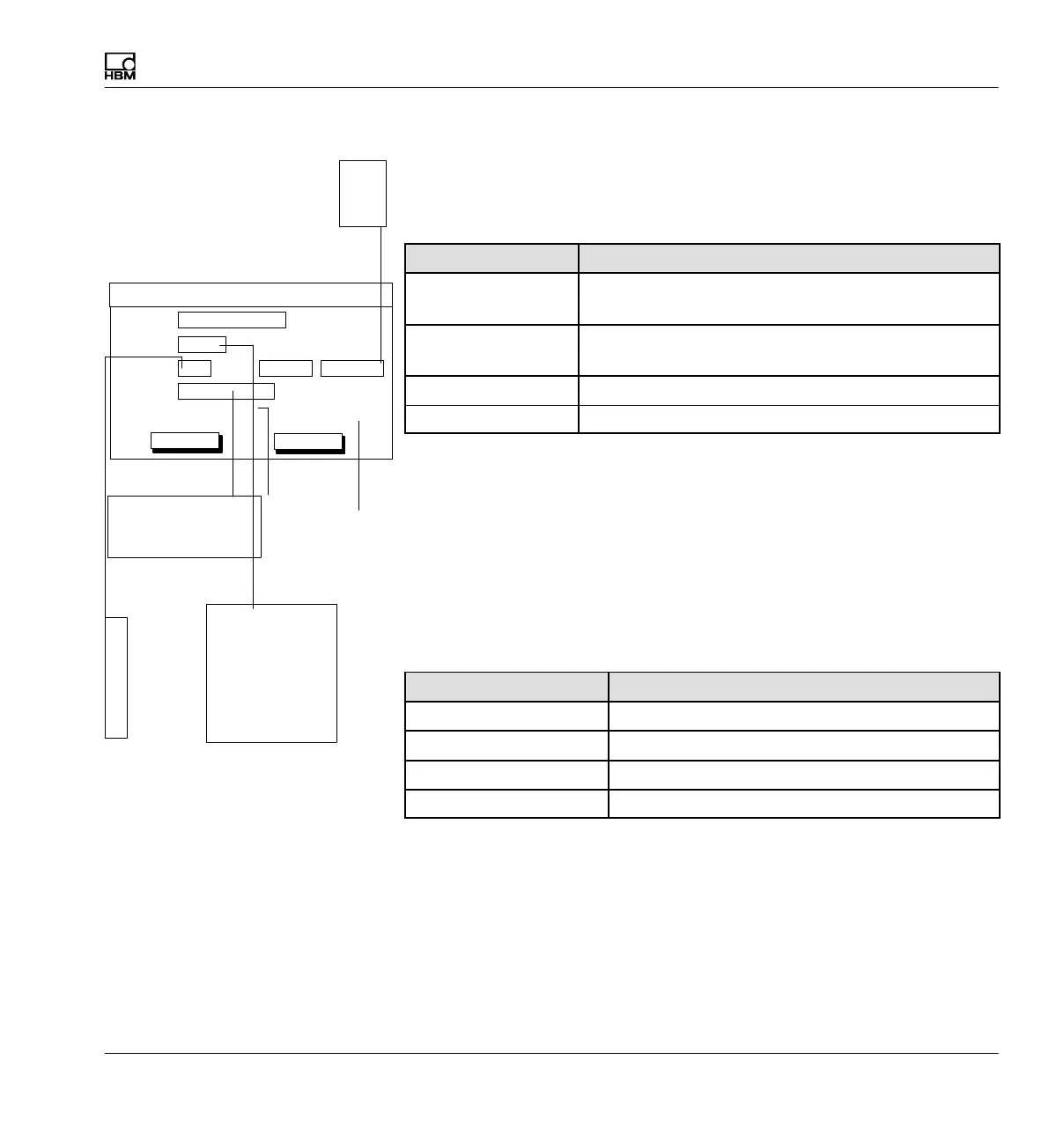

Mode
You can use this mode to define when a trigger condition is met.
You can set different modes depending on which trigger type is set:
Type Mode
Measured value
level
greater; less; less → greater; greater → less
Measured value
band
Inside; outside; outside → inside; inside → outside
Limit value high, low; low → high; high → low
External trigger high, low; low → high; high → low
Example: greater
The trigger condition is only met when the measurement signal is greater
than the trigger level.
Level
The level determines the differential value with which the measurement
signal is compared.
Depending on which type is set, 0, 1 or 2 trigger levels are active.
Type Which level is significant?..
Measured value level Level 1 only
Measured value band Level 1 and level 2
Limit value -
External trigger -
Trigger:
OK
Cancel
Start Trigger 1
Type:
Channel:
Mode:
Level:
Start Trigger 1
Off
1
greater than
0.000000% ... 0.000000% ...
Gross Signal:
Define trigger
Off
Measured value level
Measured value band
LV1
LV2
LV3
LV4
External trigger
Gross
Net
PV1
PV2
greater than
less than
less than greater than
greater than less than
1
2
3
4
5
7
8
Level 1
Level 2
