HBM MGCplus - Page 258

System
Recording series of tests
258 A0534-30.0 HBM: public MGCplus

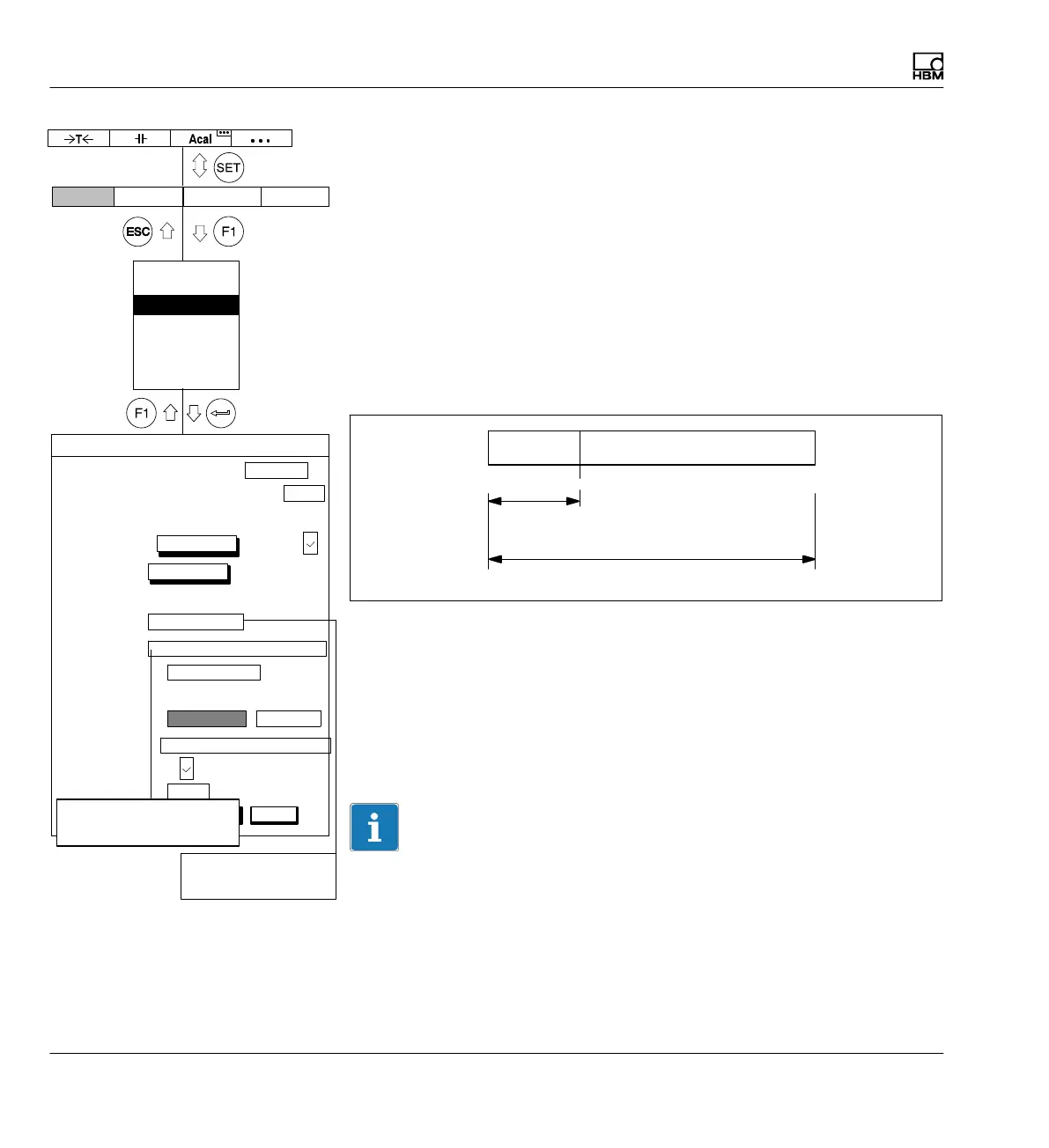

PreTrigger
You can define in the Pre‐trigger input box how many measured values to
record before the trigger event (measurement acquisition is divided into the
pre‐trigger range and the post‐trigger range ). The definition refers to the
"Number" entry field in the settings dialog.
Example:
Number: 1.200
Pre-trigger: 20%
240 measured values are acquired in the pre‐trigger range and 1200-240
= 960 measured values are acquired in the post‐trigger range.
Pre-trigger as %:
-0.8 sec
Post-trigger
3.2 sec
Measurement duration 4 sec
4
Start condition
Immediately: Ignore Start trigger. Recording begins immediately after
the start.
AND‐combined: All start conditions must be met to start recording data.
OR‐combined: Data logging starts when one of the start conditions is
met.
Information
If only 1 trigger is turned on (for example start trigger 1), trigger AND/OR
must be selected (even though no combination is possible).
Number:
Measuring interval/sampling rate:
Measurement periods:
Channels/signals:
Trigger:
PreTrigger:
Start condition:
Stop condition:
Recording to:
Recording information file:
Recording format:
Rec. comments:
Compression factor:
Password
Save/load
Recording
Interface
Print
Language
Time
Display Amplifier OptionsSystem
save load
RECORDING PARAMETERS
300Hz 
Duration: 4.0
define...
Time
channel:
define...
Immediately 
20.00 % ...
Number of measured values 
a file 
MGCP0000.MEA ...
4−byte integer LSB.. MSB 
Autostart:
No
Param.set:
1
1200 ...
1 ...
s... 
change 
480
Immediately
Trigger (AND−combined)
Trigger (OR−combined)
Number of measured values
Trigger (AND−combined)
Trigger (OR−combined)
