Stop condition
Number of measured values: The measurement ends when the number of
measured values specified (entered under
"Number") is reached.
AND‐combined: All stop conditions must be met to stop
recording data.
OR‐combined: Data logging ends when one of the stop
conditions is met.
Recording to
A file: Recording to a file on the hard disk of the
MGCplus. Enter the name under "Recording
file".
Information
The file will not be overwritten when the measurement program is restarted.
Instead the counter will be incremented (last first four letters are retained
and the last four are incremented).
Multiple files: Recording to multiple files on the hard disk of
the MGCplus (max. 999)
Information
If you activate compression, only one file will be created.
Internal RAM: Recording to the internal RAM of the
communication processor
Recording information file
If you selected "Recording to a file", assign the name of the file here.
Number:
Measuring interval/sampling rate:
Measurement periods:
Channels/signals:
Trigger:
PreTrigger:
Start condition:
Stop condition:
Recording to:
Recording information file:
Recording format:
Rec. Comments:
Compression factor:
Password
Save/load
Recording
Interface
Print
Language
Time
Display Amplifier OptionsSystem
save load

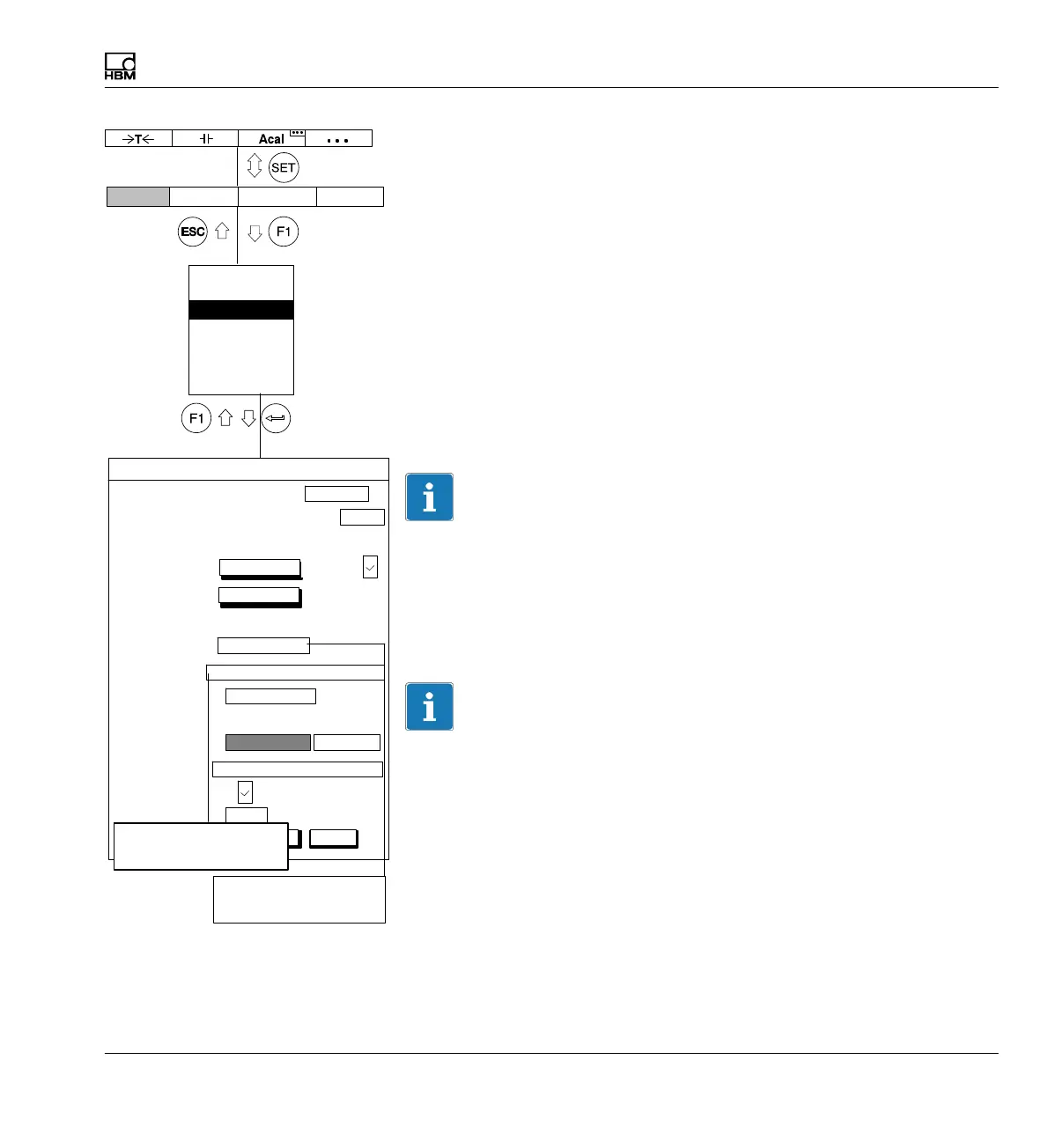

RECORDING PARAMETERS
300Hz 
Duration: 4.0
define...
Time
channel:
define...
Immediately 
20.00 % ...
Number of measured values 
a file 
MGCP0000.MEA ...
4−byte integer LSB.. MSB 
Autostart:
No
Param.set:
1
1200 ...
1 ...
s... 
change 
480
Immediately
Trigger (AND−combined)
Trigger (OR−combined)
Number of measured values
Trigger (AND−combined)
Trigger (OR−combined)
