D1 Servo Drive User Manual Servo Drive Configuration
HIWIN MIKROSYSTEM CORP. 5-27

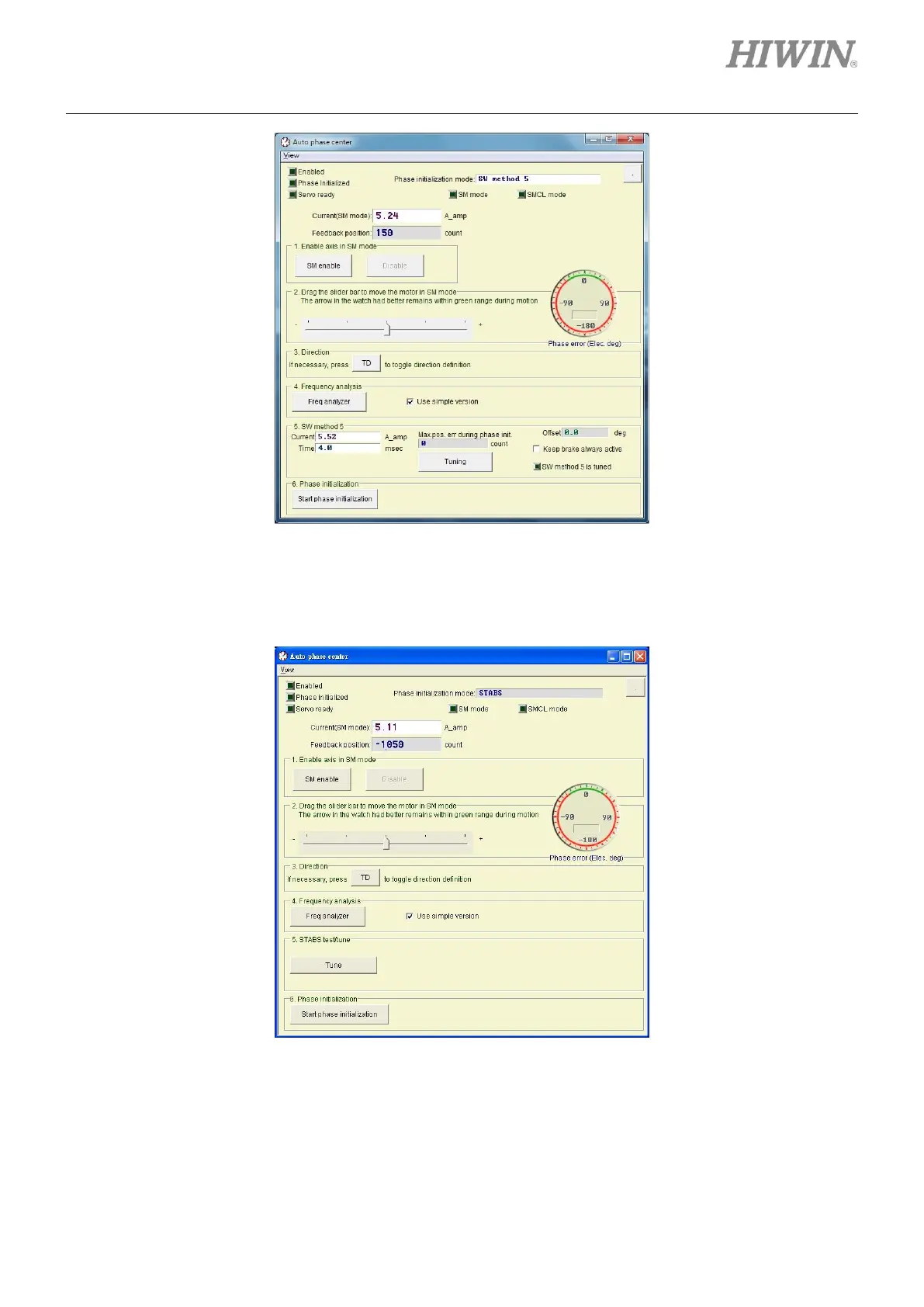

Figure 5.3.3 Phase initialization mode: SW method 5 (without Hall sensor)
(4) Phase initialization mode: STABS
STABS is for using absolute resolver to perform phase initialization.
Figure 5.3.4 Phase initialization mode: STABS
