D1 Servo Drive User Manual Servo Drive Thermal Curve
HIWIN MIKROSYSTEM CORP. 10-3
MD20UE01-2109
◼ Fan specifications
(1) Air flow:153 (CFM)
(2) Static pressure:0.43 (Inch-H2O)
10.2 Heat sink

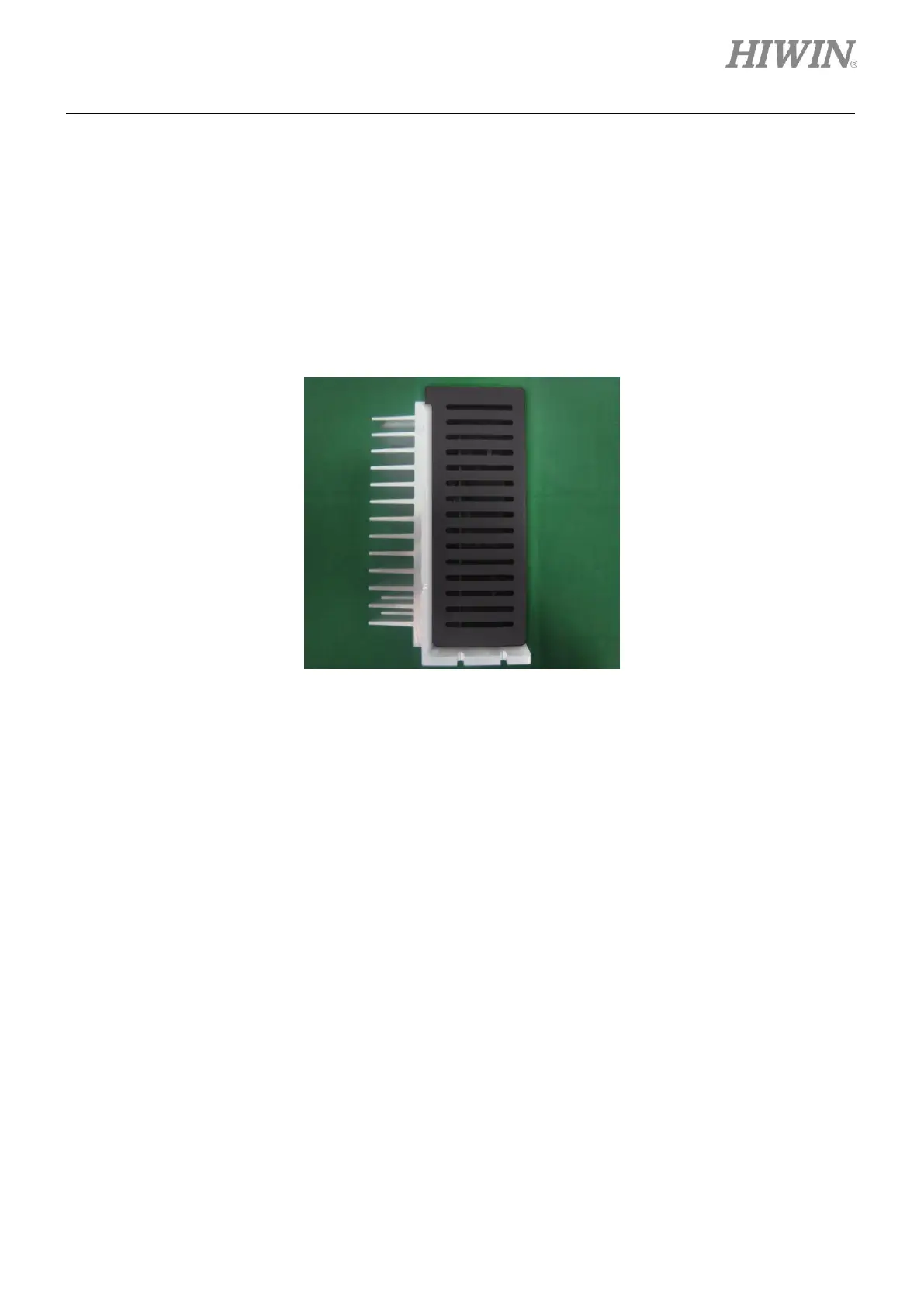

D1-H1 heat sink is shown in figure 10.2.1.
Figure10.2.1
