D1 Servo Drive User Manual Errors And Warnings
HIWIN MIKROSYSTEM CORP. 9-5
9.2 Error and warning log
When D1 servo drive detects error or warning, the error or warning will be displayed in the main window of
Lightening and will be saved in Errors and Warnings Log, as figure 9.2.1. To prevent user from missing
the errors or warnings reported by the servo drive, the errors or warnings occur after power on (24 Vdc)
are saved in Errors and Warnings Log. In Time log tab of Errors and Warnings Log window, errors and
warnings occur after power on are recorded in time sequence. The time when each error or warning
occurs will also be recorded.
Note:
The errors and warnings saved in Errors and Warnings Log are cleared after re-power on.

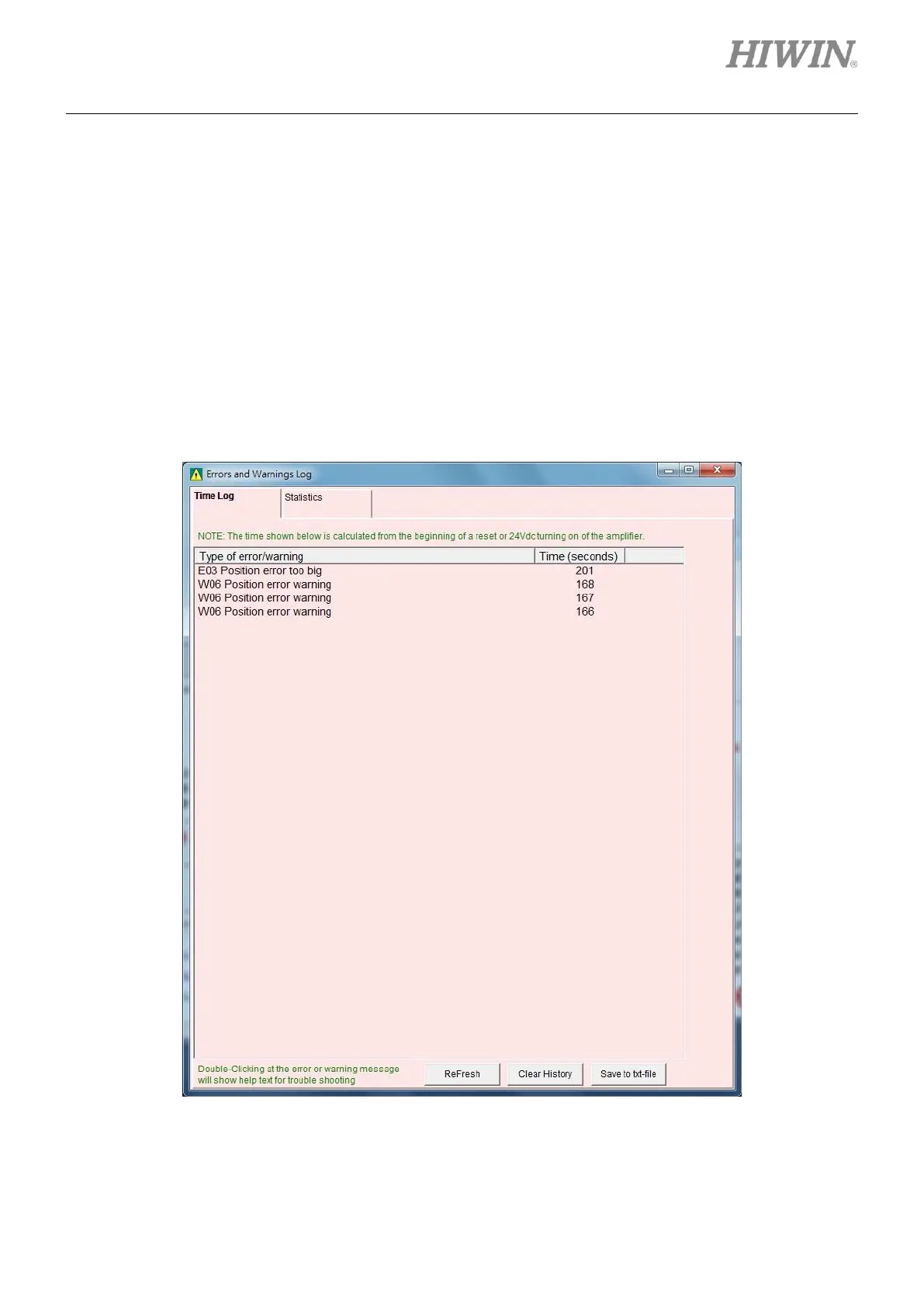

Figure9.2.1
