Protection Function D1 Servo Drive User Manual
8-8 HIWIN MIKROSYSTEM CORP.
8.4 Limit protection
8.4.1 Hardware limit protection
D1 servo drive supports hardware limit protection. Hardware limit usually means the photoelectric switch
or micro switch installed on positioning platform to identify travel distance. Hardware limit switch is usually
a normally-closed sensor. When hardware limit switch is triggered, the servo drive decelerates the motor
by the value set for emergency stop (Dec. kill). At this time, the servo drive only accepts motion command
for moving the motor towards the opposite direction.

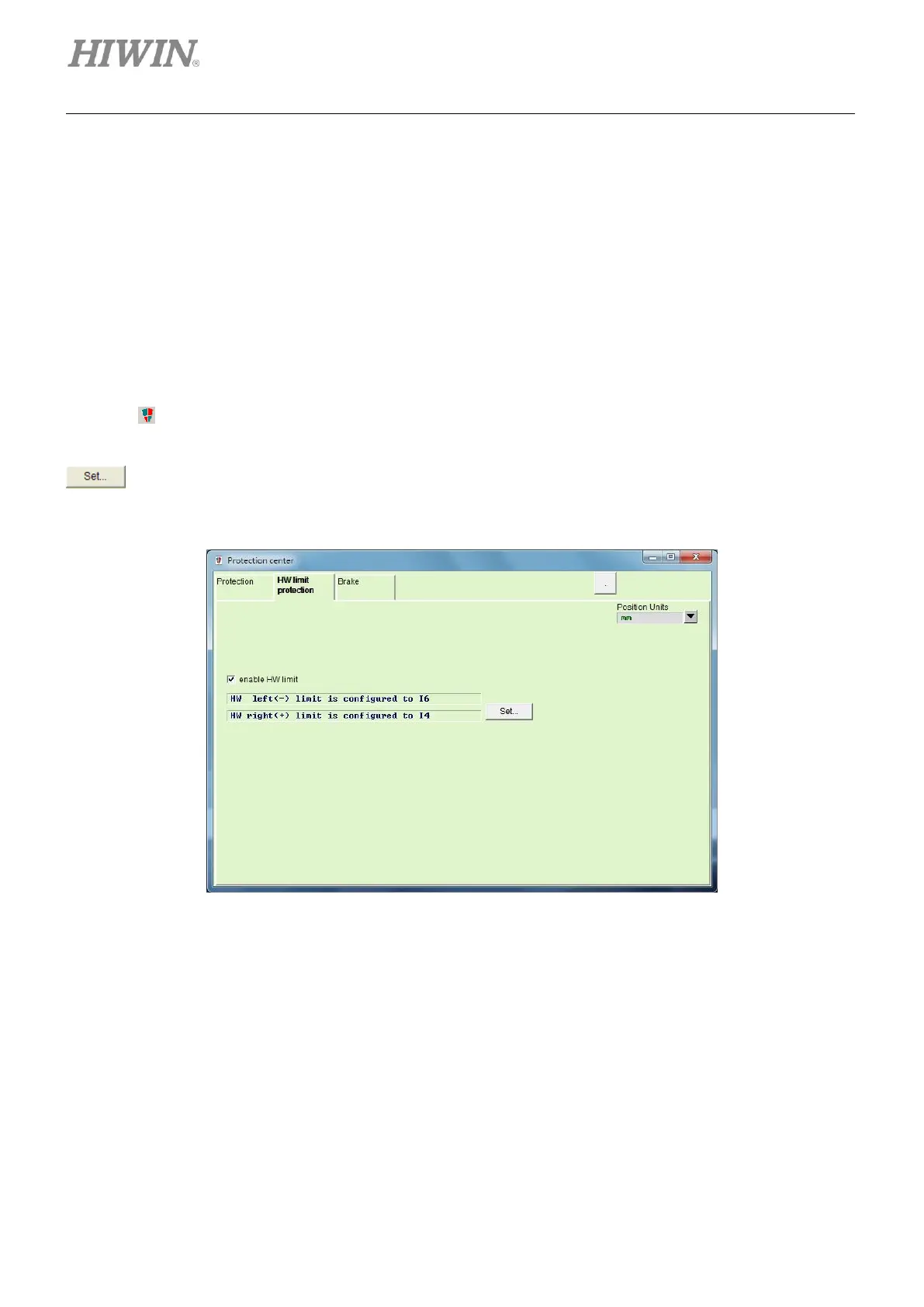

Click on to go to Protection center. Select HW limit protection tab to open the setting page for
hardware limit. Check the checkbox of Enable HW limit to enable hardware limit protection. Click on
to open the setting window of I/O center to set the input pin of hardware limit signal. For setting
method of digital input, please refer to section 5.4.1.
Figure8.4.1.1
