15.1 Common mode filter
User can use common mode filter to decrease common mode interference. The model number of HIWIN
common mode filter for D1 series servo drive is MF-40-S. For its specifications, please refer to the table
below.
Table16.1.1
Item
Specification
Input
Maximum Voltage
373 Vdc
Maximum Current
20 A_amp
Output
Maximum Voltage
373 Vdc
Maximum Current
20 A_amp
Instantaneous Current*/Duration of
Instantaneous Current
40 A_amp / 1 second
Ambient Temperature 
0 to 40°C
Note:
(1) *The maximum input/output instantaneous current can last one second after power on.
(2) When continuous current is higher than 12 A_amp, use external fan for cooling. The fan must have at least
110 CFM.

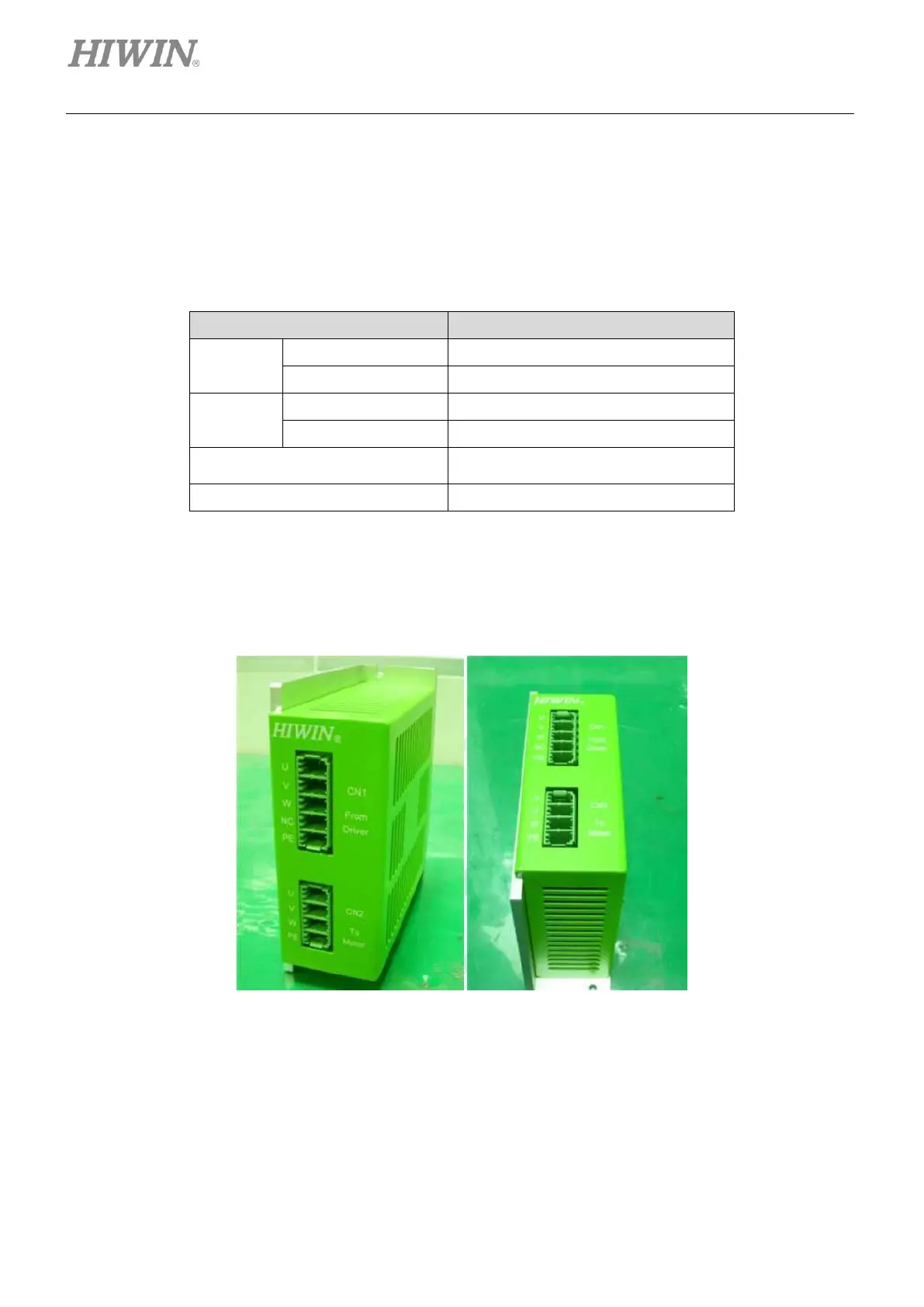

Figure16.1.1
