D1 Servo Drive User Manual Troubleshooting For Interference
HIWIN MIKROSYSTEM CORP. 15-3

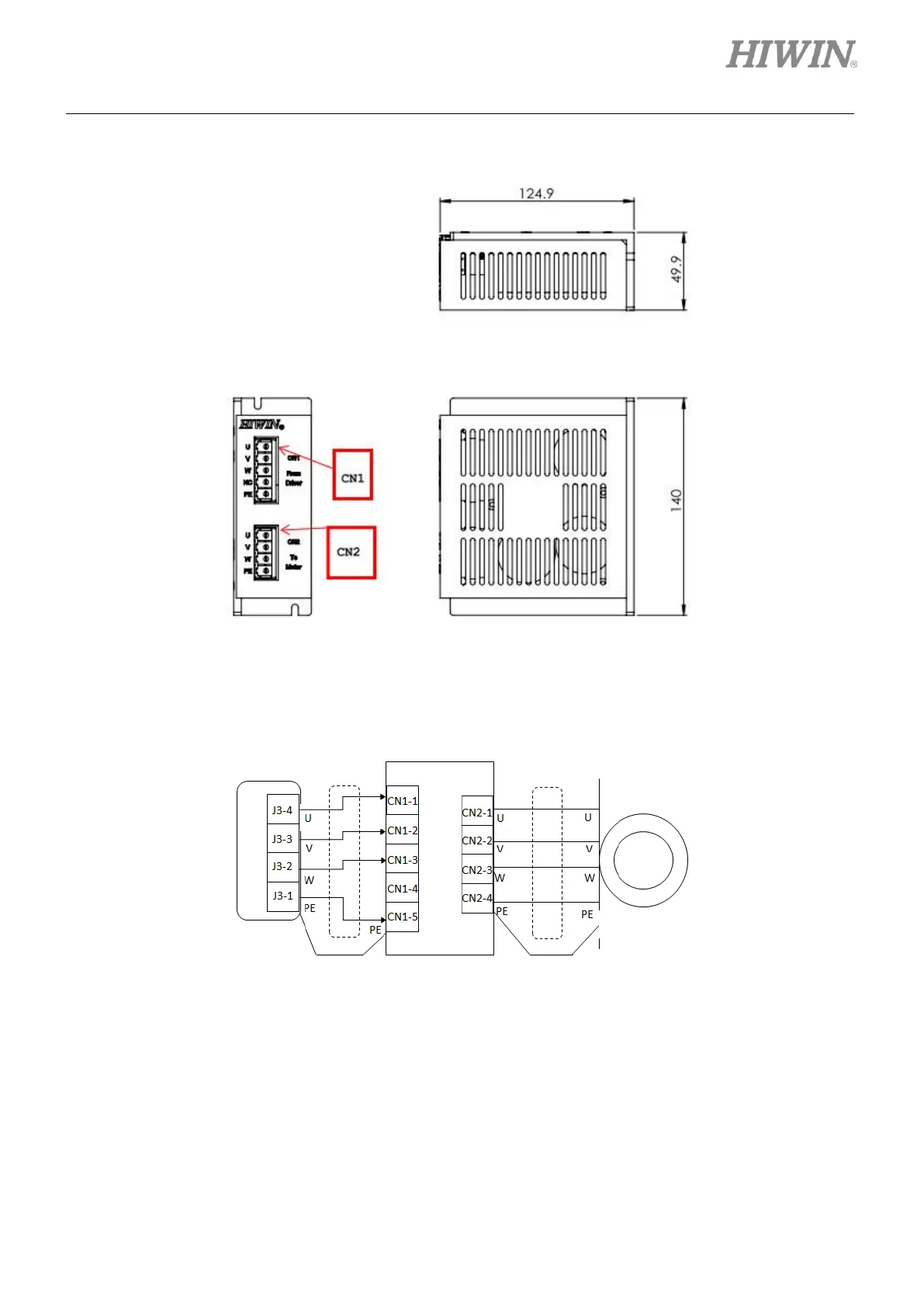

The dimensions of MF-40-S are shown in the figure below.
Figure16.1.2
The wiring of common mode filter, servo drive and motor is shown in the figure below.
Figure16.1.3
◼ Wiring
(1) Insert the wires from the servo drive into the CN1 of the common mode filter.
(2) Connect motor power cable to the CN2 of common mode filter.
