5.8 Setting operation mode via Lightening
5.8.1 Position mode
In position mode, when pulse command is received from controller, the servo drive will move the motor for
a corresponding distance. For further information of position mode, please refer to section 3.1.1. The
setting of position mode should include mode selection, pulse type selection, electronic gear ratio setting
and smooth factor setting. After setting, please save parameters to Flash.
(1) Mode selection
For mode selection, please refer to below.

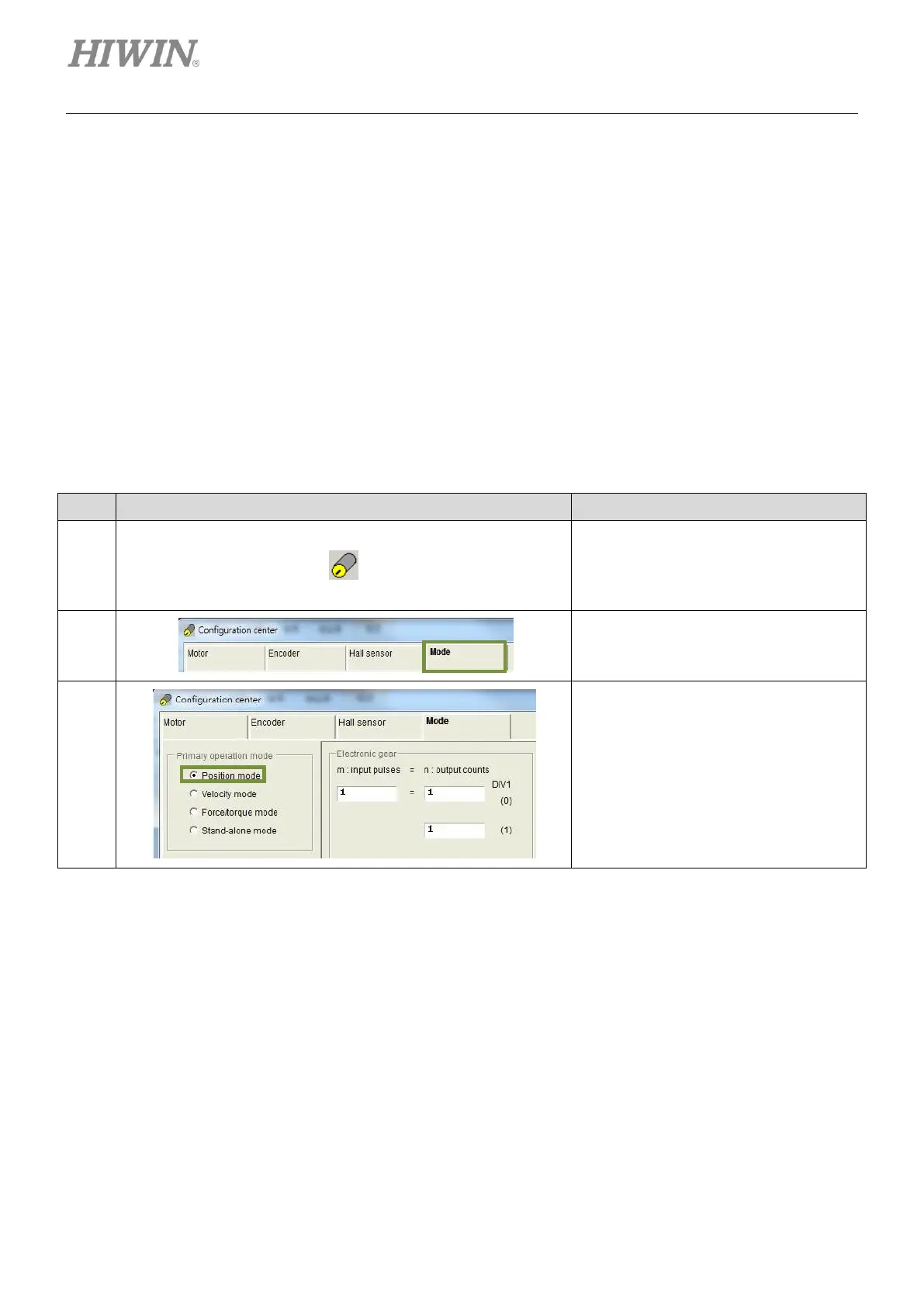

Table5.8.1.1
After Lightening is opened, click on the
icon of Configuration center on the
toolbar. Or click on Conf./Tune on the
menu bar and select Configuration
center.
In Configuration center, click on Mode
tab.
In the setting page of Mode, select
Position mode.
