D1 Servo Drive User Manual Servo Drive Configuration
HIWIN MIKROSYSTEM CORP. 5-49
5.6 Homing
Click on to go to Application center. The setting page for homing is in Homing tab, as figure 5.6.1.
For standard digital encoder and analog encoder, refer to figure 5.6.1. For absolute resolver, refer to
figure 5.6.2.

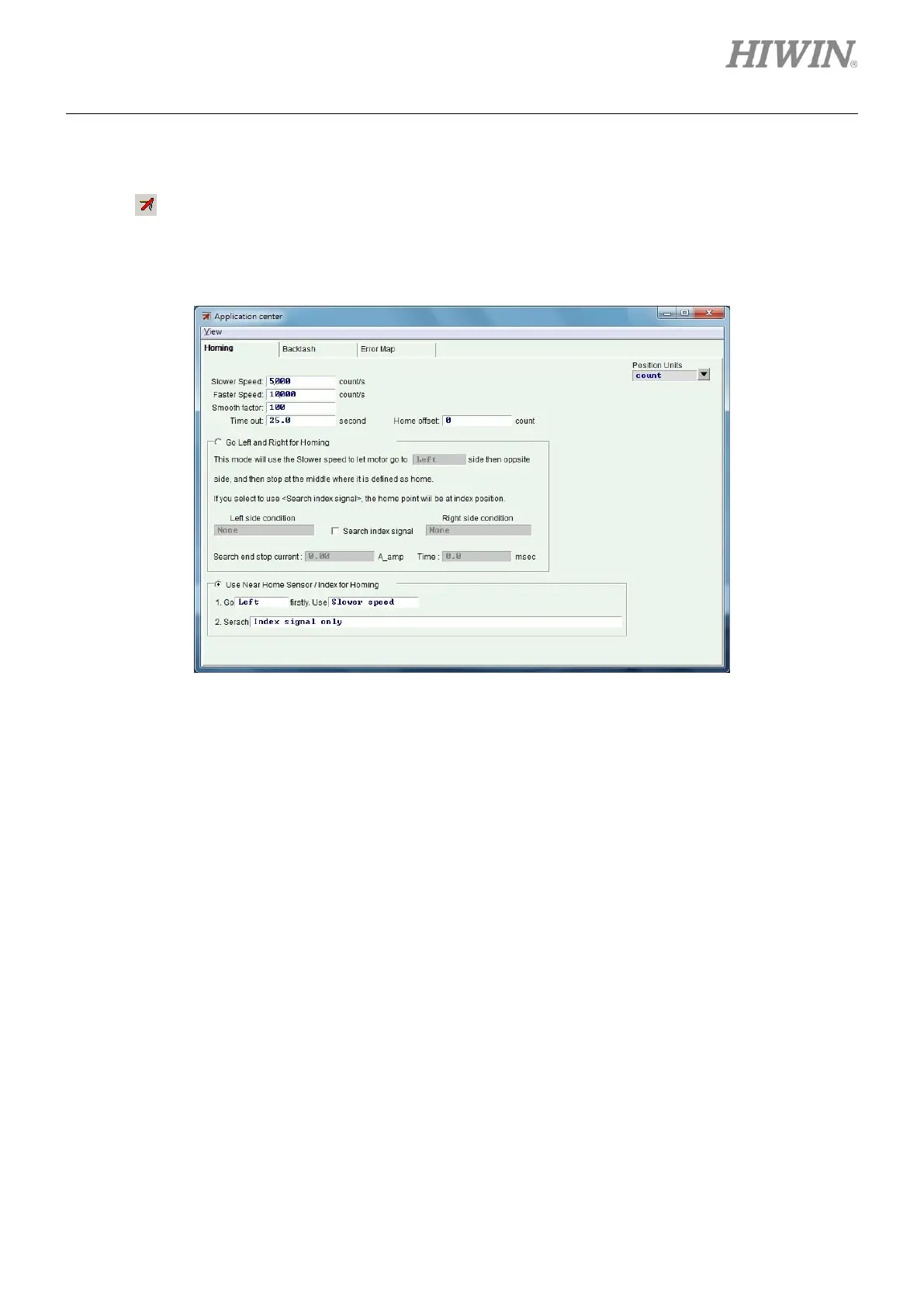

Figure 5.6.1 Homing setting (Standard digital encoder and analog encoder)
