Hiwin D1 - Dimensions

Specifications D1 Servo Drive User Manual
2-8 HIWIN MIKROSYSTEM CORP.
MD20UE01-2109
2.3 Dimensions
The dimensions and mounting holes of D1 and D1 EtherCAT (CoE and mega-ulink) servo drives are
shown in figures 2.3.1 and 2.3.2. The unit is mm. The diameter of the mounting hole is 4 mm.

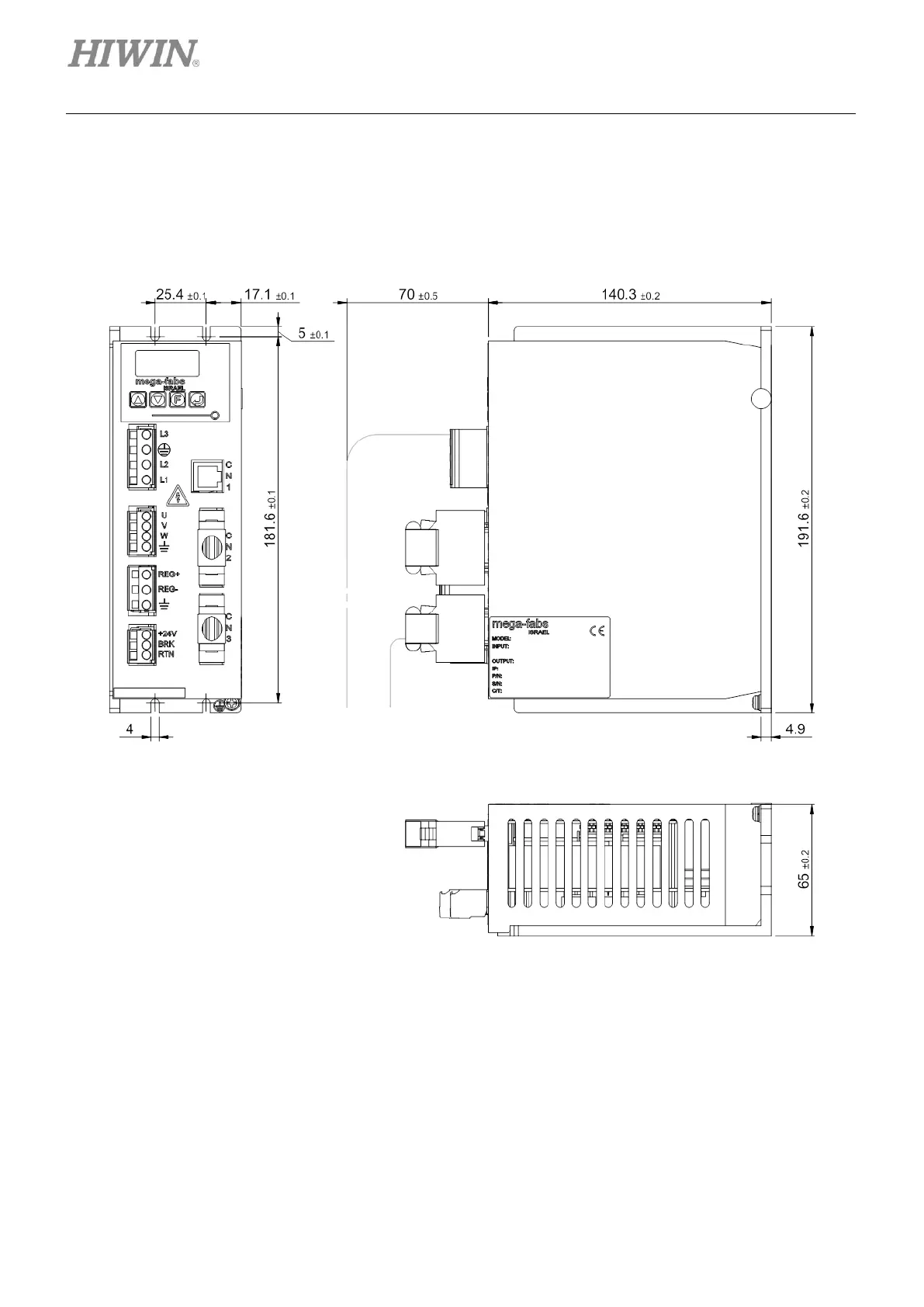

Figure2.3.1 D1 servo drive
D1-DNN03A
