Hiwin D1 - Operating Temperature and Cooling

Servo Drive Thermal Curve D1 Servo Drive User Manual
10-2 HIWIN MIKROSYSTEM CORP.
MD20UE01-2109
10.1 Operating temperature and cooling

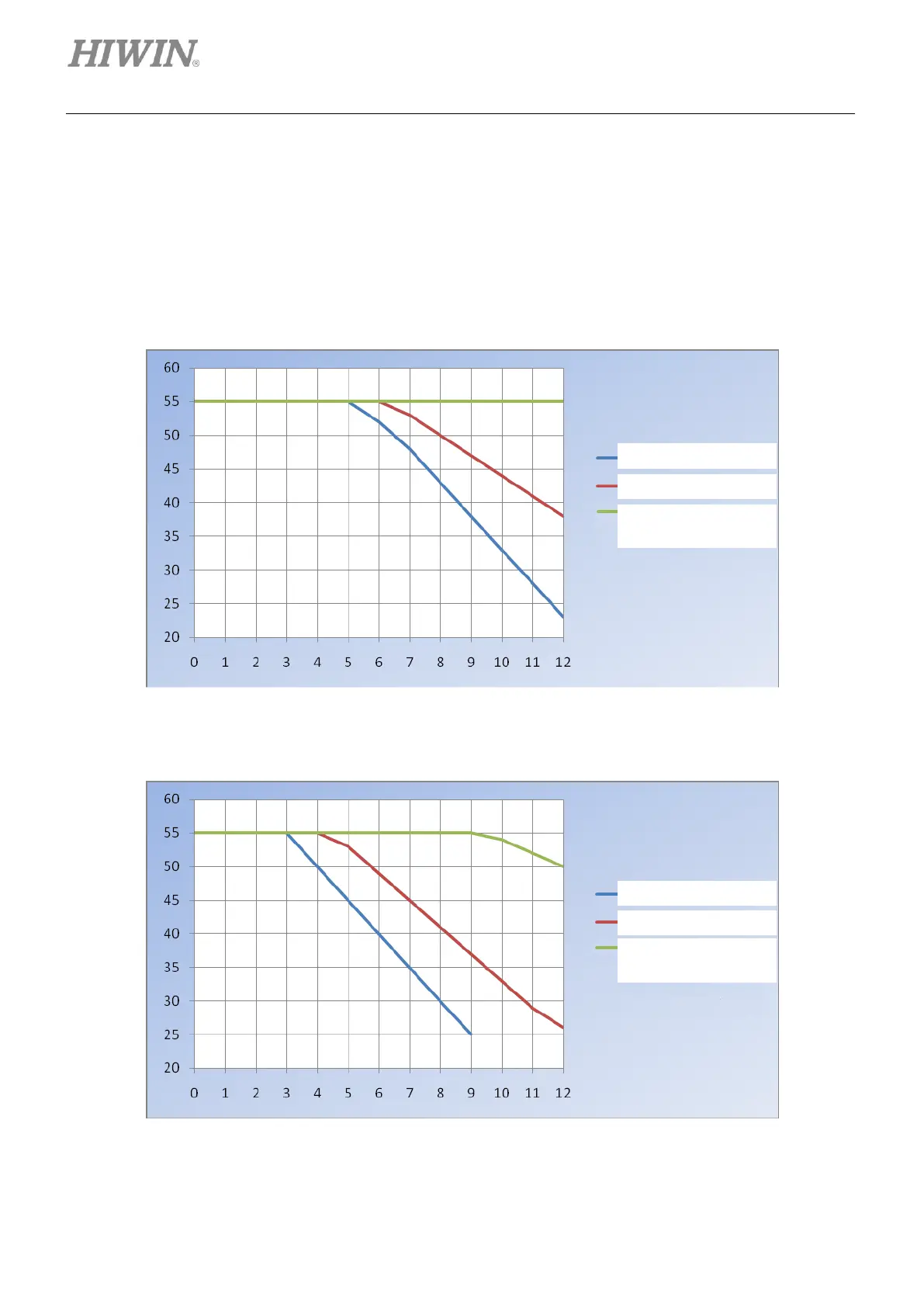

Figures 10.1.1 and 10.1.2 provide the information of D1 servo drive operating in its maximum allowable
ambient temperature with different operating condition and cooling device. The cooling devices include
heat sink D1-H1 and fan. The operating conditions are input voltage 120 Vac and 240 Vac.
◼ Input voltage 120 Vac
Figure10.1.1
◼ Input voltage 240 Vac
Figure10.1.2
Output current (Adc)
Output Current (Adc)
Ambient
Temperature
o
C
Ambient
Temperature
o
C
Without heat sink
With D1-H1 heat sink
With D1-H1 heat sink
and fan
Without heat sink
With D1-H1 heat sink
With D1-H1 heat sink
and fan
