Troubleshooting For Interference D1 Servo Drive User Manual
15-4 HIWIN MIKROSYSTEM CORP.
MD20UE01-2109
A. Filter (CN1) to servo drive
Table16.1.2 The specifications of CN1 connector (input)
Description
5 positions and 7.62 mm pitch
Cable Size
24-8 AWG
Suggested Cable
12 AWG, 600 V
Suggested Tool
Flathead screwdriver
Table16.1.3 The definition of CN1 connector
Pin
Name
Function
1
U
U phase current from the servo drive
2
V
V phase current from the servo drive
3
W
W phase current from the servo drive
4
PE
Frame ground and cable shield
B. Filter (CN2) to motor
Table16.1.4 The specification of CN2 connector (output)
Description
4 positions and 7.62 mm pitch
Cable Size
24-8 AWG
Suggested Cable
12 AWG, 600 V
Suggested Tool
Flathead screwdriver
Table16.1.5 The definition of CN2 connector
Pin
Name
Function
1
U
U phase current to the motor
2
V
V phase current to the motor
3
W
W phase current to the motor
4
NC
No connection
5
PE
Frame ground and cable shield

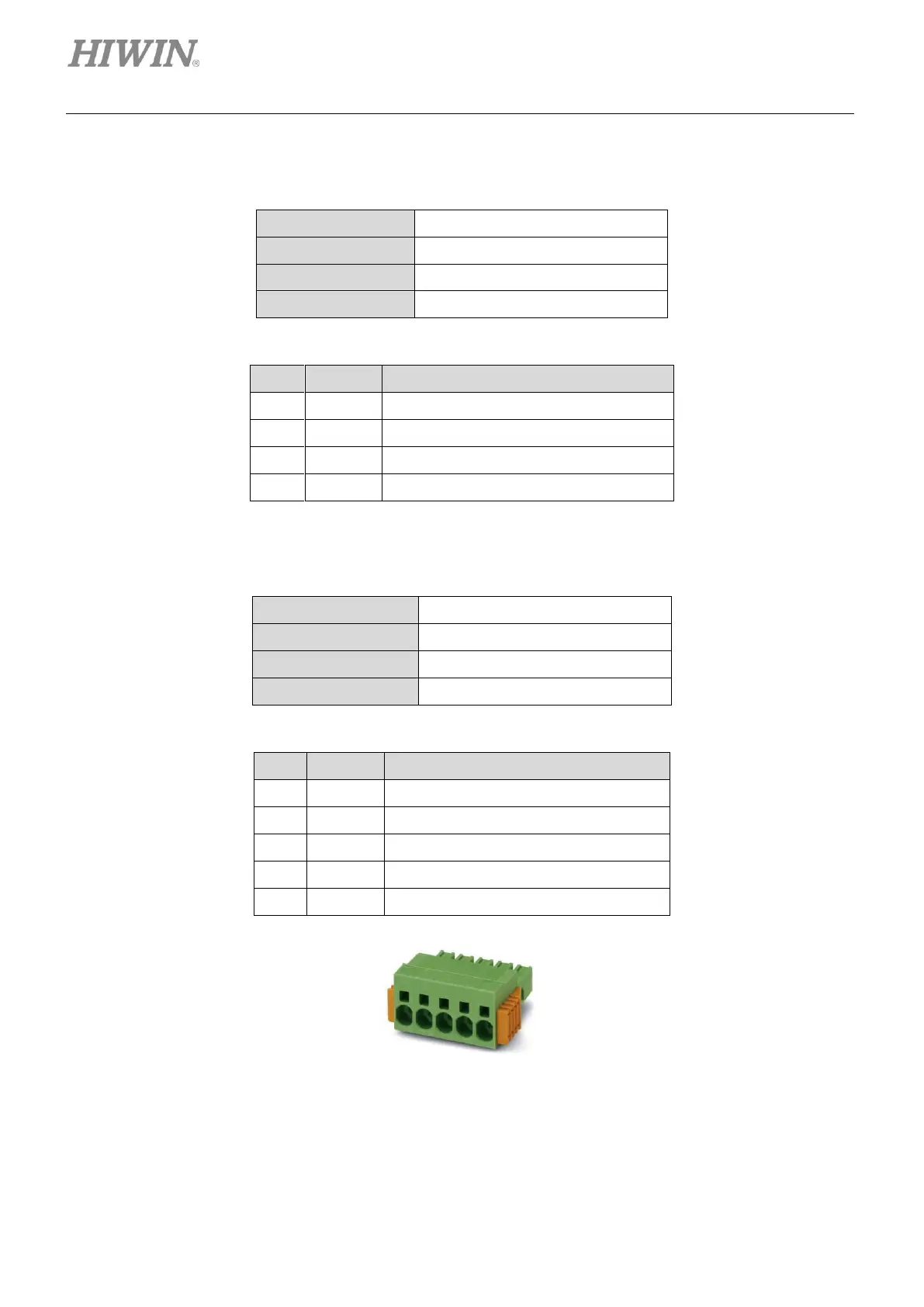

Figure16.1.4 CN2 connector
