Wiring D1 Servo Drive User Manual
4-14 HIWIN MIKROSYSTEM CORP.
MD20UE01-2109

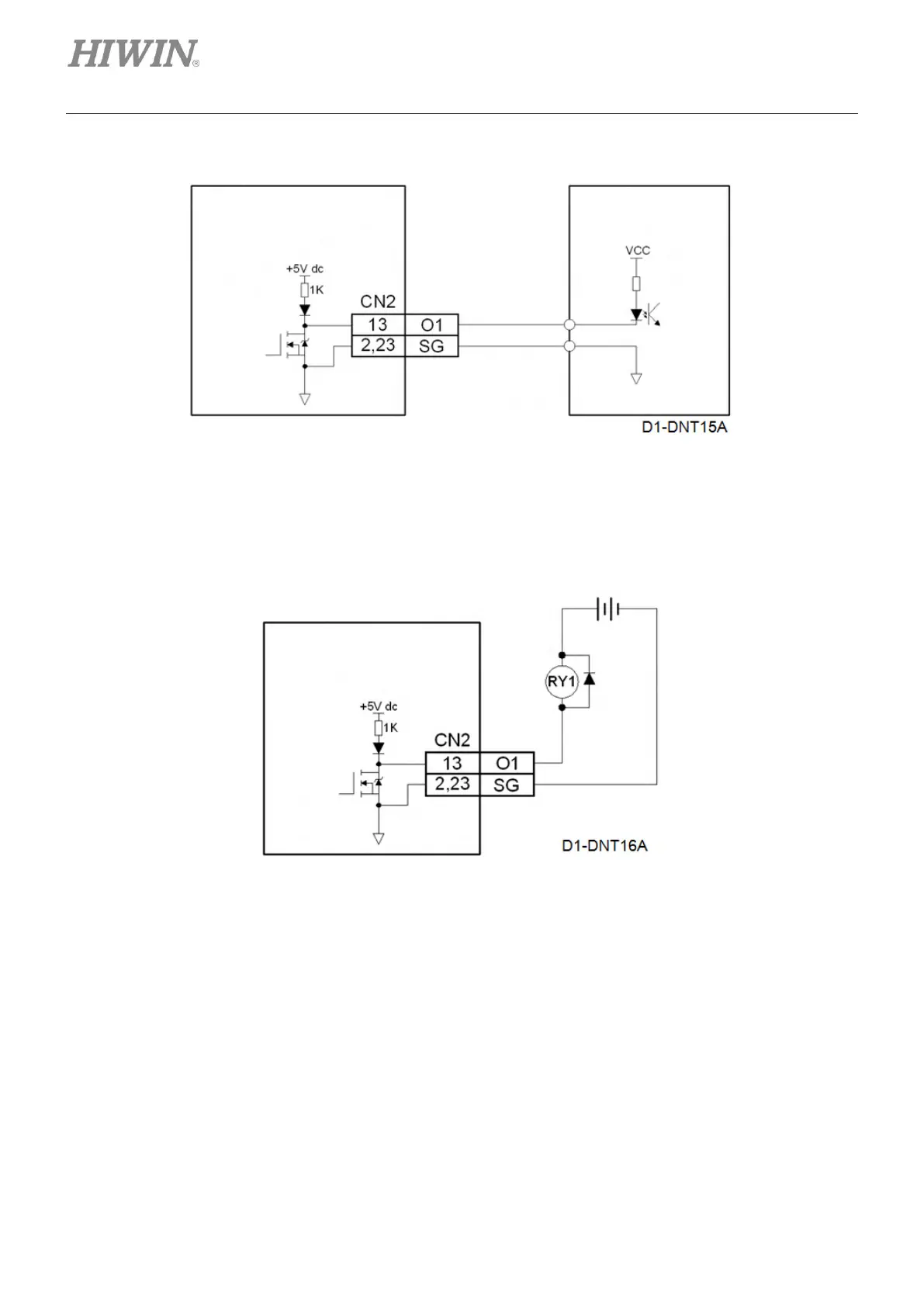

(1) The wiring example for connecting to controller
Figure4.7.2.2
(2) The wiring example for connecting to relay
When a relay is used, please also connect a diode with the relay, please refer to the figure below.
Ensure the direction of the diode is correct to avoid damage to the servo drive.
Figure4.7.2.3
mega-fabs
D1 series servo drive
Controller
mega-fabs
D1 series servo drive
External
DC
power
