D1 Servo Drive User Manual Wiring
HIWIN MIKROSYSTEM CORP. 4-35
MD20UE01-2109
B. EMC kit
Table4.10.27
Product Name
Model
Description
Qty.
D1 EMC
accessory kit
(single-phase)
D1-EMC1
Single-phase filter FN2090-10-06
(Rated current: 10 A, Leakage current: 0.67 mA)
1
EMI Core KCF-130-B
2
D1 EMC
accessory kit
(Three-phase)
D1-EMC2
Three-phase filter FN3258-7-45
(Rated current: 7 A, Leakage current: 33 mA)
1
EMI Core KCF-130-B
2
D1 EMC
accessory kit
(Three-phase)
D1-EMC3
Three-phase filter FN3025HL-20-71
(Rated current: 20 A, Leakage current: 0.4 mA)
1
EMI Core KCF-130-B
2
D1 EMC
accessory kit
(Three-phase)
D1-EMC4
Three-phase filter FN3025HL-10-71
(Rated current: 10 A, Leakage current: 0.4 mA)
1
EMI Core KCF-130-B
2
Note:
Depending on user’s need, EMI core can be used on main power cable, motor power cable, encoder
cable or pulse control cable to reduce interference.

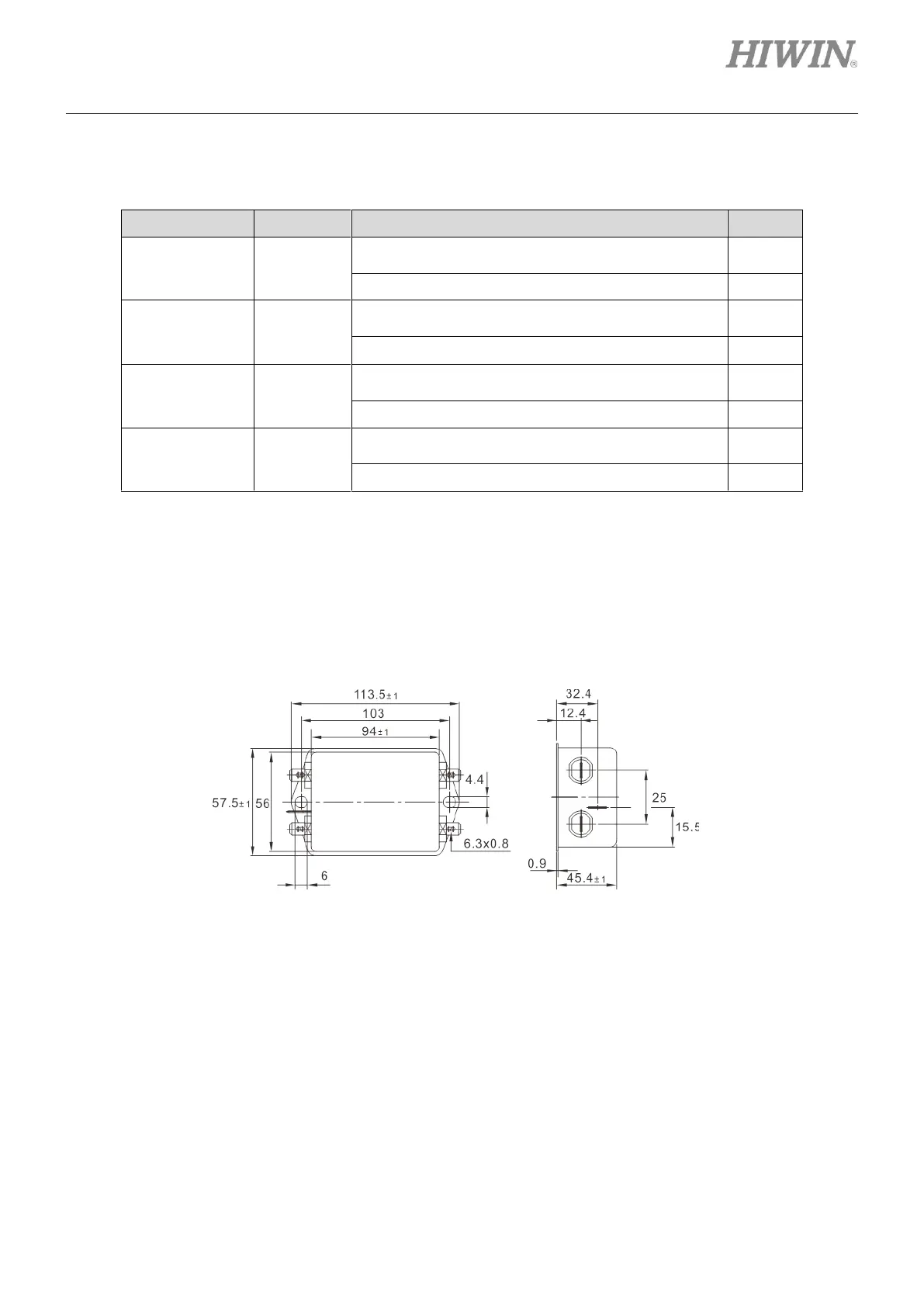

◆ Filter dimensions
(1) D1-EMC1
Figure4.10.1
