Hypertherm MicroEdge - Save Keylog to Disk

To Next Page

To Previous Page

Files 98

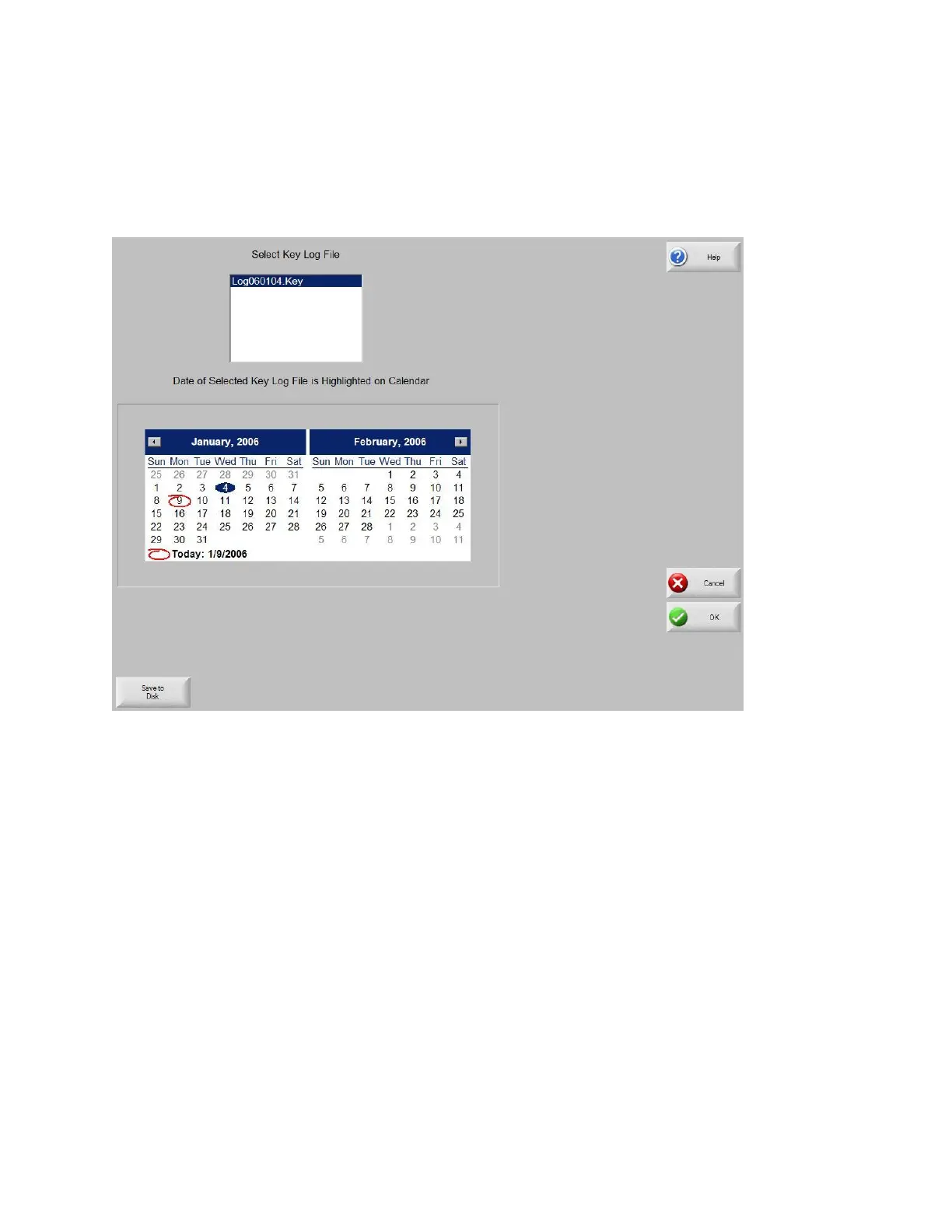

Save KeyLog to Disk

This feature is enabled when the Key Logging feature has been selected in setups.

The Key Logging feature is used as a troubleshooting diagnostic tool to record key presses made at

the control during operation. When enabled, all key presses and application faults will be saved to a

daily log file that may be sent to the control manufacturer for evaluation.
