Hypertherm MicroEdge - Start Corner; Tracing Pitch

Shape Manager 70

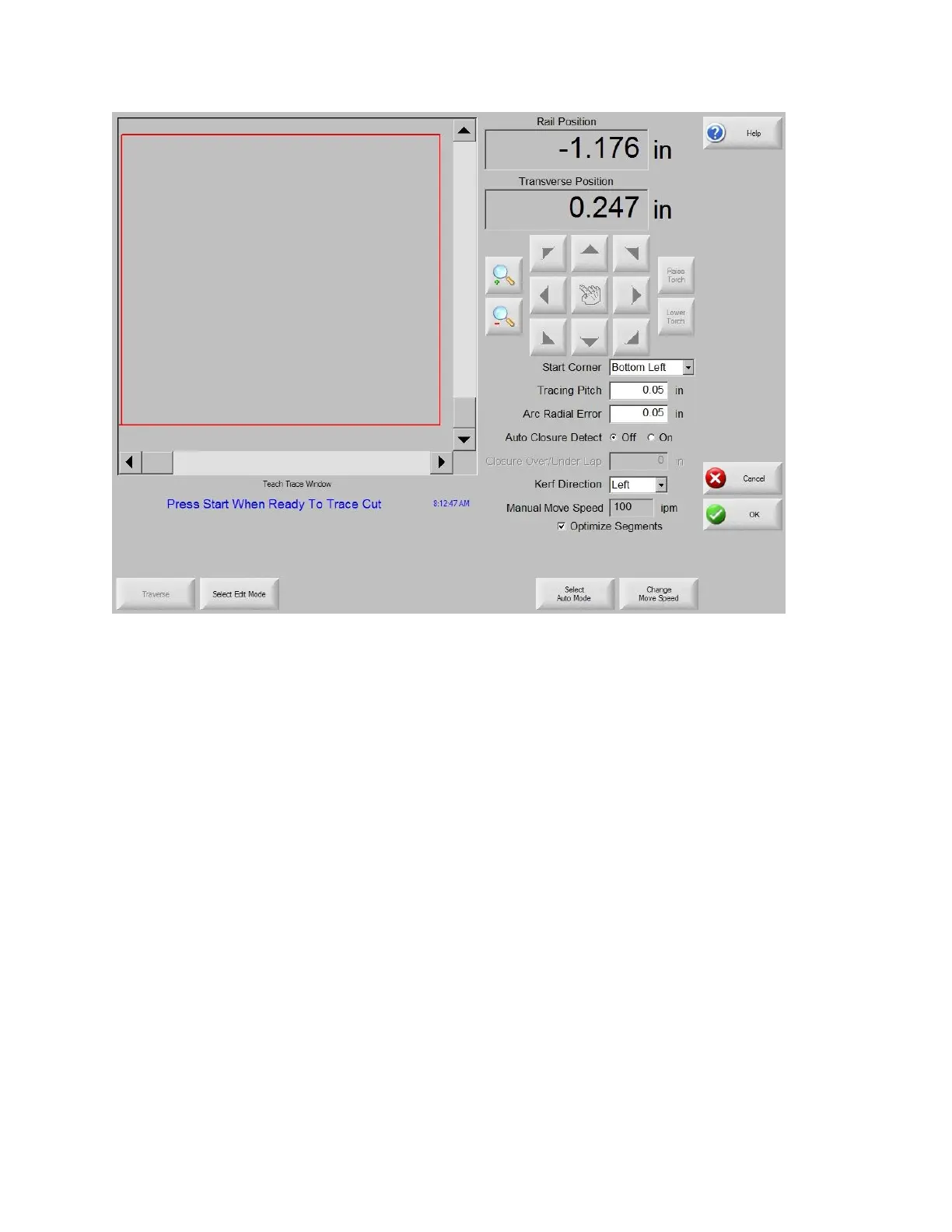

Start Corner
The Start Corner setup parameter allows the user to select where the taught part will begin for proper
viewing on the screen.
Tracing Pitch
This determines how precisely to learn a part. The Tracing Pitch can be adjusted to trade off
resolution versus size of the taught part. This value does not affect the actual position resolution of
the part.
A good starting point for most tracing systems is 0.01”.
