Part Options 245

Repeat

The control has three built-in automatic repeat types: Straight, Staggered, and Nested.

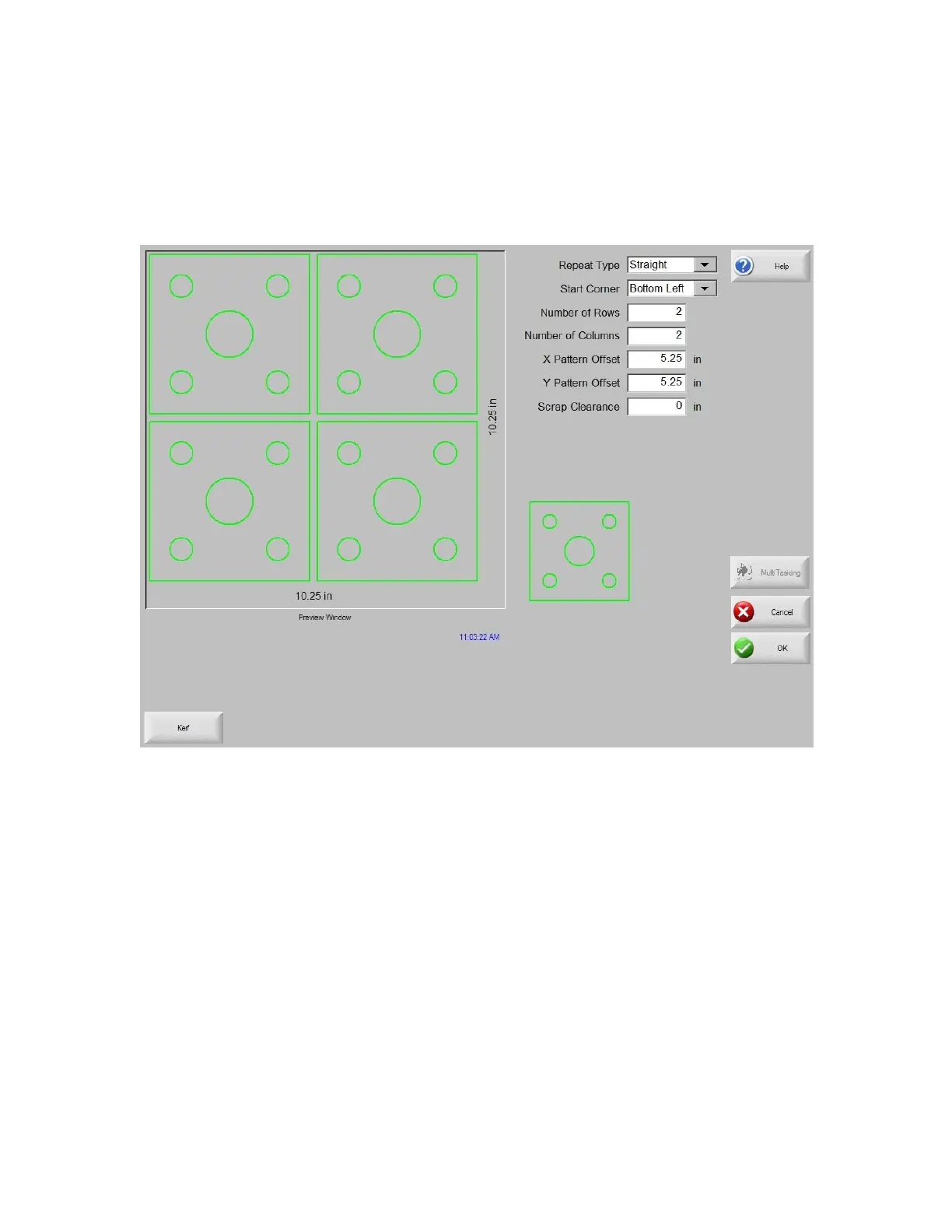

Straight Repeat

Repeat Type

Allows the user to select which type of the three repeats to use: Straight, Staggered or Nested

Start Corner

Allows the user to select which corner of the plate from which to start the shape repeat.

Number of Rows

Program the number of rows to cut.

Number of Columns

Program the number of columns.
