Edge Ti™ 515
Grounding Requirements
WARNING!
To ensure personal safety, proper operation and to reduce electromagnetic interference (EMI), the
PHC system must be properly grounded.
Power cord grounding
The PHC control module must be properly grounded through the power cord according to national or
local electrical codes.
Protective earth ground

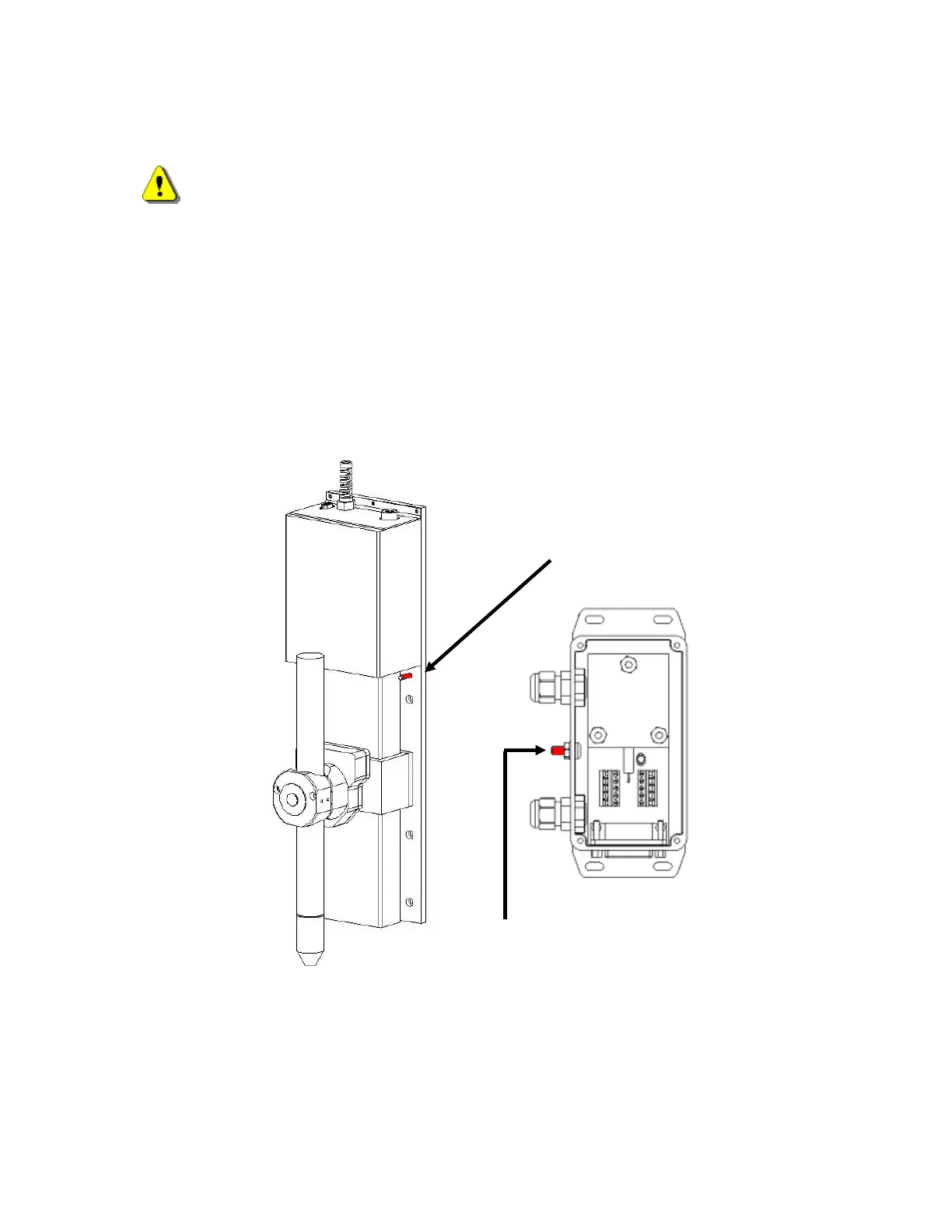

Install protective earth (PE) grounding cables to the PHC components as shown below. Grounding
must comply with national or local electrical requirements.
Note: The PE (Ground) cables must be supplied by the customer.
Ground Lifter
Assembly Here
WORK Connection
(positive ground)
To Next Page
