Password Setups 352
Tools Installed
This setup parameter is used to select or limit the cut modes available to the control operator.
Message Enables
The following pull down box is used to enable and disable system messages. To change the status
of a message, highlight the selected message and press the Space key.
Ready to Start Cutting Message
When enabled, the Ready Message feature will display a ready message when the Start button is
pressed.
Kerf Too Large Warning Message
The Kerf Too Large Warning setup parameter allows the user to disable the “ Kerf Too Large”
warning message. This message is used to notify the user that when a part has been loaded and
translated at the control, a conflict with the cut paths has been detected for the given Kerf value and
that some detail may be lost when cut. Disabling the “Kerf Too Large” message may lead to
unexpected results and allow cutting of invalid parts.

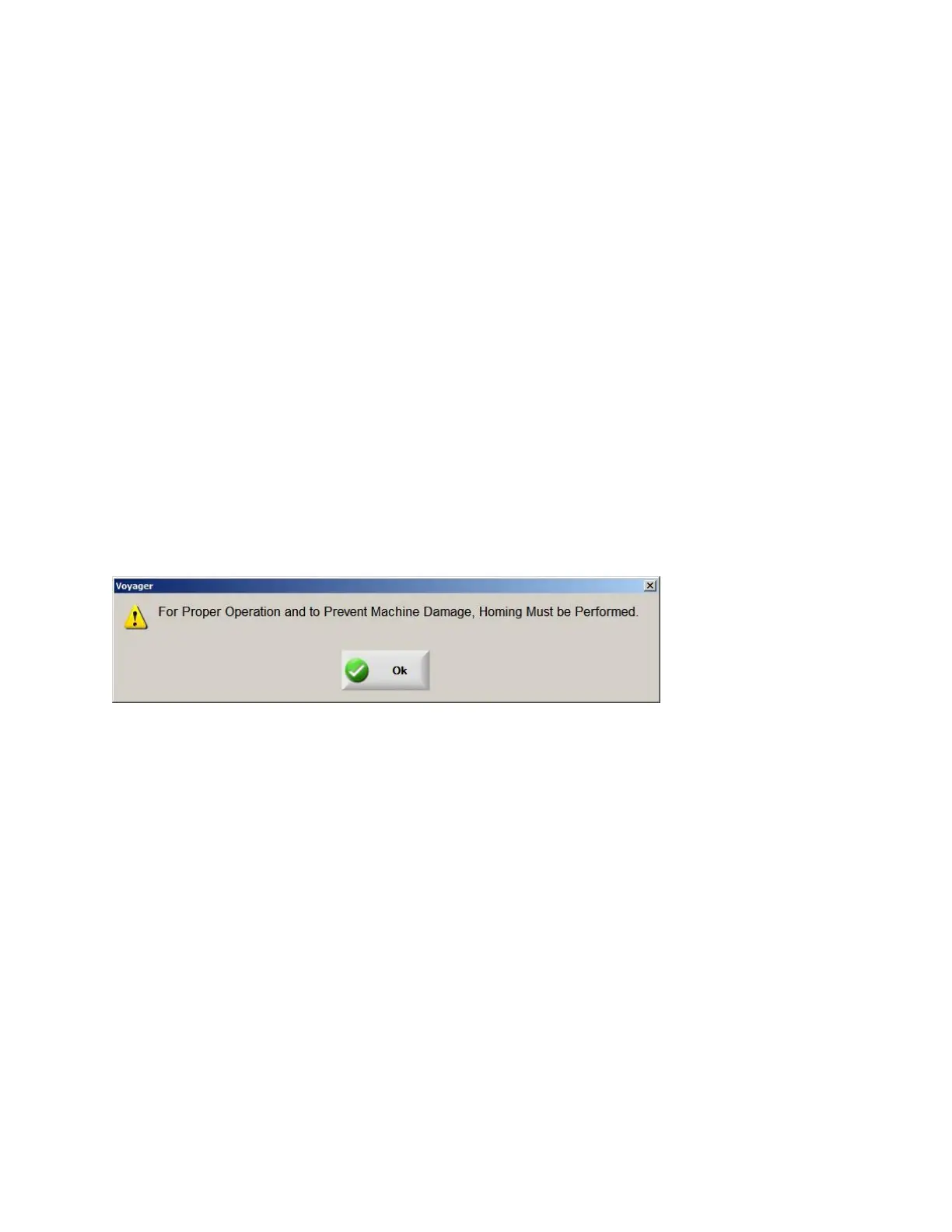

Homing Must Be Performed Message
This message is used to prompt the operator to home the selected axis before motion can begin.
The selected axis must have homing enabled on the axes setup screen.
Values Have been Changed Message
This message is displayed as a confirmation when it has been detected that the values within the
current configuration screen have changed. This ensures that changes are not made in error when
exiting the screen.
Home Torch Height Control Message
This message is used to prompt the operator to home the Sensor™ THC axis at power up and before
motion can begin.
Ready to Final Align Message
This message appears as part of the skew alignment function and is displayed just prior to final
motion to position the tool is executed.
Part Larger than Plate Message
This message is displayed when the dimensions of the part that have been loaded exceed the
selected plate dimensions.
