Automated Plasma Interface 469

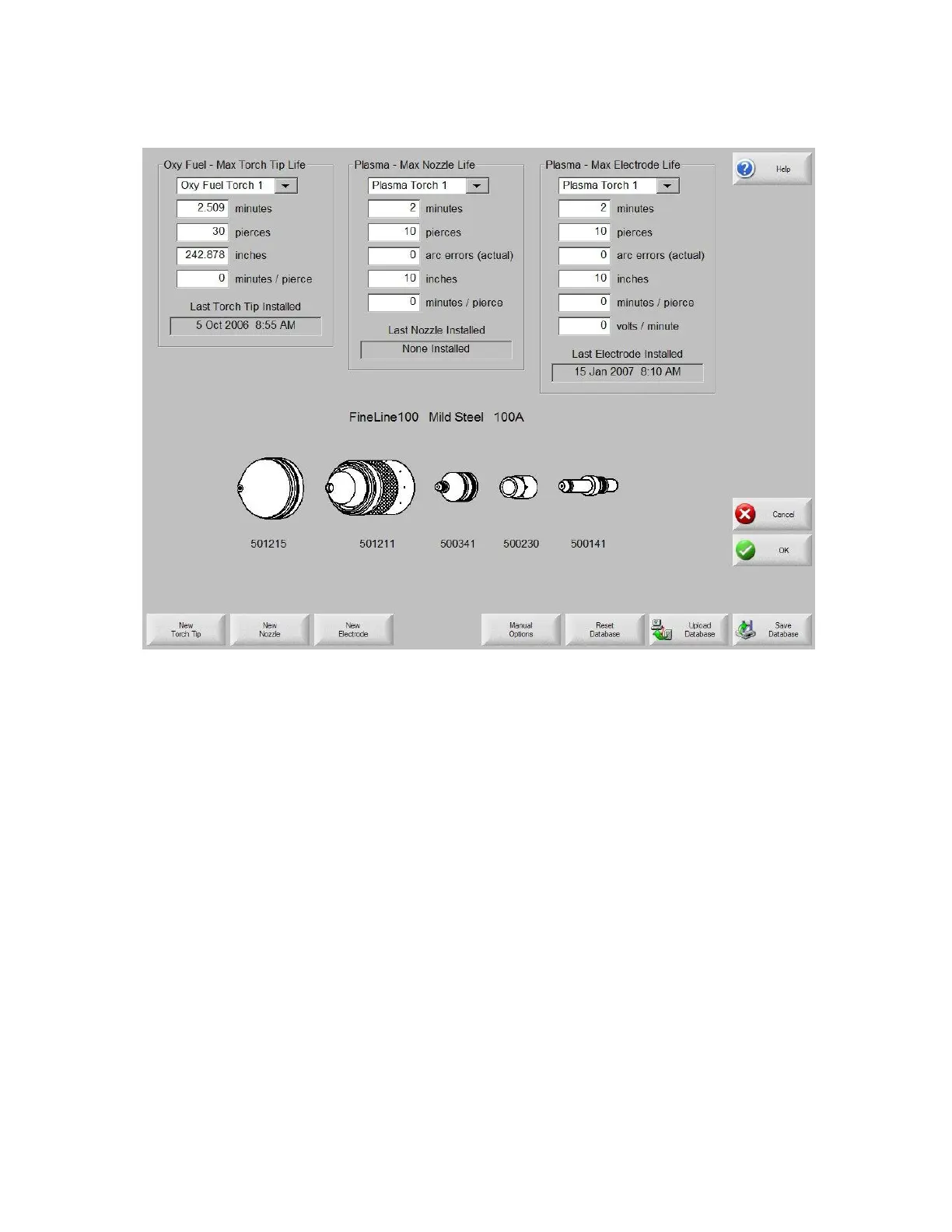

Change Consumable

When the FineLine feature has been enabled, consumable data information may be viewed at the

Change Consumable screen.
