DXF Import 478
Raw DXF Files

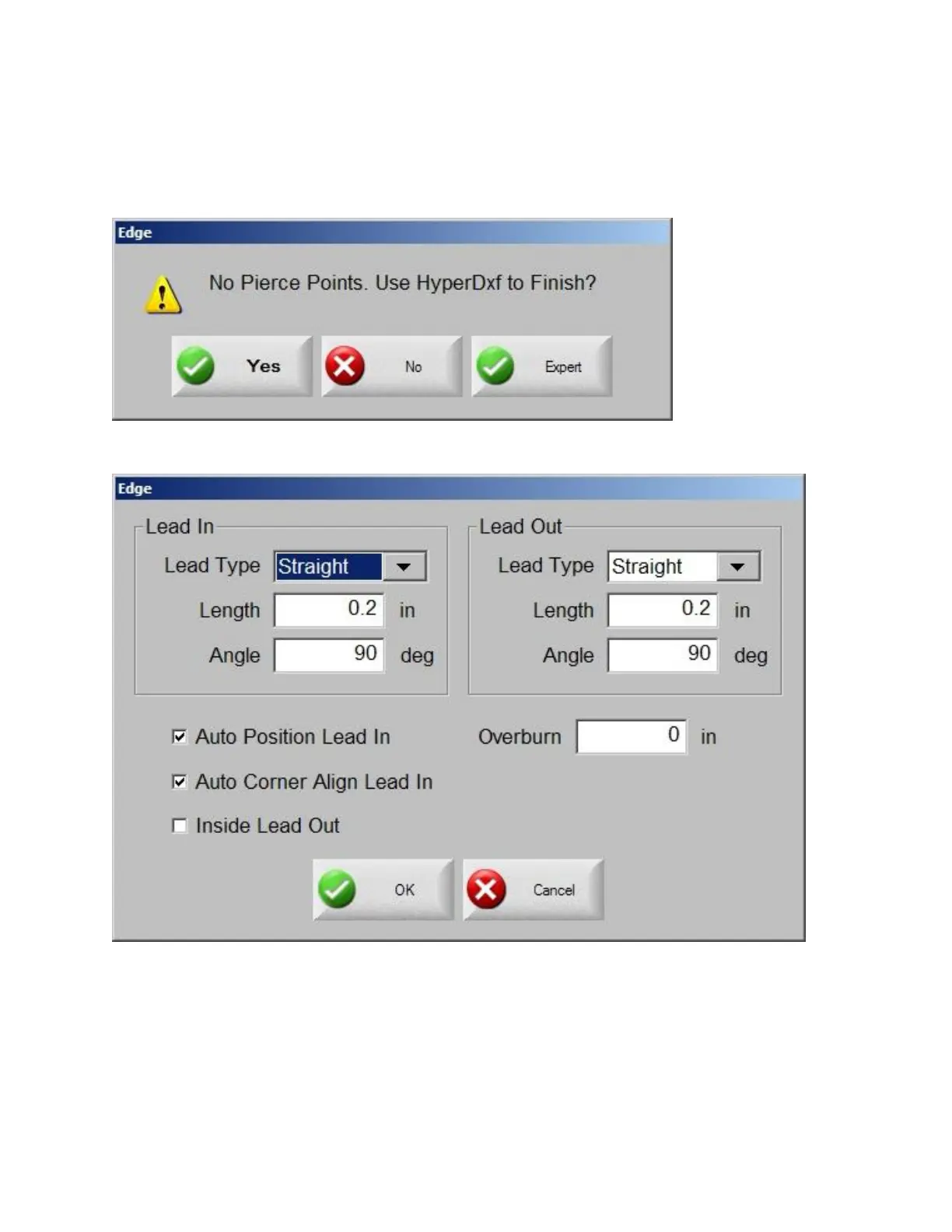

If the DXF file is detected as having no pierce information, the operator will be given the option to use
a Hyper DXF fully automated translation tool to import the file and add lead in and lead out
information.
If the user selects YES, a configuration screen will be displayed to define lead in/ lead out format.
Lead Type
The user may select a Straight or Radius lead in or lead out.
Length / Radius
The lead in or lead out length or radius may be selected.
