Overview 22

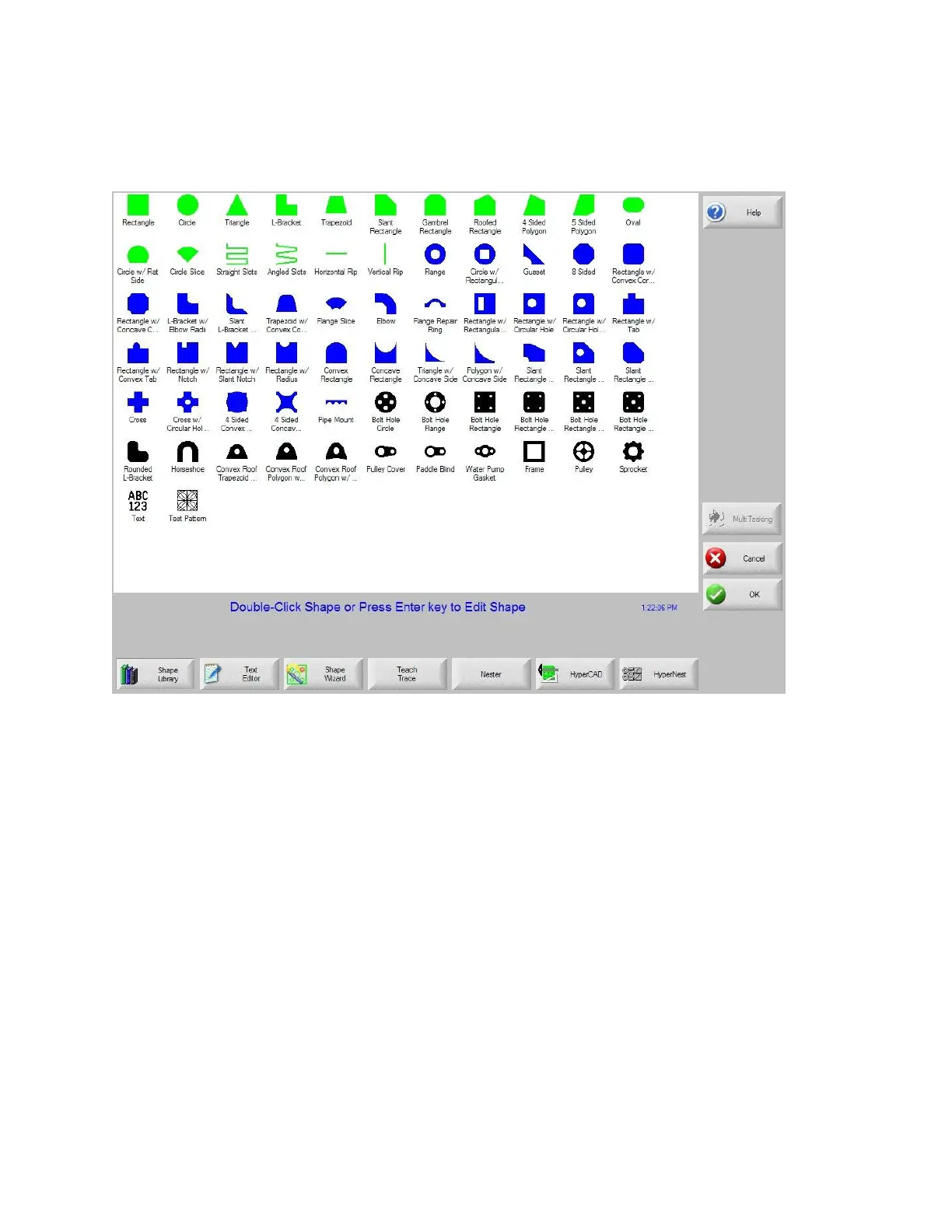

Shape Manager Screen
The Shape Manager screen is used to retrieve a part from the Shape Library and edit part files.
Shape Library
Brings up the built-in library of 68 simple shapes.
Text Editor
Enters the full screen ASCII text editor. The current part in memory is loaded, allowing direct editing
of the selected part program.
Shape Wizard
Enters into the ShapeWizard
®
a graphical editor window. ShapeWizard
®
allows direct editing of the
selected part program using an easy to use graphical interface to view changes as they are made.
Teach Trace
Enters the trace-teach menu, where with an optional tracing system, you can digitize a template.
Nester
