Voyager™ III 519

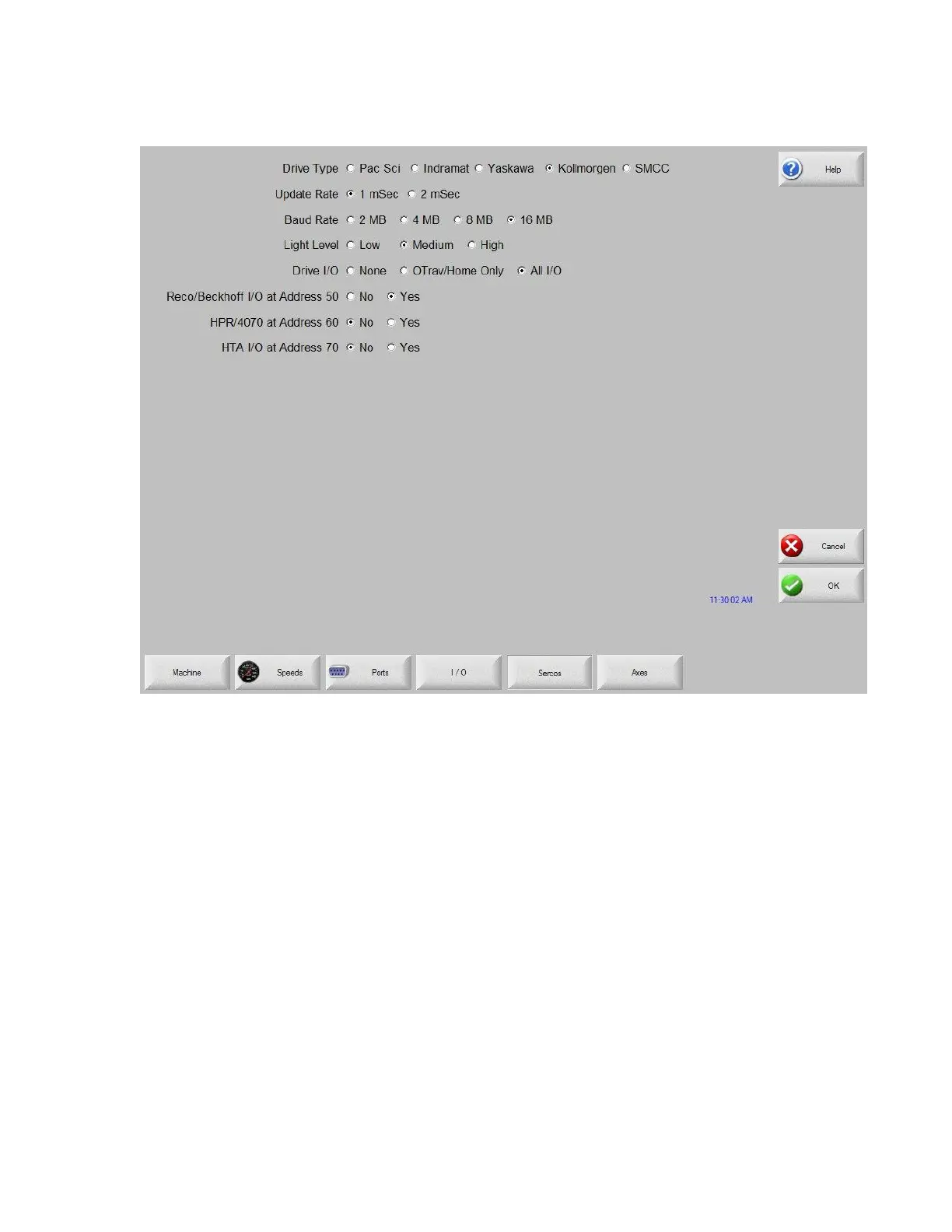

Setups

Drive Type

The manufacturer of the SERCOS style drive being used would be selected. This allows proper

operation and tuning parameters to be available. SMCC is the default setting for Voyager III.

Update Rate

The update rate for the ring may be selected for motion and I/O. One millisecond is the default

setting for Voyager III.

Baud Rate

Communication rate for the ring may be selected. 16 Mbaud is the default setting for Voyager III.
